Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
7
5

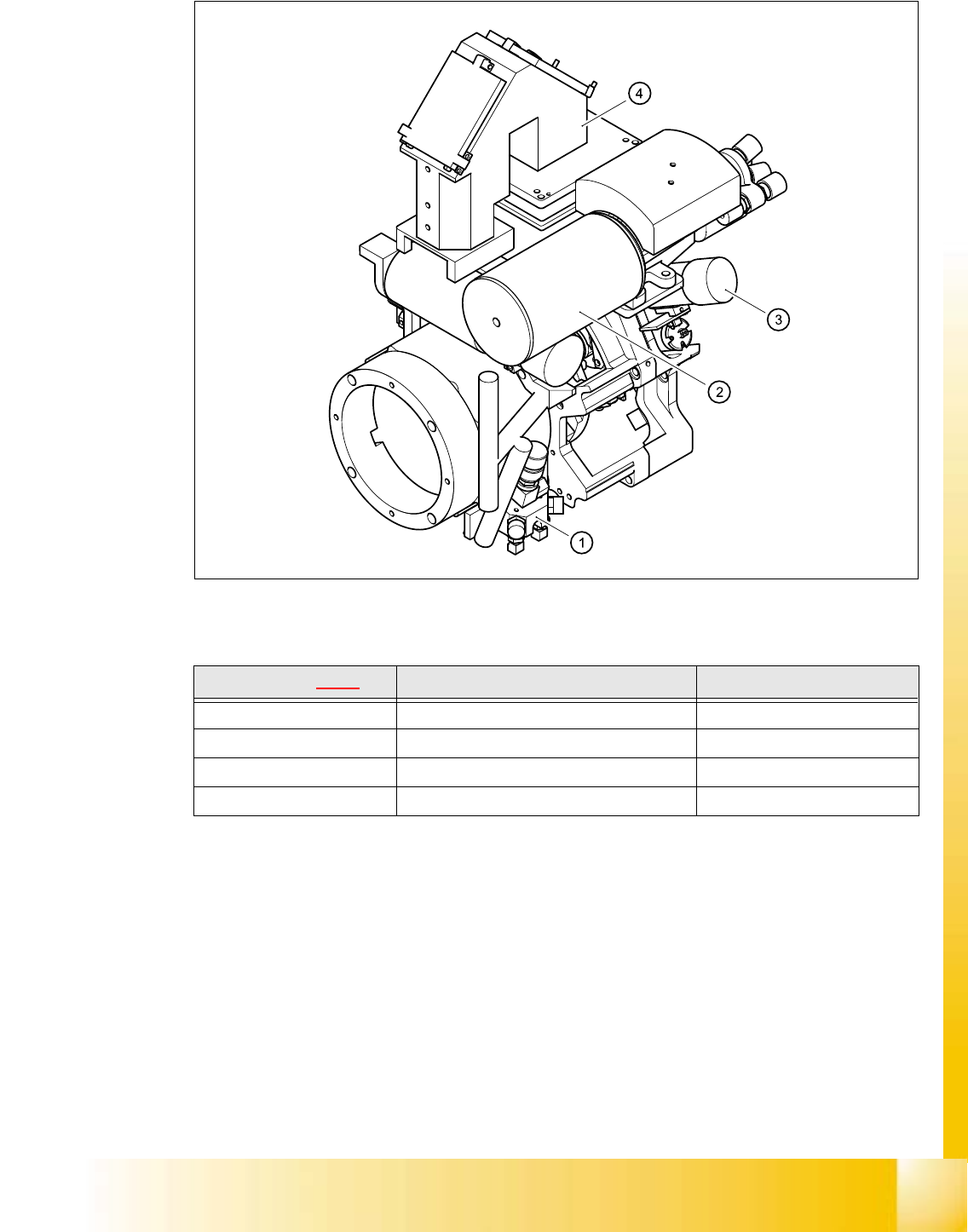

Fig. 5.1 - 3 DLM1 revolver head - parts overview 2
Item in Fig. 5.1 - 3 Designation Item no.
1 Forced air unit / DLM1 00335984-01
2 Silencer 00320964-01
3 Turning station / DLM1 00341780-01
424
x24 component camera KST 00336791-02
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
8
5

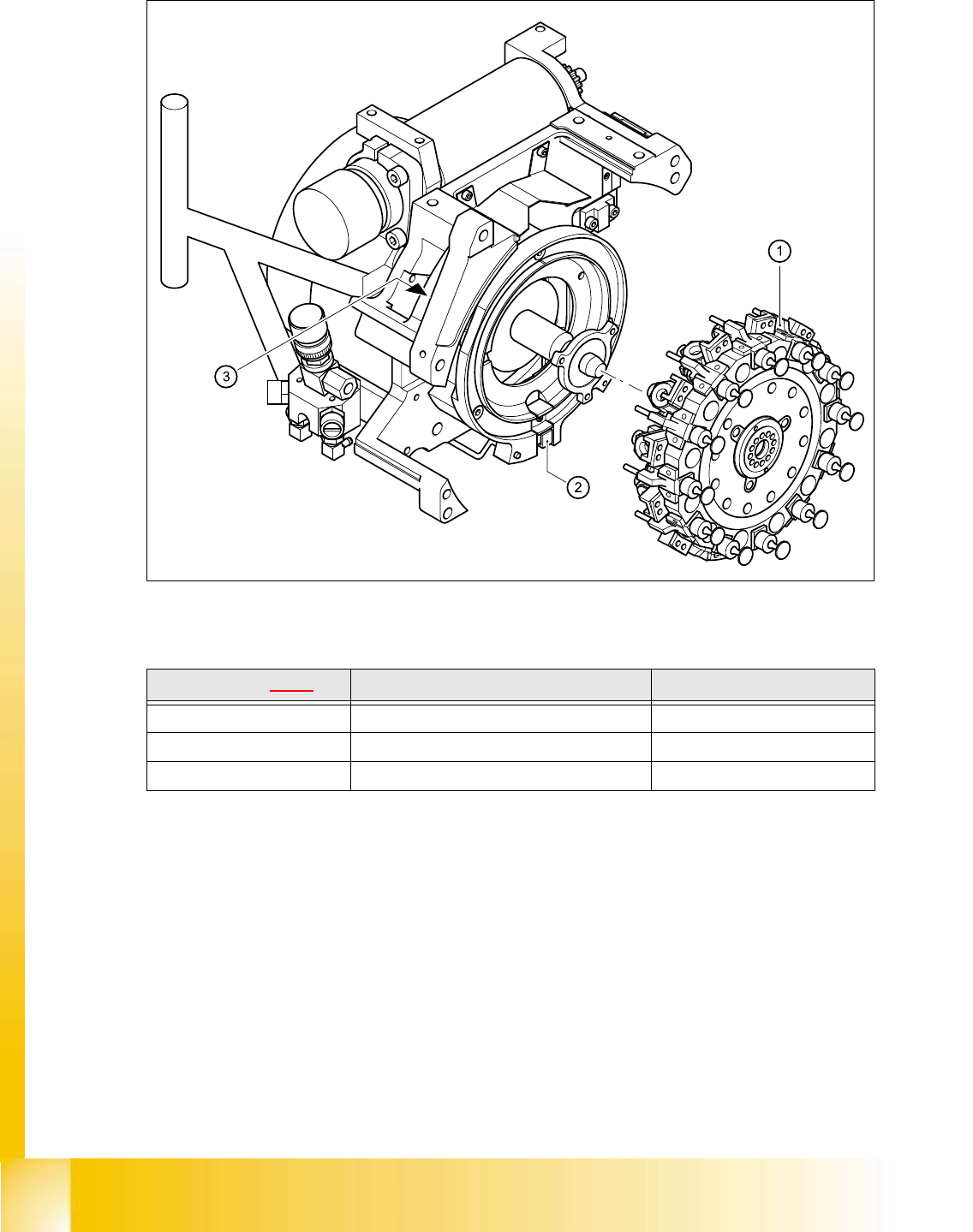

Fig. 5.1 - 4 DLM1 revolver head - parts overview 3
Item in Fig. 5.1 - 4 Designation Item no.
1 Star fitted / DLM1 00341181-01
2 "Z-axis down" sensor 00321524-04
3 RSF digital encoder 12/DLM1 00335990-02
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
9
5.1.3 Overview of the functions of star stations 1 - 12
5
Fig. 5.1 - 5 Overview of the functions of star stations 1 - 12
Star station 1: pick up or place component 5
Star station 2: no function 5
Star station 3: discard component 5
Star station 4, 5 and 6: no function 5
Star station 7: optically center component 5
Star station 8: no function 5
Star station 9: rotate component 5
Star station 10: position for removing and inserting sleeves 5
Star stations 11 and 12: no function (optionally Component sensor) 5
I-XII Segment numbering 5
5
optionally:Component
Sensor
