Studen t Guide HS-50 A dvanced I 06/200 2 Edition 5 DLM1 C&P Head 11 Fig. 5.1 - 7 Fu ncti on vac uum an d air kis s
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
10
5.1.4 Overview about the structure vacuum and air kiss
Fig. 5.1 - 6 Function air kiss
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
11

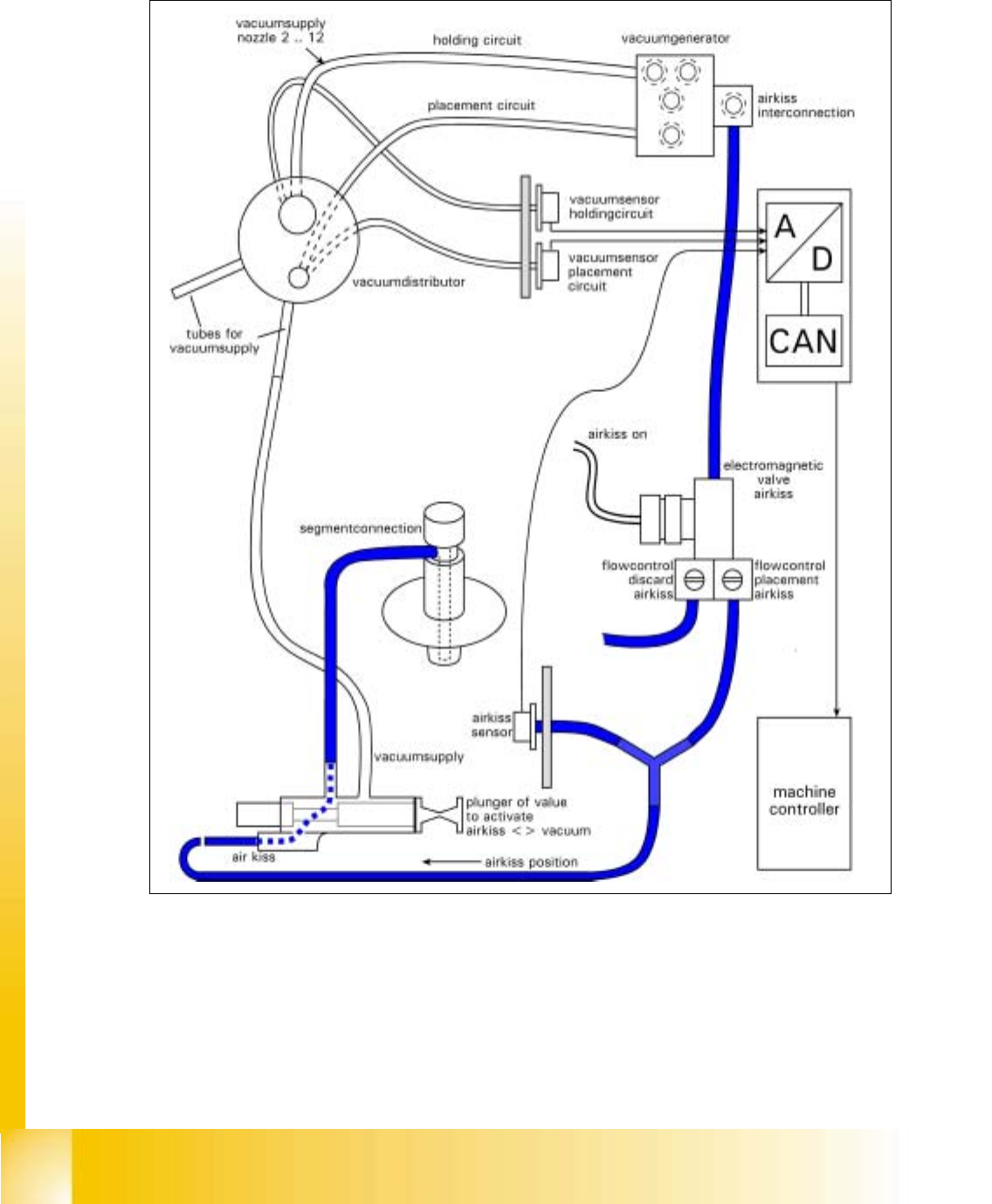

Fig. 5.1 - 7 Function vacuum and air kiss
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
12
5.1.5 Head board
5.1.5.1 Overview Standard head board

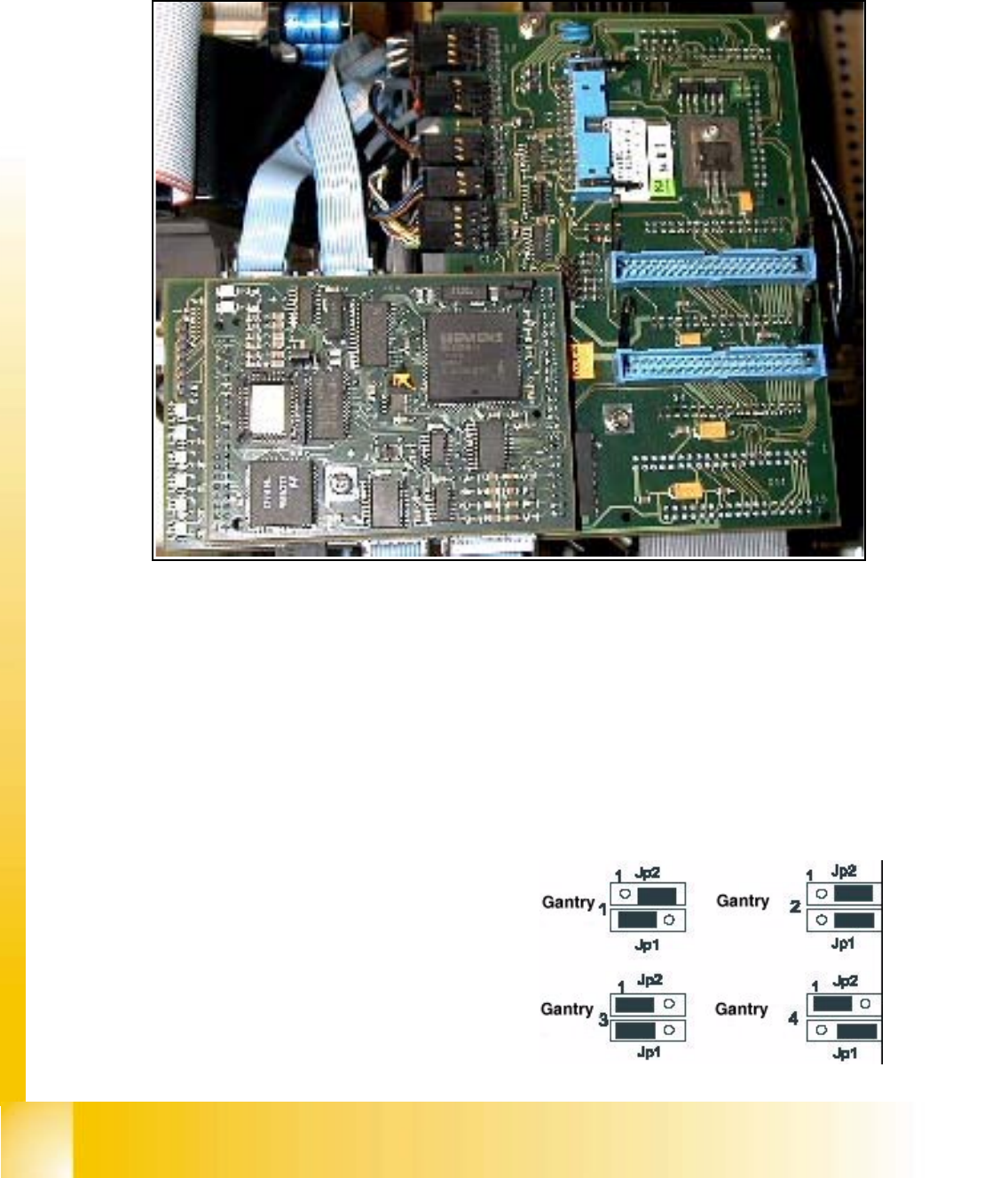

Fig. 5.1 - 8 Standard head board HS50
(1) Video signals PCB camera
(2) Vision Illumination PCB camera
(3) Reference- / Limit switch - Bero‘s
(4) Track signals for X-Axis
(5) Intermediate distributor board for C&P-head
(6) valve drive for placement/pick up position
(7) valve drive reject position
(8) Motor dp-station
(9) Setp motor dp-station
(10) Vacuum test board
(11) LED V9-V14
(12) Jumper Portal 1-4 <=> Kopfplatine
(13) Vision component Camera
(14) Data control LED A0, A1 (see Fig. 5.1 - 12)
1
2
3
4
13
5
5
6
7
8
9
10
11
12
1
2
3
12
1
2
3
12
14
Point 11 LED V9 - V14:
LZOSLight barrier Z-axis upper stop
LZUS Light barrier Z-axis down position
LSOI Light barrier IC Head top position (not used)
LSZD Light barrier Swivel in and turning dp-station
LSVZ Light barrier Vacuum / air blow Z-axis
LSVA Light barrier Vacuum / air blow reject position
Point 12::
