06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
26
5.3 Placement Cycle of the C&P-Head
5.3.1 Steps when placing components
– A PCB moves into the placement area of the PCB conveyor.
– The right-hand revolver head picks up components from the feeder modules.
– The left-hand revolver head waits for the fiducial measurement.
– Once the fiducial measurement is complete, the right-hand revolver head places components
while the left-hand revolver head picks up further components.
– The right-hand revolver head picks up components, and so on.
5.3.1.1 Position and function of the individual star stations (see Fig. 5.1 - 5)
Star station 1 5
Placement cycle 5
The valve positioning unit closes the vacuum channel to the nozzle. The nozzle, together with the
component, is lowered onto the PCB that has been moved into place. A short burst of compressed
air detaches the component from the nozzle and places it on the PCB. 5
Star station 3 5
The valve positioning unit closes the vacuum channel to the nozzle. Defective components are
detached from the nozzle with a short burst of compressed air and are discarded. 5
Star station 7 5
The component is optically centered. 5
Star station 9 5
Placement cycle 5
The placement angle of the component is corrected or the correct placement angle of the compo-
nent is set. 5
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
27

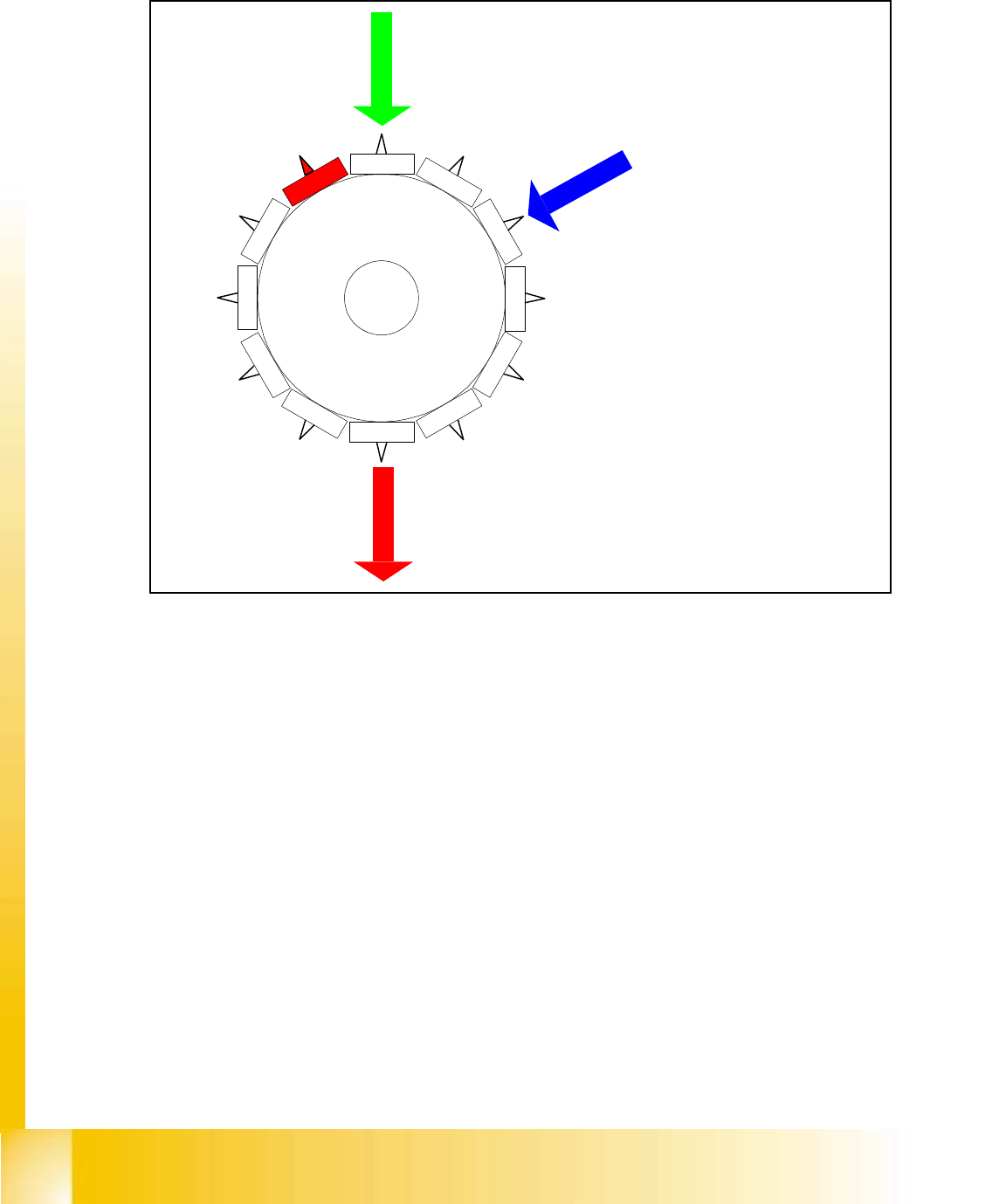

5.3.2 Placing 1st component
Fig. 5.3 - 1 Placing 1st component
– Vision system:
optical centering of the 7th component
– Dp-station:
turn 5th component to the placement angle
– pick up / placement station:
place 1st component
The process continues for the remaining nozzles
Star position
Digit: 00.000
Angle: 0 °
1
2
1
1
10
9
8
7
6
5
1
2
3
4
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
28
5.3.3 Placing 6th component
Fig. 5.3 - 2 Placing 6th component
– Vision system:
optical centering of the 12th component
– Dp-station:
turn 10th component to the placement angle
– pick up / placement station:
place 6th component
– synchronization:
communication with the MVS for the optical centering of component´s. Access to the MVS is
given to the „picking gantry“. IE the other gantry on an S machine now starts centering.
Star position
Digit: 60.000
Angle: 150 °
12
1
1
1
0
9
8
7
6
5
1
2
3
4
