06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
32
5.4 C&P Head dis- and reassembly
5.4.1 Points to note before starting servicing work ...
➠ End all placement operations on the placement system.
➠ Switch the placement system off at the main switch.
➠ Wait, until the operating system has shut down and the UPS has switched off.
➠ Disconnect the placement system from the power supply.
➠ Disconnect the placement system from the compressed air supply.
➠ Switch off the motor contactor in the power supply unit and secure the operating lever with a
padlock.
5

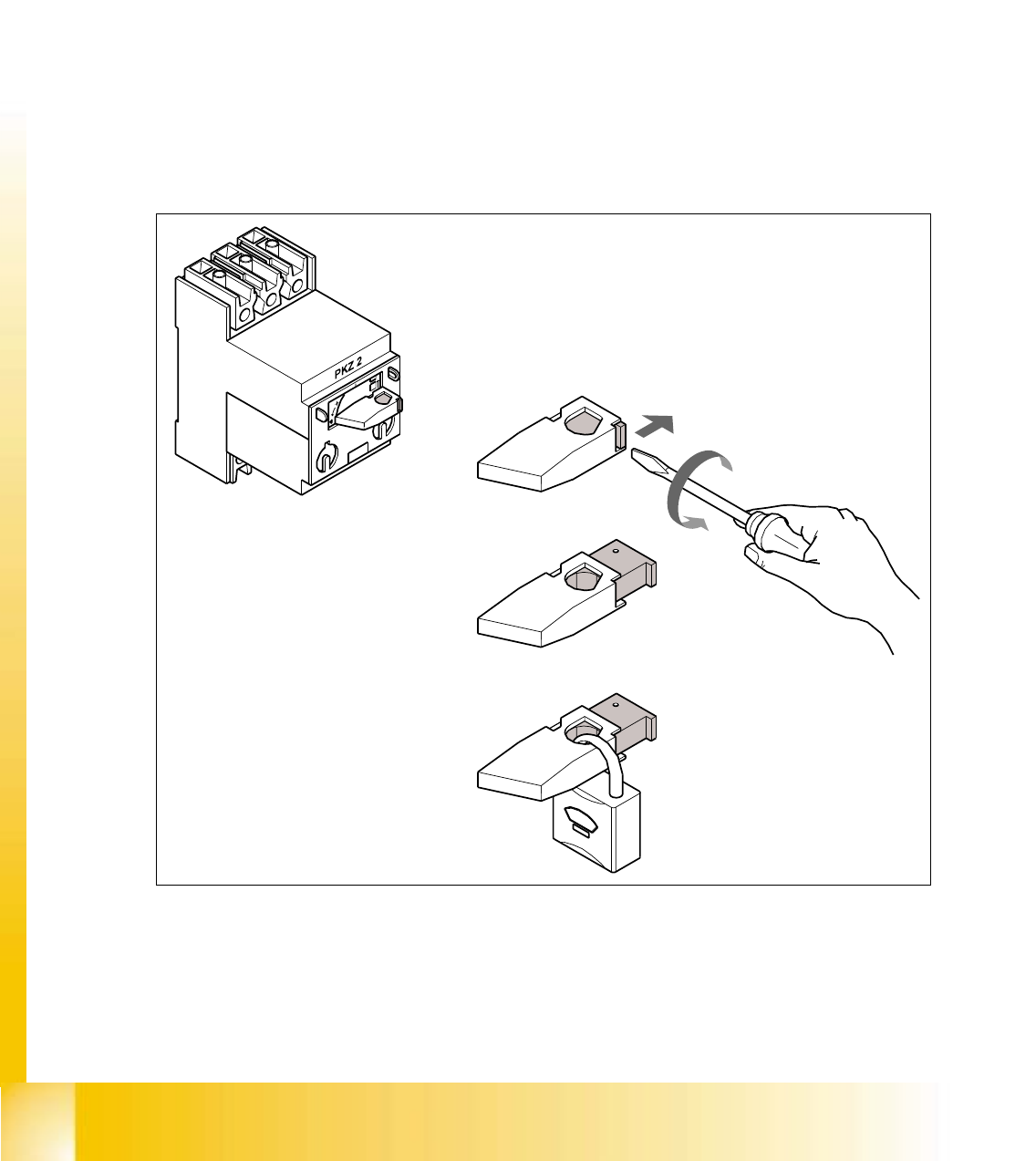

Fig. 5.4 - 1 Locking the motor contactor
(1) Turn the operating lever (1) counter-clockwise.
(2) Use the screwdriver to push the locking lug (2) out of the operating lever (1).
(3) Secure the operating lever with a padlock (3).
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
33
– The Tag Out alternative:
If a machine can be locked out, it must be. However, there are situations where energy isolat-
ing devices can not accommodate locks. In these cases, the energy isolating devices must be
tagged to warn employees that the machine is de-energized for servicing. The tag must be se-
curely fastened, it must be placed in a position visible to all and it may only be removed by the
person who attached it. 5
WARNING
To avoid damaging the revolver head, ALWAYS observe the following points when moving
the gantry: 5
– NEVER move the gantry by pushing with your hands against the revolver head.
– NEVER move the gantry by pushing with your hands against or pulling the recessed grip of
the revolver head. The revolver head may lose its settings or be damaged on account of
the high braking force of the Y-gantry drive.
– NEVER push the gantry while the Z-axis is lowered.
– Take hold of the cast iron part of the X-axis - ideally near the X-axis toothed belt deflection
pulley - and then move the gantry.
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
34
5.4.2 Overview front part of the head
5.4.2.1 Front part, complete / DLM1
The front part is centered by two holes (B) into which the parallel pins of the back part engage.
The front is fixed to the back part with four M4x16 hexagon-socket head screws (item A). 5
5

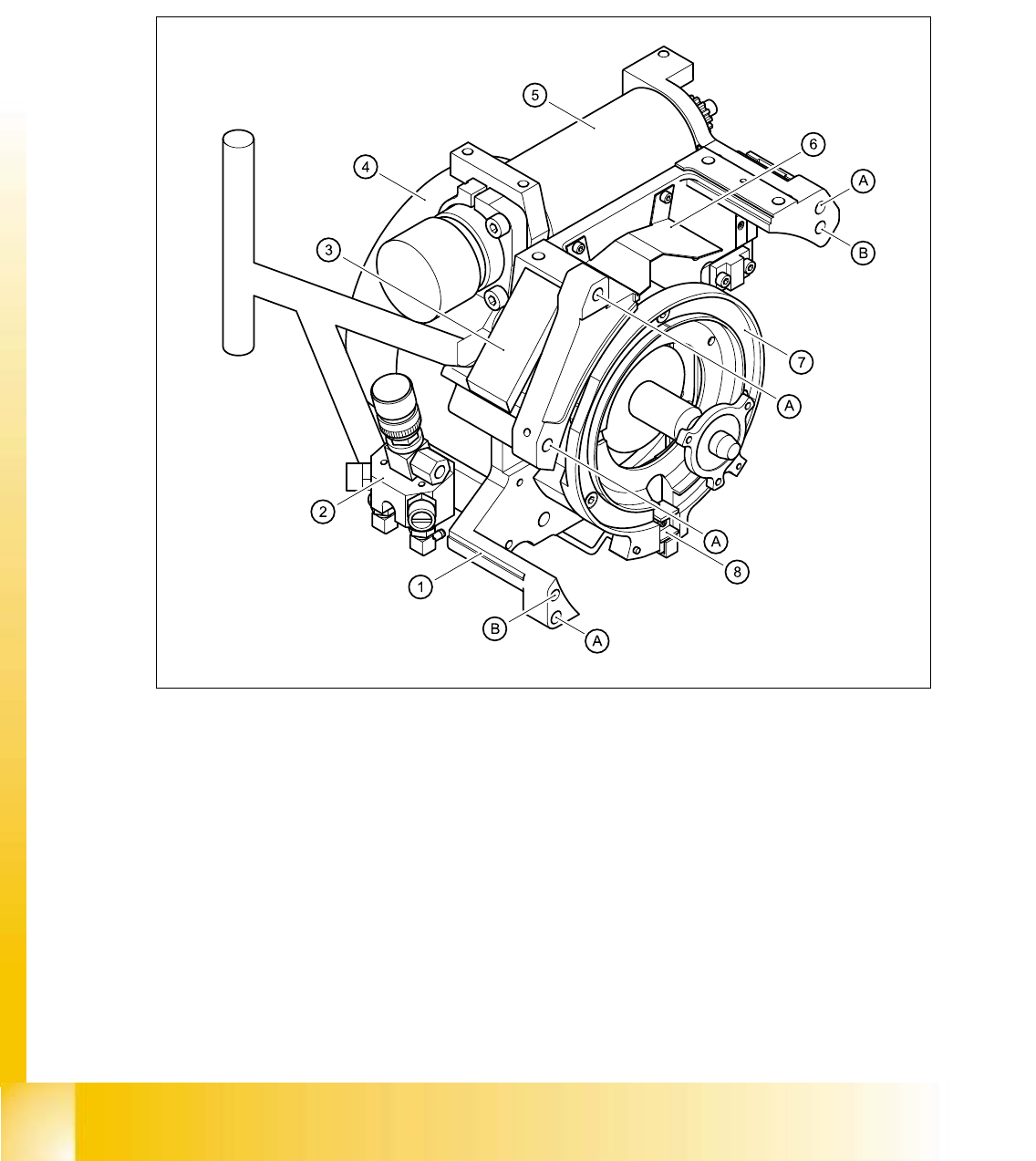

Fig. 5.4 - 2 Structure of the front part / DLM1
(1) Casing / DLM1
(2) Forced air unit / DLM1
(3) RSF digital rotary encoder / DLM1 (beneath the board with the protective cover)
(4) Star drive, digital / DLM1
(5) Z-axis drive
(6) Protective shroud, front part / DLM1
(7) Raceway for the 12 ball bearings on the segments
(8) Snap jaws raising or lowering the sleeve
