Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
53
5

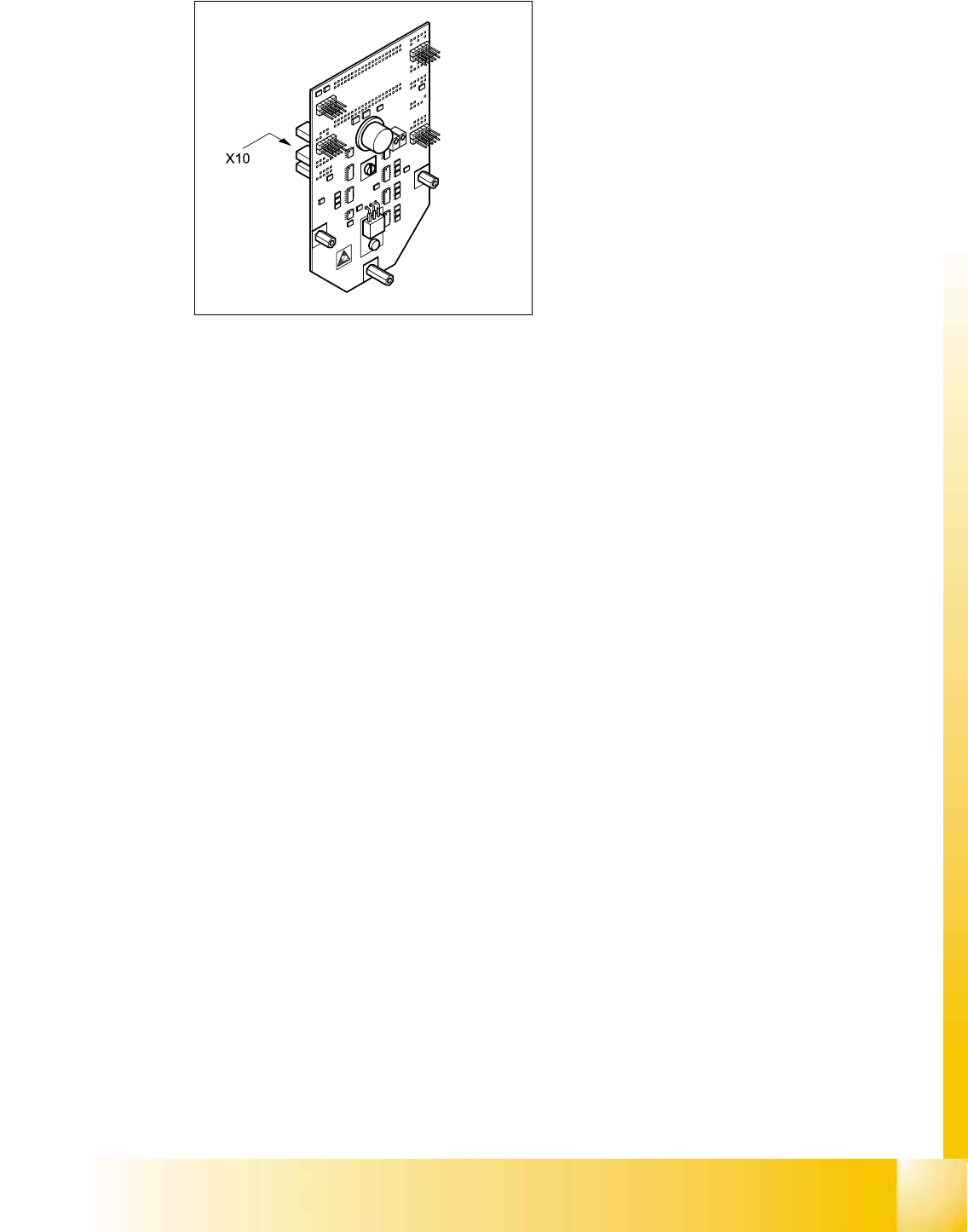

Fig. 5.4 - 14 Intermediate distribution board - socket X10
5.4.7.5 Settings
➠ None
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
54
5.4.8 Replacing the z-axis bottom sensor
5.4.8.1 Tools and equipment
– Set of DIN 911 Allen keys
– Set of Phillips screwdrivers
– Test probe, 1.3 mm Ø, article number 00326163-01
– Gauge for the star (collect&place head / DLM1), article number 00326164-01
– Power pack for the collect&place head / DLM1, article number 00353277-01
– Tray for transporting the collect&place head
– Laboratory gloves
5.4.8.2 Parts
Sensor for "Z-axis down", article number 00321524-04 5
5.4.8.3 Dismantling the z-axis bottom sensor
➠ Dismantle the front part of the collect&place head as described in section 5.4.3.2, page 5 - 36.
➠ Place the front part of the collect&place head on the tray.
➠ Dismantle the star as described in section 5.4.5.3, page 5 - 43.
➠ Remove the plug connector from socket X11 on the intermediate terminal block.
5
Fig. 5.4 - 15 Intermediate terminal block, socket 11
5
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
55
5
Fig. 5.4 - 16 Removing/installing the "Z-axis down" sensor
(1) "Z-axis down" sensor
(2) Slot screw M1.6x3,2
(3) Jaws for the Z-axis
(4) Cable bearer for light barrier 3 / DLM1
(5) M2x3 hexagon socket head screw
(6) Angled clip / DLM1 (beside the star drive)
(7) M2.5x4 hexagon socket head screw
(8) Angled clip / DLM1
(9) M2.5x4 hexagon socket head screw
(10) Star drive
(11) Driver / DLM1
(12) Cable clamp on driver / DLM1
(13) M2x5 hexagon socket head screw
