Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
59
➠ Carefully remove the hose from the pressure sensor (see item 4 in Fig. 5.4 - 17).
➠ Remove the following plugs from their sockets on the board (see Fig. 5.4 - 18 on page 5 - 59).
➠ Remove the intermediate distribution board.
5

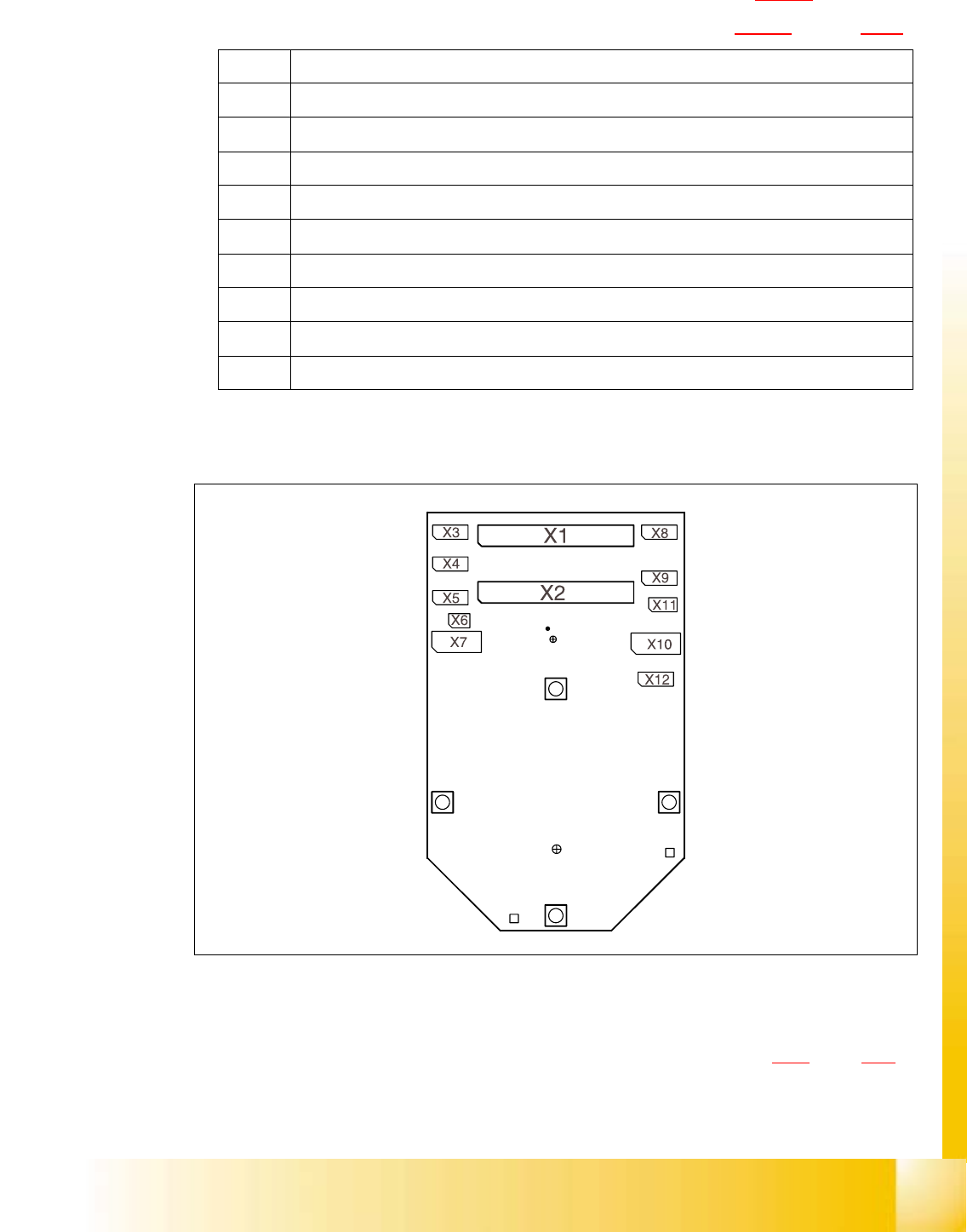

Fig. 5.4 - 18 Sockets on the intermediate distribution board
5.4.9.4 Dismantling the star
➠ Dismantle the front part of the collect&place head as described in section 5.4.3, page - 36
onwards.
➠ Place the front part of the collect&place head on the tray.
X1 Ribbon cable at X14 on the head board
X2 Ribbon cable at X13 on the head board
X3 Motor / tacho connection for the Z-axis
X4 Measuring system connection for the Z-axis
X5 Motor connection for the star axis
X6 Connection for the "Forced air unit" valve
X7 Measuring system connection for the DP-axis
X10 Connection for the "Z-axis up" light barrier (adjustment unit)
X11 Connection for the "Z-axis down" light barrier
X12 Measuring system connection for the star axis
Tab. 5.4 - 2 Sockets on the intermediate distribution board
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
60
PLEASE NOTE:
Wear laboratory gloves when you remove the sleeves from the star.
➠ Remove all the sleeves (item 1 in Fig. 5.4 - 8) and place them in the sleeve box or on a soft,
clean surface.
➠ Undo the three M3x8 hexagon socket head screws (item 5 in Fig. 5.4 - 8).
➠ Raise the star slightly.
➠ Use a rotary movement to lift the star up and off.
5

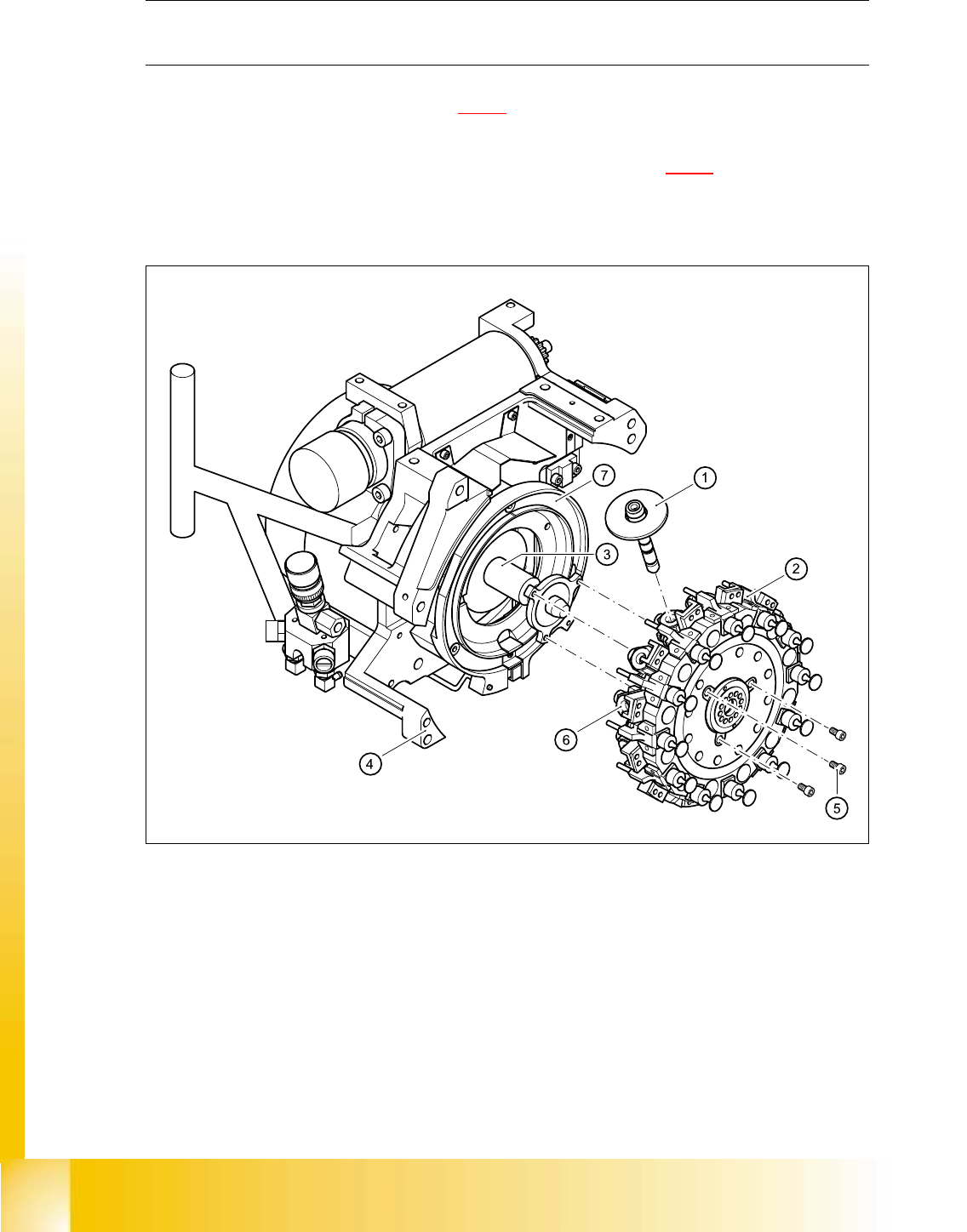

Fig. 5.4 - 19 Replacing the star
(1) Sleeve
(2) Star, mounted / DLM1
(3) Star drive
(4) Front part of collect&place head
(5) M3x8 hexagon socket head screws, 3x
(6) Segment
(7) Raceway
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
61
5.4.9.5 Dismantling the star drive
➠ Undo the four M5x16 hexagon socket head screws (item 2 in Fig. 5.4 - 20).
➠ Lift the star drive off the front part of the collect&place head.
5.4.9.6 Fit the star drive.
➠ Place the star motor on the front part of the collect&place head so that the connecting cable
for the star drive points to the position marked (A) in Fig. 5.4 - 20
.
➠ Fix the star drive in place with the four M5x16 hexagon socket head screws (item 2 in Fig. 5.4
- 20).
5
5

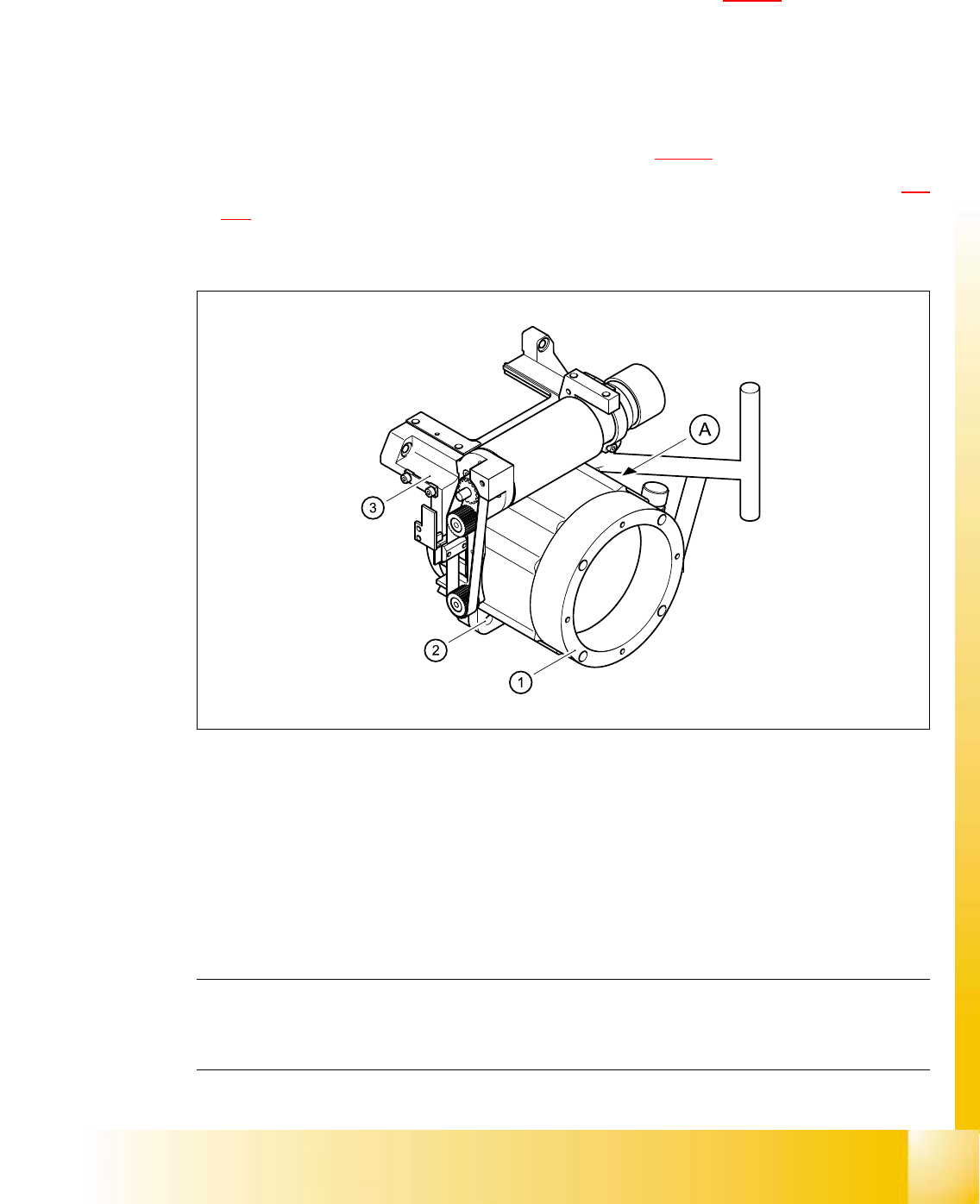

Fig. 5.4 - 20 Replacing the star drive
(1) Star drive, digital / DLM1
(2) M5x16 hexagon socket head screws, 4x
(3) Front part of collect&place head
(A) Connecting cable for the star drive on this side 5
5.4.9.7 Fitting the star
PLEASE NOTE:
Remove any remaining sleeves before fitting the star.
Wear laboratory gloves when removing the sleeves.
