Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
61
5.4.9.5 Dismantling the star drive
➠ Undo the four M5x16 hexagon socket head screws (item 2 in Fig. 5.4 - 20).
➠ Lift the star drive off the front part of the collect&place head.
5.4.9.6 Fit the star drive.
➠ Place the star motor on the front part of the collect&place head so that the connecting cable
for the star drive points to the position marked (A) in Fig. 5.4 - 20
.
➠ Fix the star drive in place with the four M5x16 hexagon socket head screws (item 2 in Fig. 5.4
- 20).
5
5
Fig. 5.4 - 20 Replacing the star drive
(1) Star drive, digital / DLM1
(2) M5x16 hexagon socket head screws, 4x
(3) Front part of collect&place head
(A) Connecting cable for the star drive on this side 5
5.4.9.7 Fitting the star
PLEASE NOTE:
Remove any remaining sleeves before fitting the star.
Wear laboratory gloves when removing the sleeves.
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
62
➠ Push all the segments (item. 6 in Fig. 5.4 - 8) slightly outwards.
➠ Insert small Allen keys (e.g. size 2) into the holes for the star fixing screws (item 5 in Fig.
5.4 - 8
).
➠ Hold the star over the star drive shaft (item 3 in Fig. 5.4 - 8) so that the Allen keys slide into the
threaded holes in the star drive.
➠ Insert the star.
PLEASE NOTE:
Make sure that the vacuum hoses of the segments do not become squashed. 5
➠ Push all the segments inwards so that the segment ball bearings slide into the raceway (item
7 in Fig. 5.4 - 8
).
➠ Check that the star is seated flat on the drive shaft.
➠ Loosely tighten the three M3x8 hexagon socket head screws on the star so that the screws can
still move slightly in the fixing holes.
5.4.9.8 Adjusting the star with respect to the star's magnetic neutral position.
The aim of adjusting the star is to ensure that the vertical axis of segment no. 1 is aligned with the
magnetic neutral position of the star step motor. 5
➠ To do this, insert the gauge pin into the gauge for the star and into the hole in the segment
no. 1, until it reaches the stop.
➠ Pull off the motor line plug of the star motor from socket X5 on the intermediate distribution
board and connect the motor line to the power supply.
➠ Connect the power supply unit to main power.
➠ Tighten the three M3x8 hexagon socket head screws on the star.
➠ Remove the gauge pin.
➠ Insert the gauge pin again into the gauge for the star and into the hole in the segment, until it
reaches the stop. Then check:
– that the gauge pin can be inserted easily.
– that the star does not rotate out of its current position as a result.
If both of these conditions are fulfilled, then the star has been fitted correctly. 5
➠ Disconnect the power pack from the power source.
➠ Continue from section 5.4.3.3 "Fitting the front part of the revolver head".
➠ Repeat the adjustment procedure if the gauge pin does not slide easily into the hole.
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
63
CAUTION
The maximum operating time of the power pack for the star motor is five minutes. Do NOT
exceed this time. If you have to disconnect the power pack from the power source because
it has been operating for five minutes, always insert the gauge pin before switching the power
pack on again. 5
If you still cannot fit the star in the magnetic neutral position of the star motor, follow the
instructions below: 5
➠ Loosen the four M5x16 hexagon socket head screws (item 2 in Fig. 5.4 - 9) for fixing the star
drive (item 1 in Fig. 5.4 - 9
) and turn the star drive in the direction that will allow the star to be
adjusted with respect to the magnetic neutral position. Tighten the four hexagon socket head
screws in this position.
5

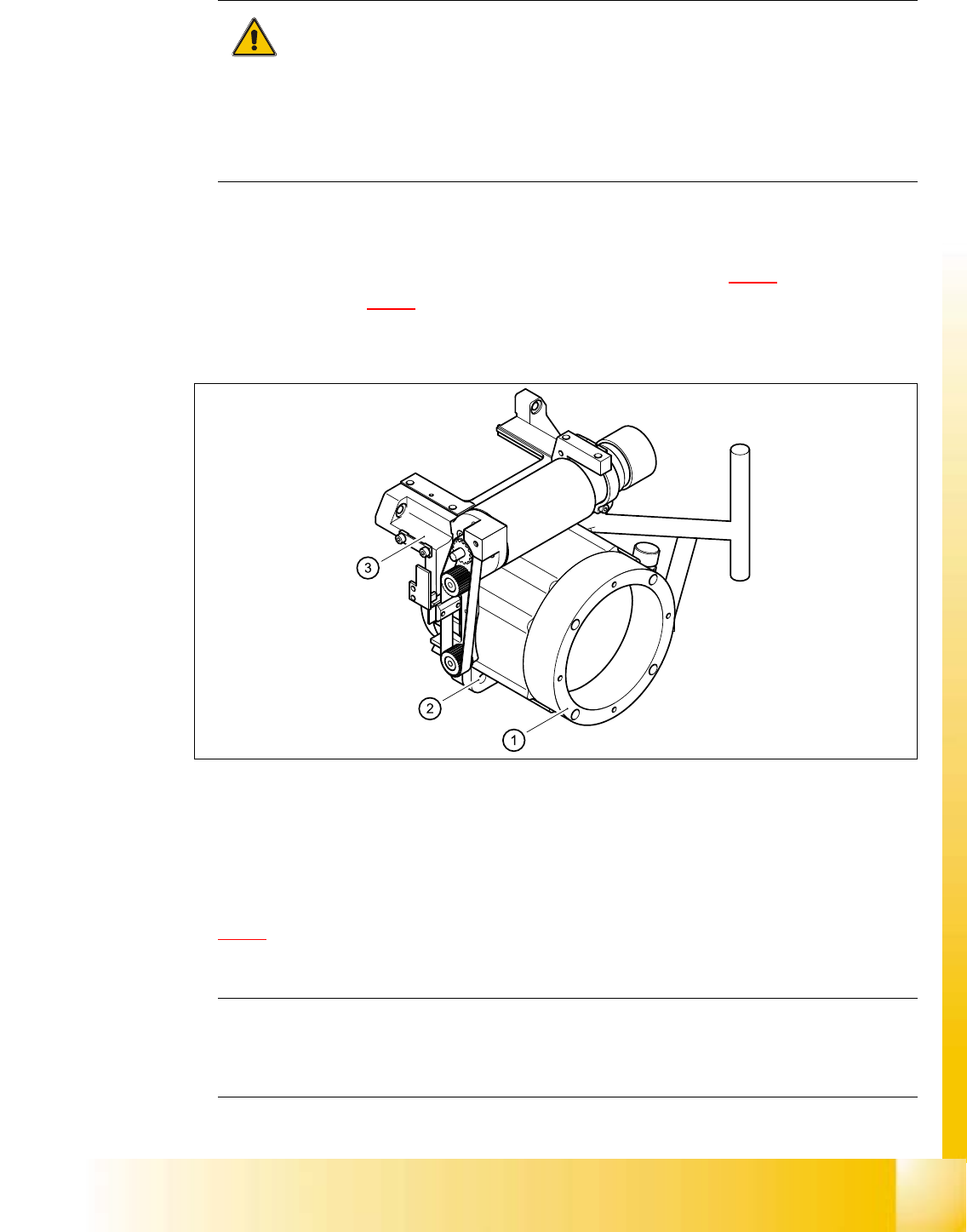

Fig. 5.4 - 21 Loosening the star drive
(1) Star drive, digital / DLM1
(2) M5x16 hexagon socket head screws, 4x
(3) Front part of collect&place head
➠ Loosen the three M3x8 hexagon socket head screws (item 5 in Fig.
5.4 - 8
) for fixing the star again and repeat the adjustment procedure.
PLEASE NOTE:
The star is fitted correctly until it no longer moves out of position when the gauge pin is
removed after disconnecting the star drive from the power supply. 5
