06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
70
5

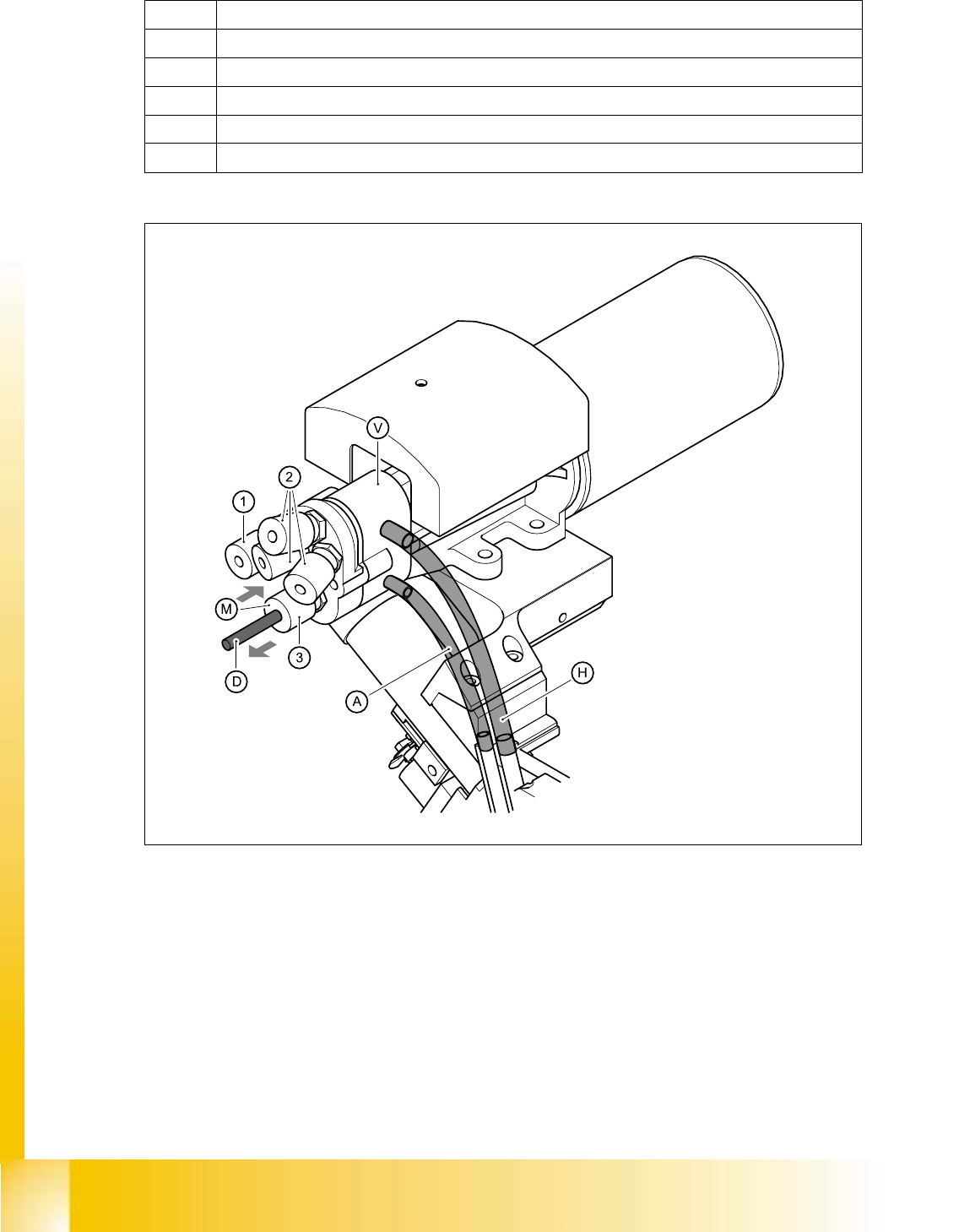

Fig. 5.4 - 26 Collect&place head - compressed air connections
(1) Compressed air connection of the forced air unit
(2) 3 compressed air connections for the holding circuit
(3) Compressed air connection for the placement circuit
A Hose connection to placement circuit 5
H Hose connection to holding circuit 5
X12 For the DP-axis, motor and tacho
X13 For plug X2 on the intermediate distribution board
X14 For plug X1 on the intermediate distribution board
X18 For the infeed motor of the DP-axis
X19 For the "Placement circuit" valve positioning drive (star station 1)
X20 For the "Reject circuit" valve positioning drive (star station 3)
Tab. 5.4 - 3 Plug-in connections on the head board
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
71
PLEASE NOTE:
Refer to Fig. 5.4 - 29
on page 5 - 73 and Table 5.4 - 5 on page 5 - 74 for connecting the
compressed air hoses.
➠ Push the collar (3) towards the vacuum generator (V) and remove the black compressed air
hose (D).
➠ Undo the three hexagon socket-head screws (M4x16) (item A in 5.4 - 27).
5

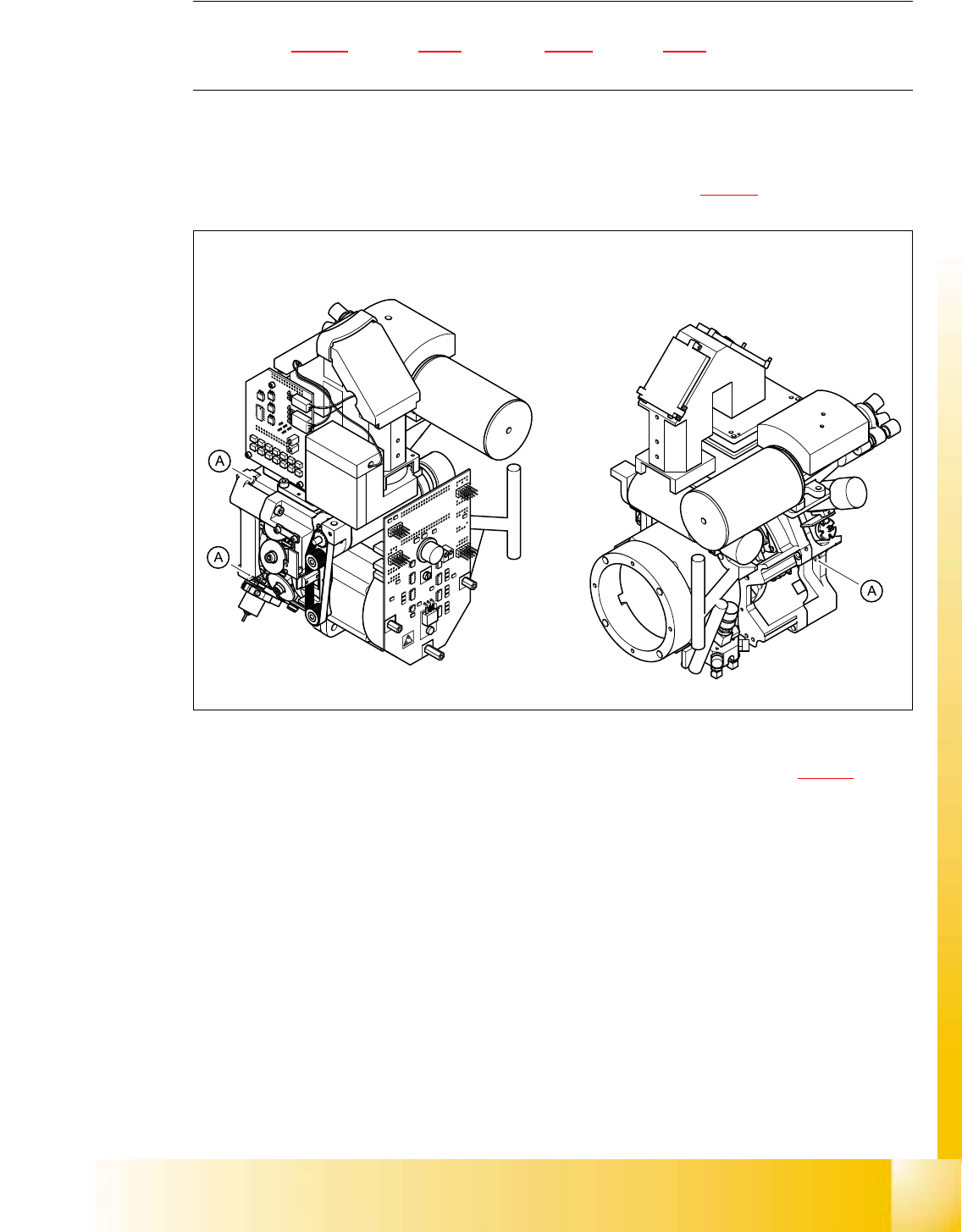

Fig. 5.4 - 27 Fixing the collect&place head on the head mount
➠ Carefully pull the collect&place head away from the parallel pins (Item 4 in Fig. 5.4 - 28) on the
head mount and remove it from the placement system.
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
72
5.4.12.4 Fitting the collect&place head on the head mount
5

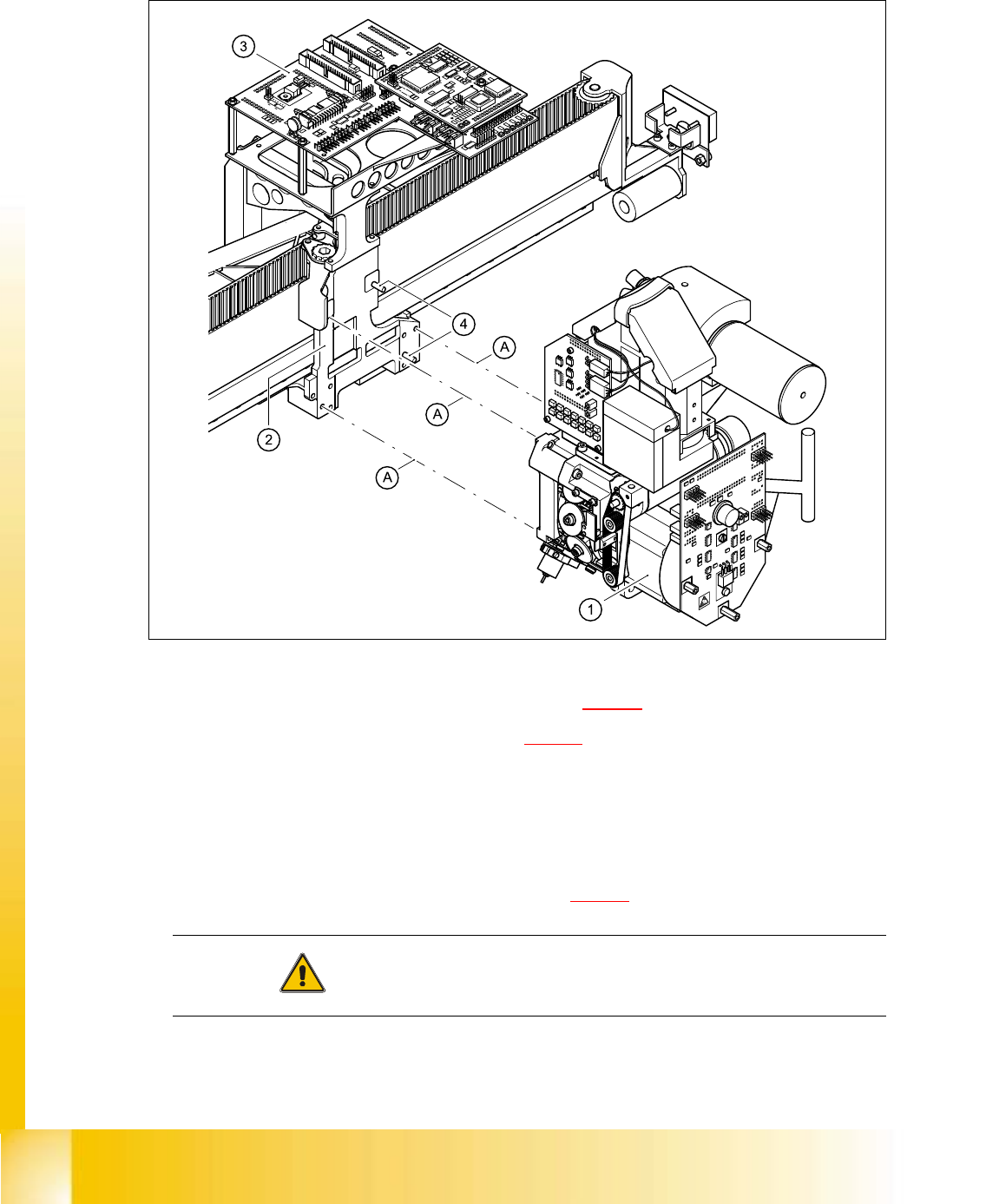

Fig. 5.4 - 28 Fitting the collect&place head
➠ Carefully move the collect&place head (item 1 in Fig. 5.4 - 28) onto the head mount (2).
➠ Make sure that the parallel pins (item 4 in Fig. 5.4 - 28) on the head mount slide into the holes
in the back part of the collect&place head.
➠ Carefully push the collect&place head towards the head mount until it is lying flat.
➠ Use three M4x16 hexagon socket-head screws to fix the collect&place head (A).
➠ Connect the plugs for the collect&place head to the head board.
The plug positions and assignment is shown in Fig. 5.4 - 25
.
CAUTION Check the polarity of the plugs before connecting. 5
➠ Make sure that the plugs are firmly locked in place.
