Student Guide HS-50 Advanced I 06/2002 Edition
6 Operating the SITEST Software
1
6 Operating the SITEST Software
WARNING
The SITEST test program may only be used by staff members of SIEMENS AG PL EA, or specially
trained customer staff. Improper use of this test program will result in severe damage to the ma-
chine and will pose a hazard to the operating personnel. 6
6.1 What is SITEST?
SITEST is a program which allows the various functions of the individual modules of the SIPLACE
HS-50 / HS-55 and SIPLACE S-25HM / S-25HM2 to be tested. 6
Overview of SITEST functions 6
– General SITEST functions
– Functions for making machine settings
– Functions for setting the dynamics of the axes
– Calibration functions
– Mapping functions
You can execute these functions using SITEST. You will find information on how to do this and
details on the interfaces in this chapter, software instruction for Sitest and by using the online Help
function while working with SITEST. In addition, you will find a number of practical examples
described in the online Help system. 6
06/2002 Edition Student Guide HS-50 Advanced I
6 Operating the SITEST Software
2

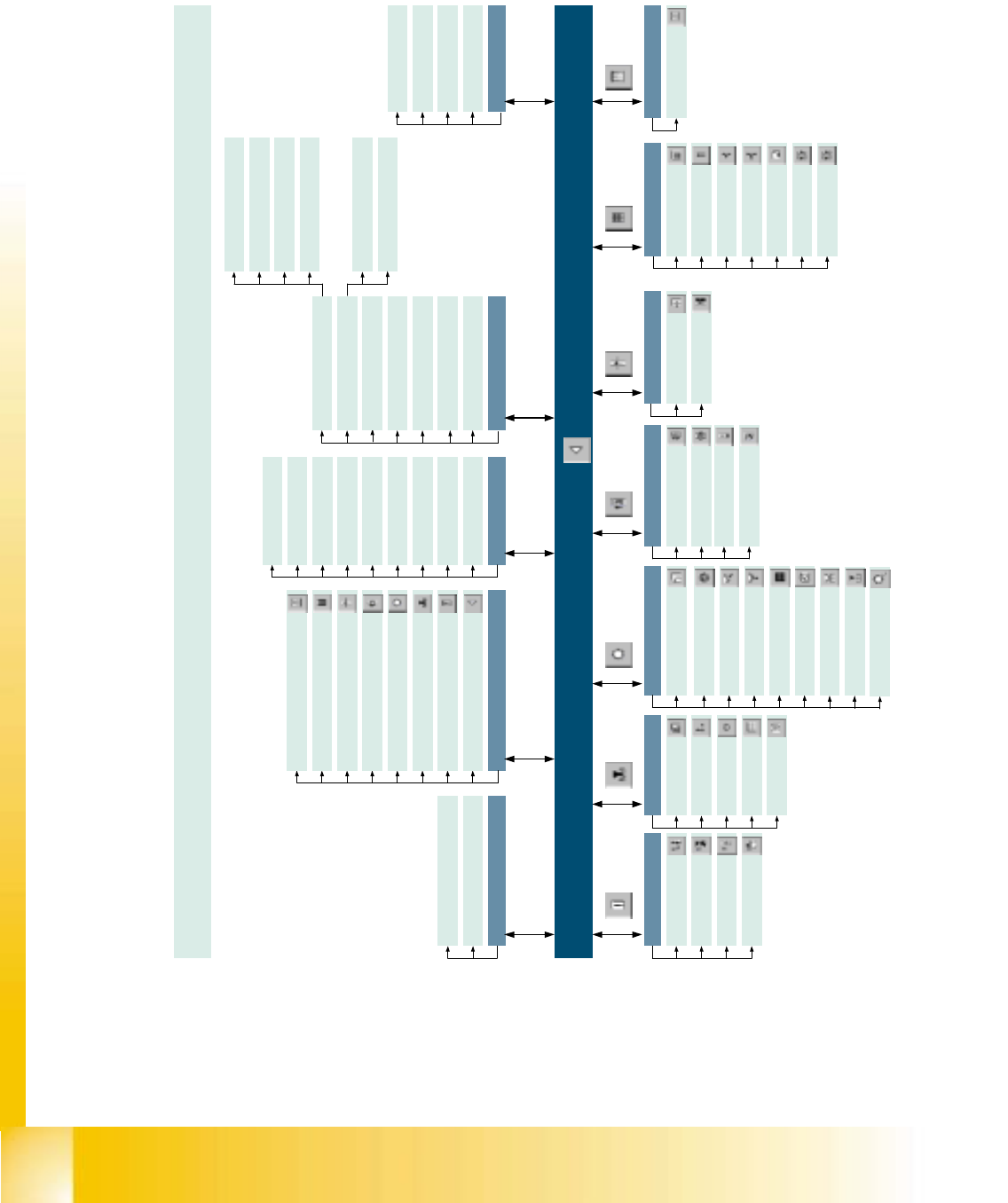

6.1.1 Overview user interface Sitest
Main view [F1]
(Portal 2 nur S-20/S-23 HM)
(Gantries 3 and 4, RV
heads 3 and 4 only for
SIPLACE HS-50/HS-55)
RV head 2...
Mode
Exit - Esc
Shut down computer...
Main view - F1
View
Error - F2
Gantries - F3
RV heads - F4
PCB conveyor - F5
Tables - F6
MTC - F7
Inputs/outputs - F8
Cycle mode... - Alt+T
PCB camera P1 - Alt+1
General functions
RV camera P1 - Alt+2
PCB camera P2 - Alt+3
RV camera P2 - Alt+4
Settings
Access level...
Save machine data
Copy machine data...
Firmware download...
Machine configuration...
Head exchange
Language
RV head 1...
German
English
French
Help
Contents - Ctrl+Alt+F1
Help - Alt+F1
Use help
Info...
[F2]
Errors
Track errors
Machine errors
Transport errors
General errors
[F3]
Gantry functions
Gantries
Axes functions
Calibrate position
PCB mapping
PCB camera
functions
[F4]
Revolver heads
Functions
Axes
Holding/reject circuit/
turning station
Placement and pick-up
circuit
RV mapping
RV head and camera
Nozzle changer
head functions
Nozzle changer
magazine functions
[F5]
PCB conveyor
Transport functions
Adjust and measure
PCB conveyor width
Adjust and test
conveyor speed
[F6]
Tables
Functions
Calibrate pick-up
position
[F7]
MTC
Functions
Tower functions
Axes
Settings
Machine data
Inputs/outputs 1
Inputs/outputs 2
[F8]
Inputs/outputs
In- and outputs
User interface SITEST Version 503.xx
SIPLACE S-25HM/S-25HM2, SIPLACE HS-50/HS-55 Issue 12/2001
(MTC only for SIPLACE S-25HM/
S-25HM2)
(Adjust and test
conveyor speed only for
SIPLACE HS-50/HS-55)
PCB camera P3 - Alt+5
RV camera P3 - Alt+6
PCB camera P4 - Alt+7
RV camera P4 - Alt+8
Italian
(Head exchange only
for
SIPLACE S-25HM/
S-25HM2)
(MTC only for SIPLACE S-25HM/
S-25HM2)
Conveyor functions
Revolver head
component sensor
Student Guide HS-50 Advanced I 06/2002 Edition
6 Operating the SITEST Software
3
6.2 Starting/Terminating the Test Program
6.2.1 Starting
➠ On the user interface for the station, click on the icon (see User’s Manual SIPLACE HS-
50).
The test program is started.
The main view of the user interface of the test program will appear on the screen shortly after-
wards.
➠ Select the desired language .
6.2.2 Terminating
There are three ways of properly terminating the test program, i.e. either
– from the main view via the Mode menu, by selecting the menu command Exit ,
– using the key ESC
– or by proceeding as described in the following.
NOTE
Only the key ESC permits the test program to be terminated from any view.
➠ In the main view, click on the icon.
