06/2002 Edition Student Guide HS-50 Advanced I
6 Operating the SITEST Software
6

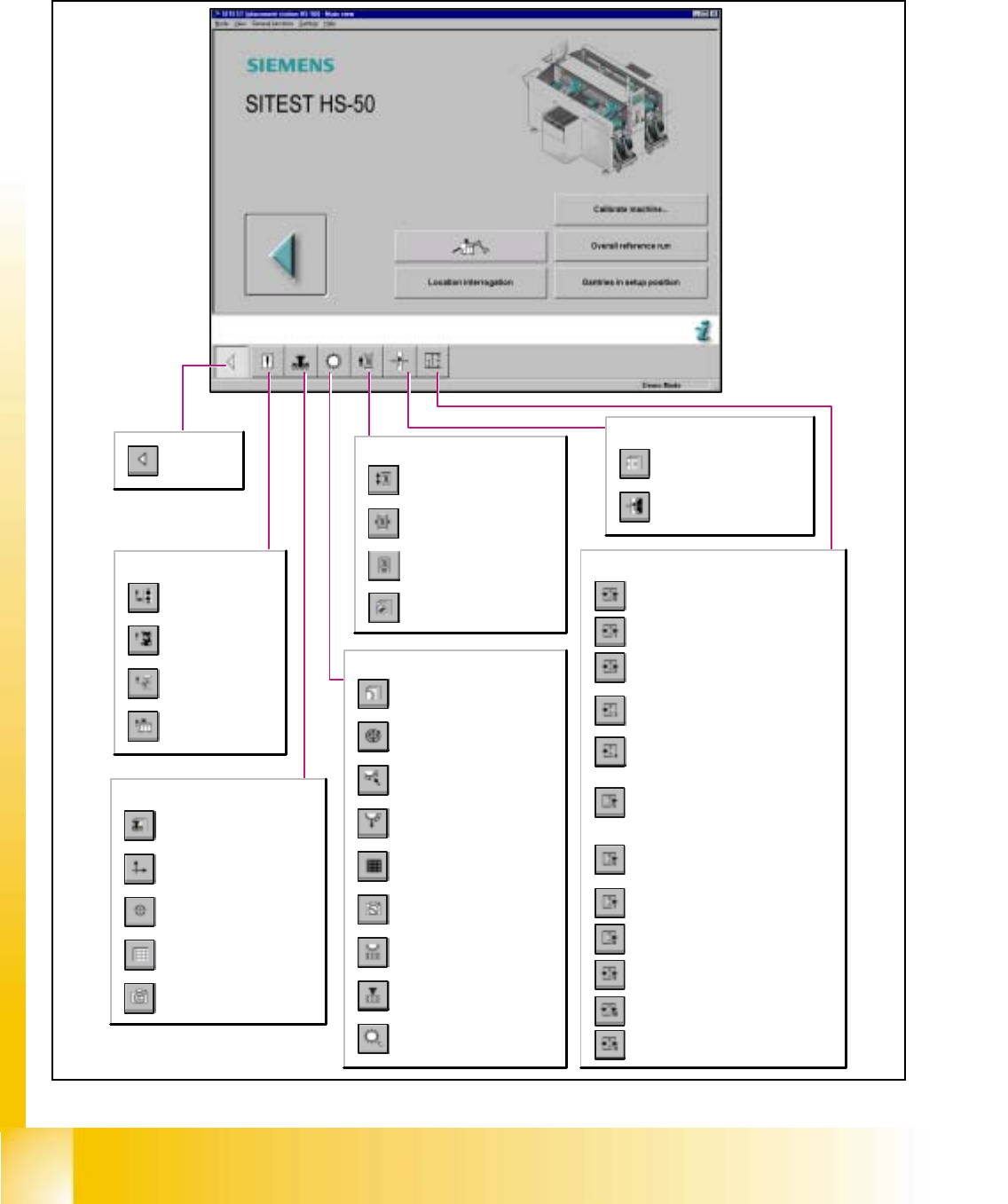

6.3.2 Main View- Icons SIPLACE HS-50 / HS-55
6
Errors
Call-up of the display
of the general errors.
Call-up of the transport
error display.
Call-up of the machine
error display.
Call-up of the track
error display.
Return to the
main view.
Gantry
Call-up of the gantry functions.
Call-up of the display of the
gantry axis functions.
Call-up of the display of the
gantry's calibration functions.
Call-up of the display of the
gantry's PCB mapping
functions.
Call-up of the display of the
gantry's PCB camera
functions.
Revolver heads
Call-up of the display of the
functions of the revolver head.
Call-up of the display of the axis
functions of the revolver head.
Call-up of the display of the
functions of the revolver head in
the holding and reject circuit.
Call-up of the display of the
functions of the revolver head in
the placement and pick-up circuit.
Call-up of the display of the
mapping functions of the revolver
head.
Call-up of the display of the RV
camera functions.
Opening the screen for the head
functions of the revolver head
nozzle changer
Opening the screen for the
magazin functions of the revolver
head nozzle changer
Call-up the view for the functions
of the revolver head component
sensor.
PCB-Conveyor
Call-up the Conveyor Functions
view.
Call-up the screen for setting
the conveyor speed.
Not for SIPLACE S-25HM!
Call-up of the display of the
conveyor width settings.
Call-up the screen displaying
the PCB transport functions.
Tables
Call-up of the display of the
component table functions.
Call-up of the display for the
calibration of the component
table pick-up position.
Inputs/Outputs
Conveyor width adjustment
Options, conveyor 2
Options, conveyor 1
Interface, conveyor 2
Interface, conveyor 1
HS-50: Belt motor, sonar Bero and width
adjustment, conveyor 2
HS-55: Belt motor and PCB sensor,
conveyor 2
HS-50: Belt motor, sonar Bero and width
adjustment, conveyor 1
HS-55: Belt motor and PCB sensor,
conveyor 1
HS-50: Lifting table and stopper, conveyor 2
HS-55: Lifting table and laser light barrier,
conveyor 2
HS-50: Lifting table and stopper, conveyor 1
HS-55: Lifting table and laser light barrier,
conveyor 1
I/O module 3
Not for SIPLACE S-25HM/S-25HM2!
I/O module 2
I/O module 1
Student Guide HS-50 Advanced I 06/2002 Edition
6 Operating the SITEST Software
7

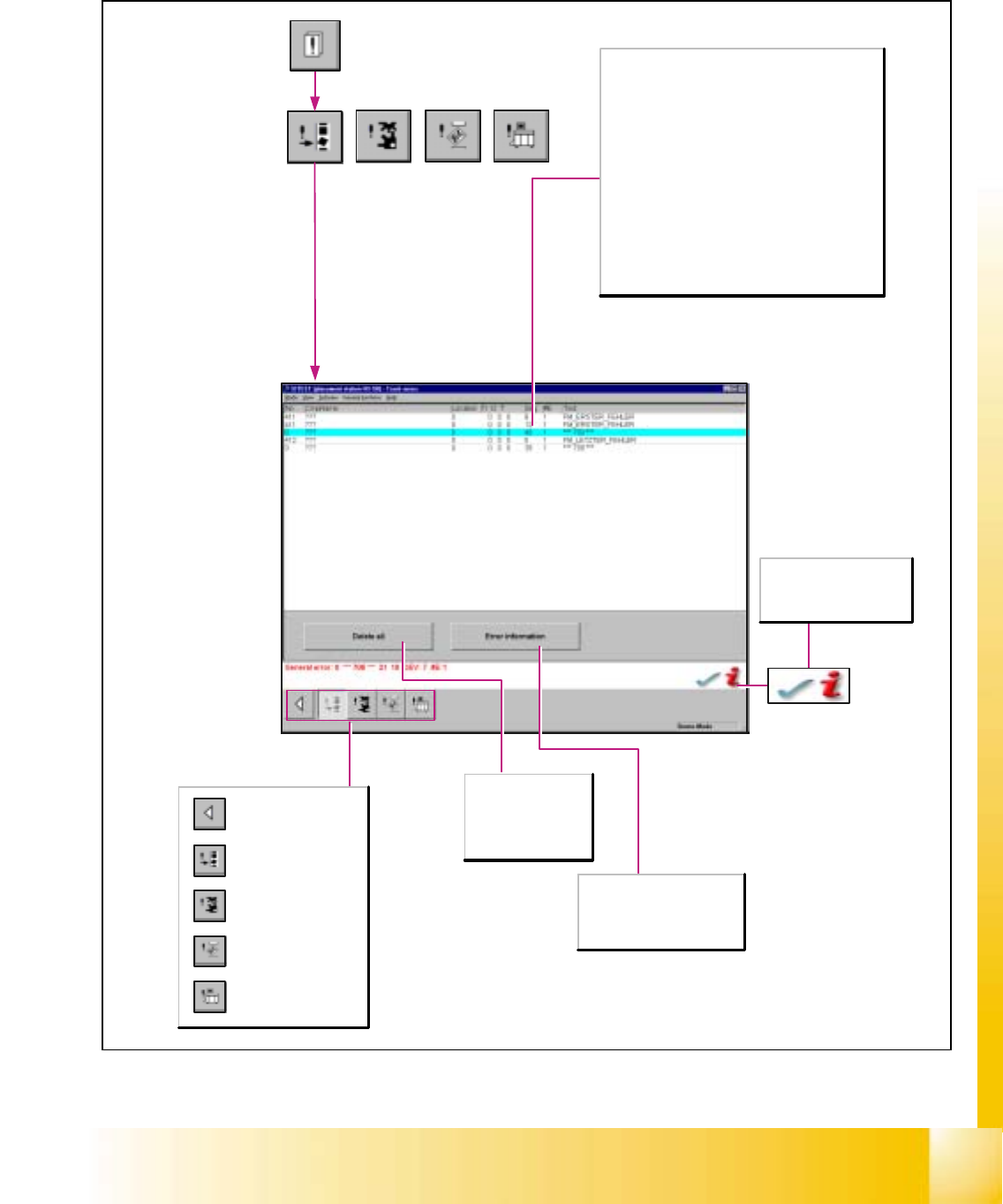

6.3.3 Display Errors
6
Key to the table:
No.
Indicates the error numbers of the individual errors.
Info1, Info2
Only for Siemens-internal use.
DEV
Indicates the applicable pick-up side, i.e. the gantry on
which the error has occurred.
#E
Indicates how often the particular error has already
occurred.
Text
Describes the error at issue.
Delete all
Deletes all error
messages of the
error class currently
displayed.
After the successful
completion of
troubleshooting activities,
the current error is deleted.
Error information
Starts a help system listing the
possible causes of selected
errors and displays possible
corrective actions to be taken.
Call-up of the display
of the general errors.
Call-up of the transport
error display.
Call-up of the machine
error display.
Call-up of the track
error display.
Return to the main
view.
06/2002 Edition Student Guide HS-50 Advanced I
6 Operating the SITEST Software
8
6.3.4 Main View - Menu Bar: Mode and View SIPLACE HS-50 / HS-55
6
Shuts the station computer
down completely within a few
seconds. All active programs
are aborted.
Subsequently, the computer
may be switched off.
Esc
Aborts the processing and the
SITEST test program is exited.
F1
Return to the main
view.
F2
Displays the list of
error messages -
grouped into error
classes.
F3
Call-up of the gantry
functions.
F4
Call-up of the
revolver head
functions.
F5
Call-up of the
transport functions of
the PCB conveyor.
F6
Call-up of the
component table
functions.
F8
Displays the
hardware I/O ports.
