06/2002 Edition Student Guide HS-50 Advanced I

6 Operating the SITEST Software

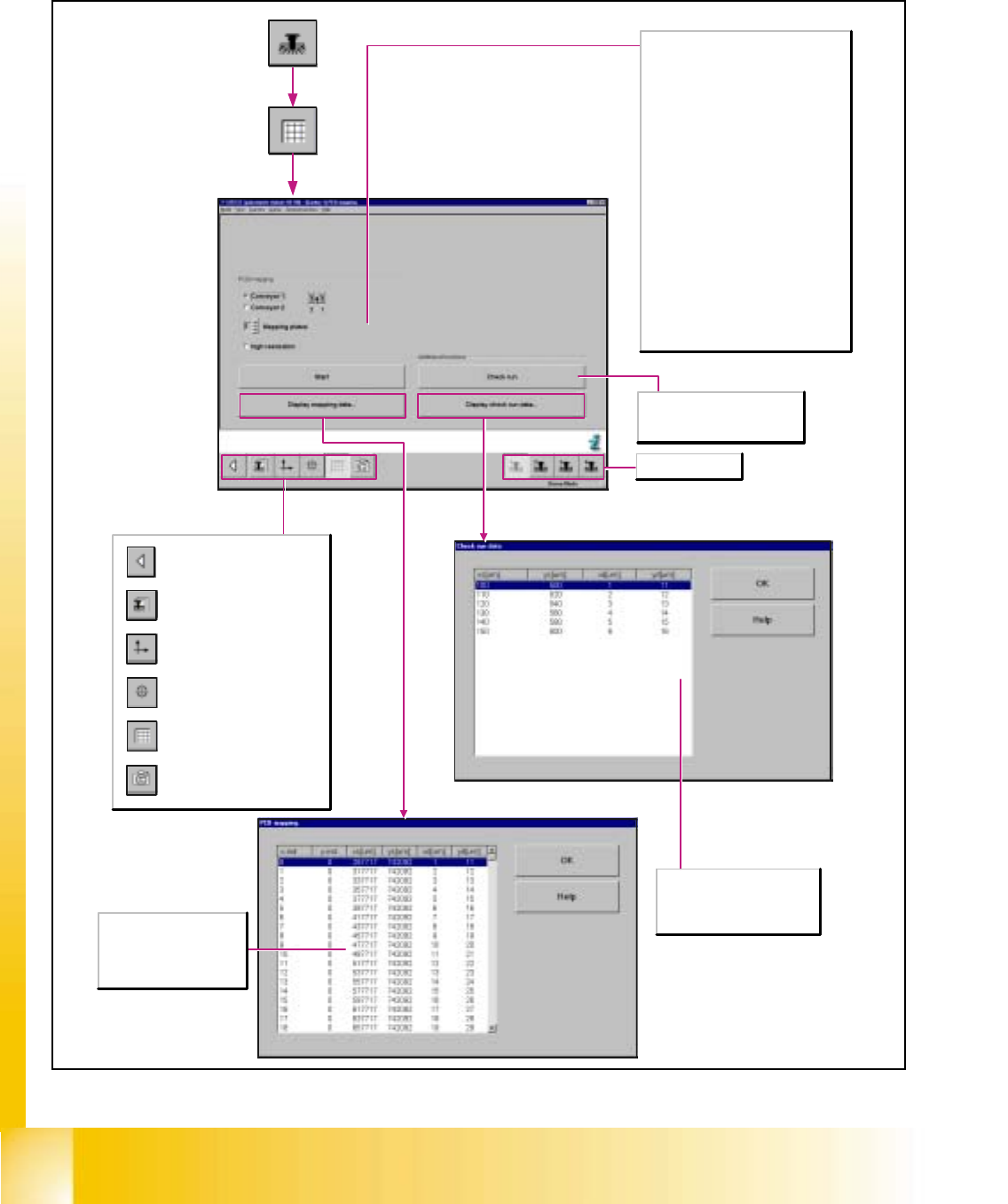

6.4.4 Gantry‘s PCB Mapping Functions

Call-up of the gantry functions.

Call-up of the display of the

gantry axis functions.

Call-up of the display of the

gantry's calibration functions.

Call-up of the display of the

gantry's PCB mapping

functions.

Call-up of the display of the

gantry's PCB camera

functions.

Return to the main view.

PCB Mapping

Conveyor 1/2

Activates conveyor track 1/2 of the dual

conveyor .

No. of mapping plate (at the bottom of the

mapping plate)

Display and input of the current number of

the mapping plate which can be found at

the bottom of the mapping plate.

High resolution

Changes the resolution used for

determining the data during the mapping

run. When making your selection please

take into account whether the machine

was configured in the single conveyor or

dual conveyor mode.

Start

The active gantry starts the mapping run

on the selected conveyor track and

automatically saves the data determined

after the mapping run has been

completed successfully.

The values x-ind, y-ind,

xs[µm], ys[µm], xd[µm] and

yd[µm] describe the offset

of the mapping plate after

the mapping run.

Selects gantry 1-4.

Check run

Approaches the mapping

positions for checking purposes.

The values xs[µm], ys[µm],

xd[µm] and yd[µm] describe the

setpoint positions calculated

during the mapping check.

Student Guide HS-50 Advanced I 06/2002 Edition

6 Operating the SITEST Software

6.4.5 Gantry‘s PCB Camera Functions

Call-up of the gantry functions.

Call-up of the display of the

gantry axis functions.

Call-up of the display of the

gantry's calibration functions.

Call-up of the display of the

gantry's PCB mapping

functions.

Call-up of the display of the

gantry's PCB camera

functions.

Return to the main view.

This function can only be selected if

the multicolor camera was selected in

the machine configuration.

Teach PCB camera...

Opens the Teach PCB camera dialog box

and displays the current position of the

gantry that was approached last.

Go to calibration tool position

Moves the active gantry with the PCB

camera mounted to it over the calibration

tool position and switches the screen

display to the PCB camera.

Calibrate camera

Determines the sensor scale (nm/pixel)

and the camera angle.

Pseudo-color image >

Switches the screen display to the PCB

camera to view the result of any

illumination changes that may have been

made.

Here, a functional check of the

camera and the illumination

unit is carried out due to the

fact that the IR illumination

levels involve infrared rays that

are invisible to the human eye.

Reduced brightness

Activate this function in the

case of excessive brightness of

the camera image.

Selects gantry 1-4.

The values ax, bx, cx, ay, by and cy describe a homogenous transformation matrix.

This matrix is the transformation from the machine coordinate system [digits] to the

camera [pixels].

X image scale [nm/pixel]

Indicates the calculation of the xµ values. These denote the dimensions of the pixels [nm]

with respect to the machine axis.

Y image scale [nm/pixel]

Indicates the calculation of the xµ values. These denote the dimensions of the pixels [nm]

with respect to the machine axis.

Angle [1/100*]

Indicates the angular position of the camera with respect to the machine coordinate

system.

06/2002 Edition Student Guide HS-50 Advanced I

6 Operating the SITEST Software

6.5 Revolver Heads

6.5.1 Functions of the Revolver Head

Step star axis

This function is used to index the star.

Every time you click on the button the

star is advanced by one segment. The

positions of the individual segments are

displayed graphically on the screen.

Head cycles performed

Displays the number of head cycles performed during the

head continuous run.

Errors of all segments

Displays the number of errors of all segments.

Errors of segments 1-12

Displays the number of errors for each segment.

Head reference run

Carries out the Reference run on all axes of

the revolver head on the activated gantry.

Swivel out segments/close noz.

Moves the sleeves to the 0-degree position

and closes the vacuum at the nozzles.

Head continuous run

Starts the continuous run and opens a

dialog window displaying the start time and

the completion time.

Opening the screen for the

magazin functions of the

revolver head nozzle changer

Return to the main

view.

Call-up the view for the functions

of the revolver head component

sensor.

Opening the screen for the head

functions of the revolver head

nozzle changer

Call-up of the display of the RV

camera functions.

Call-up of the display of the

mapping functions of the

revolver head.

Call-up of the display of the

functions of the revolver head in

the placement and pick-up

circuit.

Call-up of the display of the

functions of the revolver head in

the holding and reject circuit.

Call-up of the display of the axis

functions of the revolver head.

Call-up of the display of the

functions of the revolver head.

Flag: star axis active

Activates or deactivates the star axis during the head continuous run.

Flag: z-axis active

Activates or deactivates the star axis during the head continuous run.

Flag: d-axis active

Activates or deactivates the star axis during the head continuous run.

Flag: with reject

Activates or deactivates during the head continuous run the approach

of the reject position for discarding the components.

Selects revolver head 1-4.
