06/2002 Edition Student Guide HS-50 Advanced I
6 Operating the SITEST Software
38

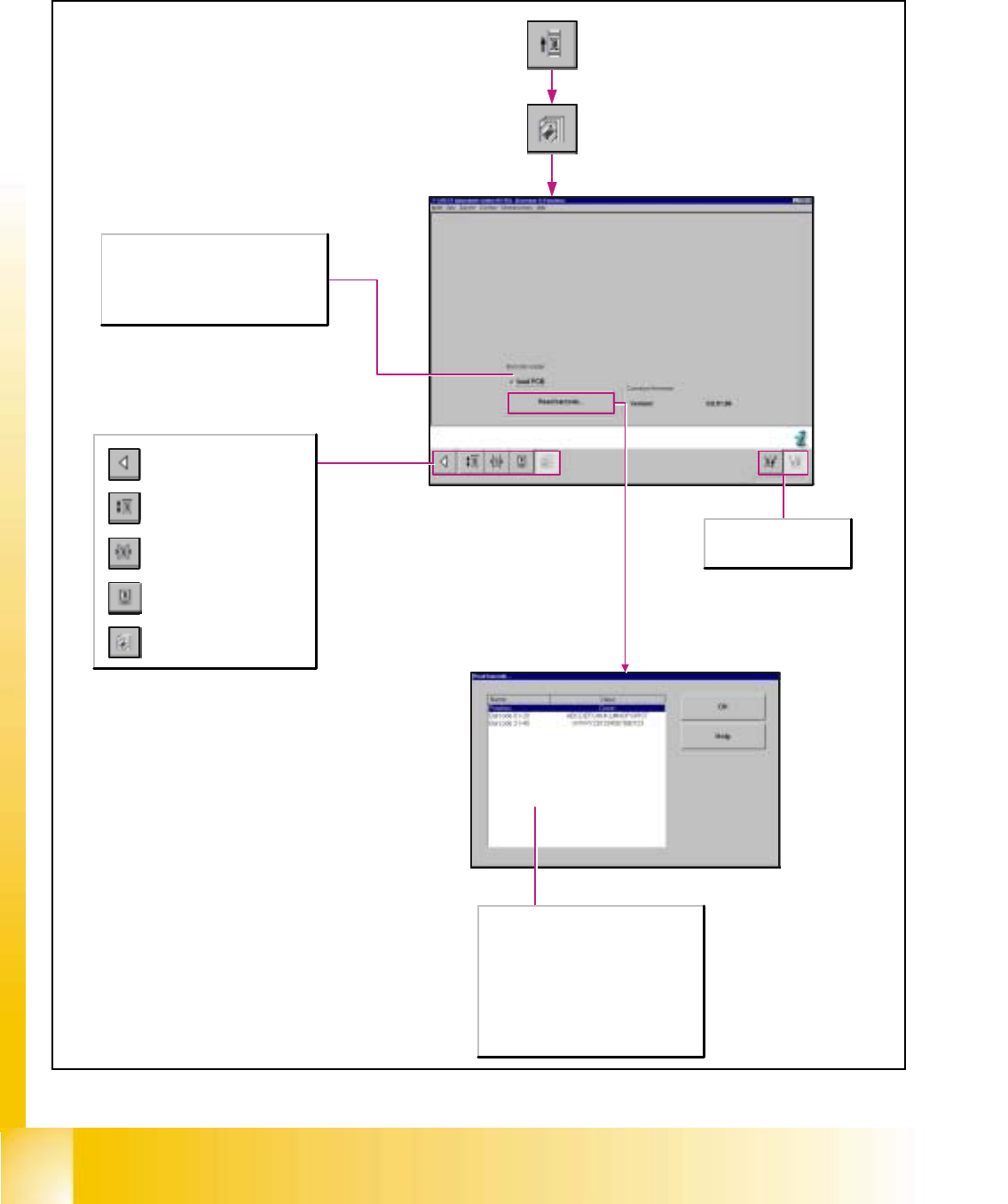

6.6.4 Conveyor Functions
Call-up the Conveyor Functions
view.
Call-up the screen for setting
the conveyor speed.
Not for SIPLACE S-25HM!
Call-up of the display of the
conveyor width settings.
Call-up the screen displaying
the PCB transport functions.
Return to the main view.
Selects PCB conveyor 1/2
(in the case of dual lane
conveyors).
Barcode reader
Load PCB
Activated: The conveyor automatically
transports the PCB through the machine.
Deactivated: The PCB needs to be moved
through the machine manually.
Position
Indicates whether the barcode was read off
the bottom or the top of the PCB.
Barcode 01-20
Displays the first 20 characters of a
barcode with max. 40 digits.
Barcode 21-40
Displays the characters 21-40 of a barcode
with max. 40 digits.
Student Guide HS-50 Advanced I 06/2002 Edition
6 Operating the SITEST Software
39

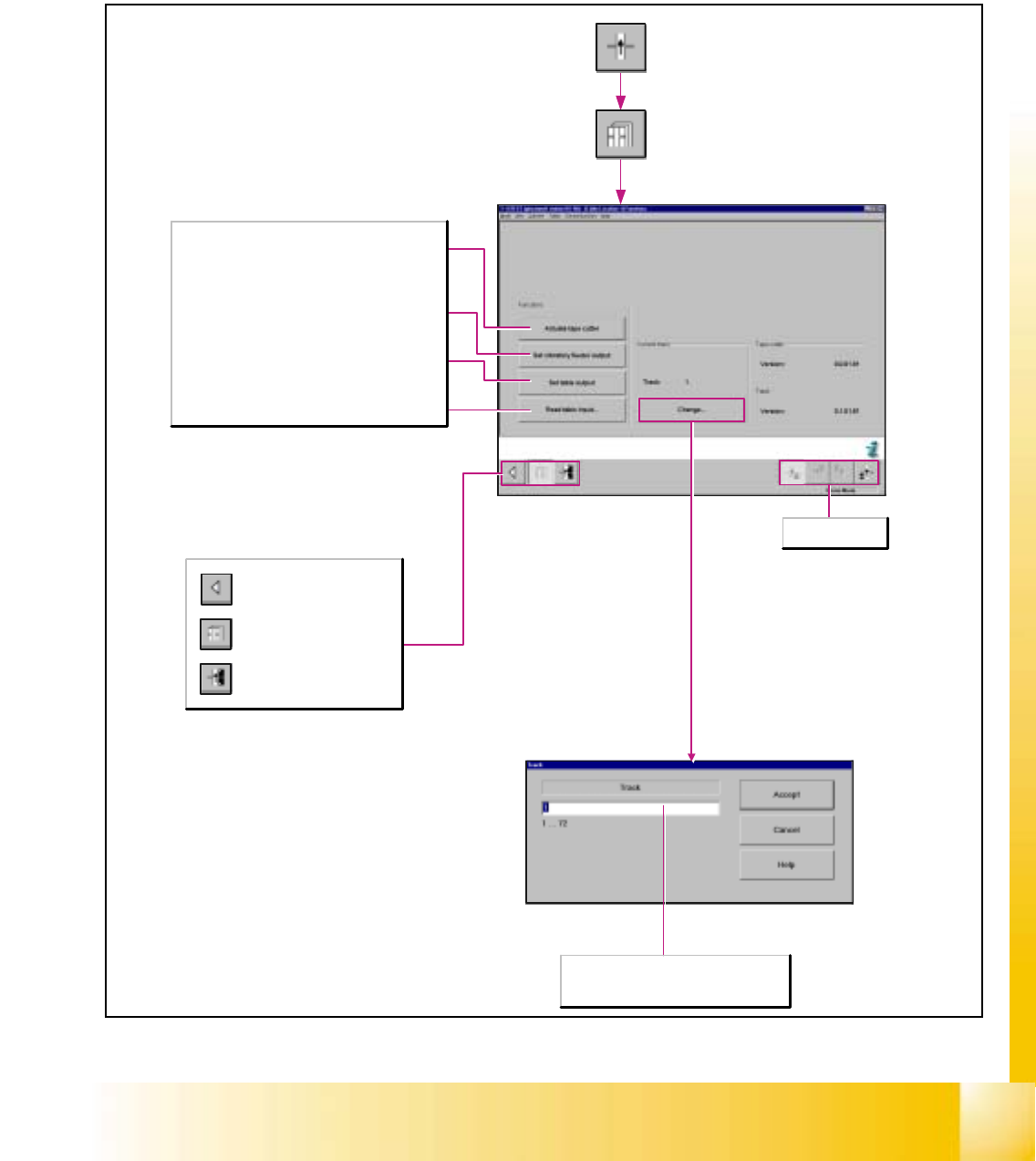

6.7 Tables
6.7.1 Component Table Functions
Call-up of the display of the
component table functions.
Call-up of the display for the
calibration of the component
table pick-up position.
Return to the main view.
Functions
Actuate tape cutter
Moves the tape cutter once to the end position and
back. The tape cutter thereby cuts off the empty tape
material of the component tapes.
Set vibratory feeder output
Sets the output for the selected track and causes a
linear feeder that is set up to oscillate.
Set table output
Sets the output for the selected track.
Read table input...
Displays the input state of the selected track.
Selects component
table 1-4.
Track
In the data entry field enter the desired value
that must lie within the specified value range.
06/2002 Edition Student Guide HS-50 Advanced I
6 Operating the SITEST Software
40
6.7.2 Calibration of the Component Table Pick-up Position
Calibrate...
Determines the x and z positions
for the table side with each track.
Call-up of the display of the
component table functions.
Call-up of the display for the
calibration of the component
table pick-up position.
Return to the main view.
Selects component
table 1-4.
Track
x
Indicates the position value determined by calibration as well
as the previous position value (in parentheses) in x-direction.
y
Indicates the position value determined by calibration as well
as the previous position value (in parentheses) in y-direction.
Approach
Moves the PCB camera over the fiducial on track 1/72 and
switches the screen display to the PCB camera.
