Studen t Guide HS-50 A dvanced I 06/200 2 Edition 7 Calibration 7 0 f ig 7 .3 - 7 Dis play "G antr y fu ncti on s" 0 fig 7. 3 - 8 Cal ibr atiop n of po siti on 7.3.4 Calibrat ion of Calib r ation Position Exam …
06/2002 Edition Student Guide HS-50 Advanced I
7 Calibration
6
0

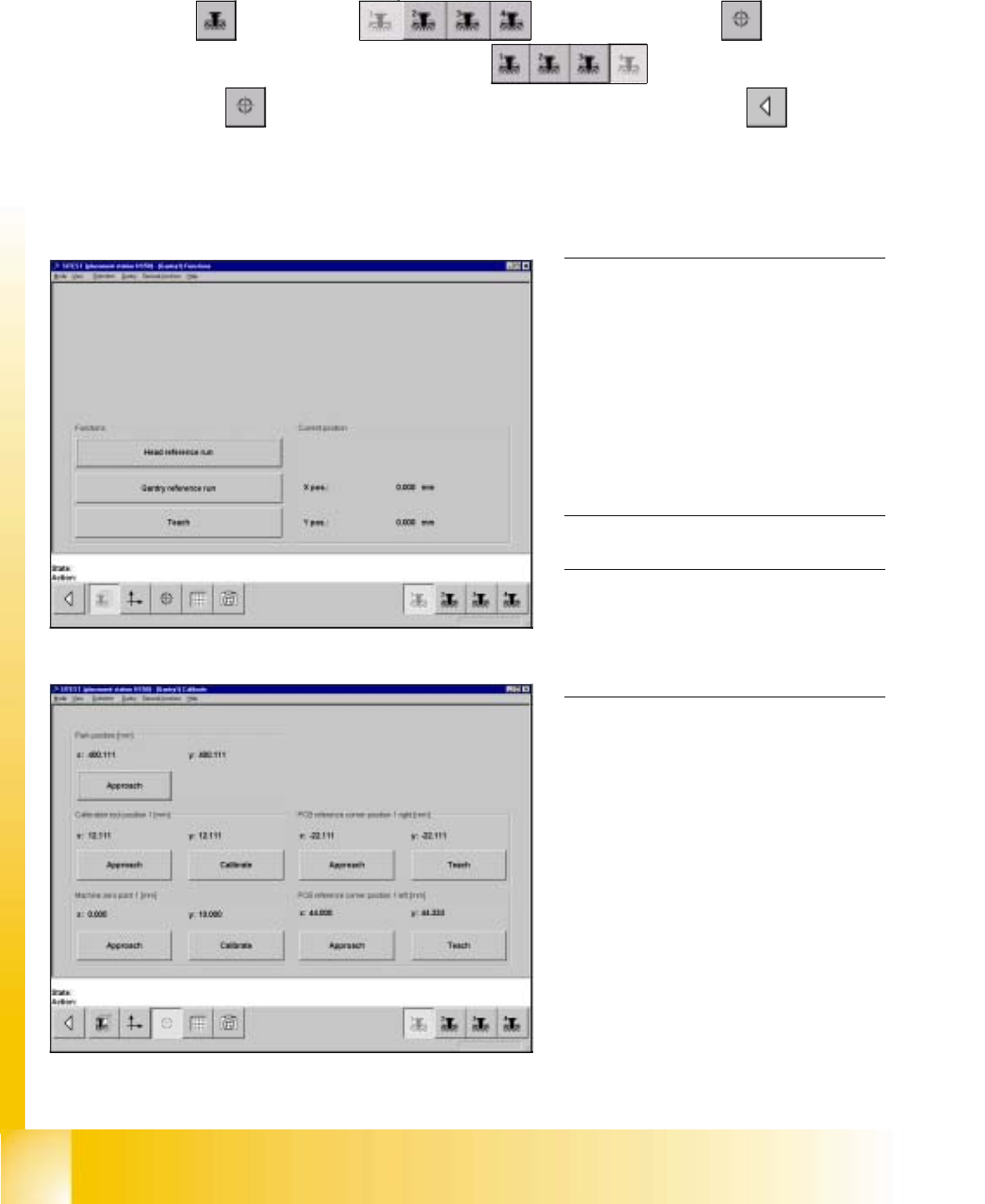

fig 7.3 - 5 Display "Gantry functions"
0
fig 7.3 - 6 Display "Calibration of position"
7.3.3 Calibration of Machine Zero Point
Example: Placement area 1. 7
SITEST: 7
à Select "Gantry" ==> "Gantry 1" ==> "Calibrate position" ==>
"Calibrate (field "Machine zero point")" ==> "Gantry 4" ==>
"Calibrate position" ==> "Calibrate (field "Machine zero point 1")" ==> "Main view" ==>
"Settings" ==> "Save machine data".
NOTE
Make sure that all calibration data for the
C&P camera, the segment offset II (C&P -
PCB camera offset) and the PCB camera
have been determined.
The calibration of the machine zero point
must be performed with both gantries
each in placement area 1 or 2,
respectively. 0
NOTE
Proceed the same way with gantries 2 and
3, in order to determine the machine zero
point in placement area 2. 0
Student Guide HS-50 Advanced I 06/2002 Edition
7 Calibration
7
0

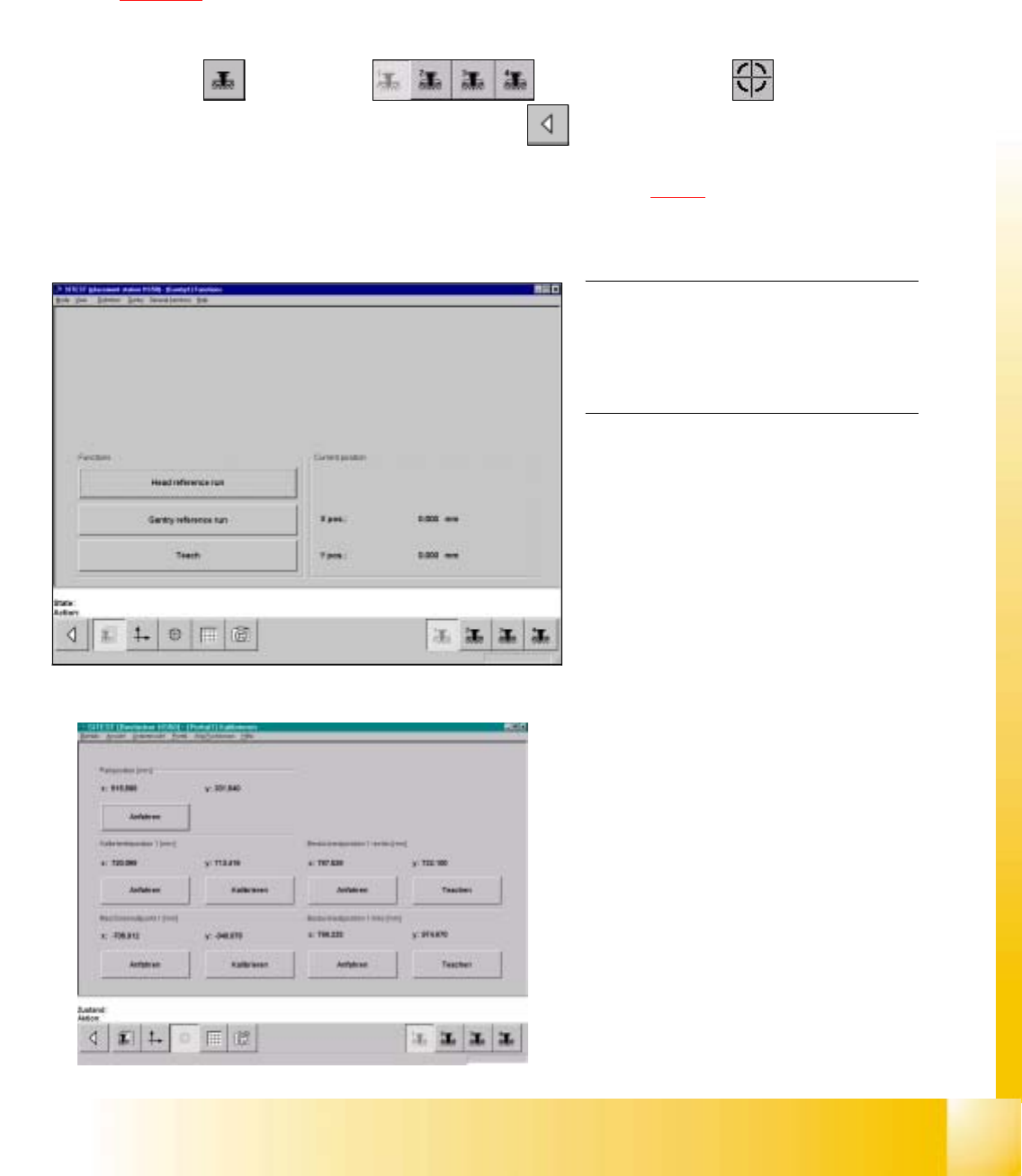

fig 7.3 - 7 Display "Gantry functions"
0
fig 7.3 - 8 Calibratiopn of position
7.3.4 Calibration of Calibration Position
Example: Placement area 1. 7
7
à Insert the calibration tool in to the "calibration bag 1" in placement area 1.
(See
fig 7.1 - 1).
SITEST: 7
à Select "Gantry" ==> "Gantry 1" ==> "Calibrate position" ==>
"Calibrate (field "calibration position 1")"==> "Main view" ==> "Settings" ==> "Save machine data".
à Proceed under section "Calibration of the Pick-Up Height". (See section 7.3.5.3).
NOTE
Proceed the same way with gantry 2, in
order to determine the calibration position
in placement area 2. 0
06/2002 Edition Student Guide HS-50 Advanced I
7 Calibration
8
0

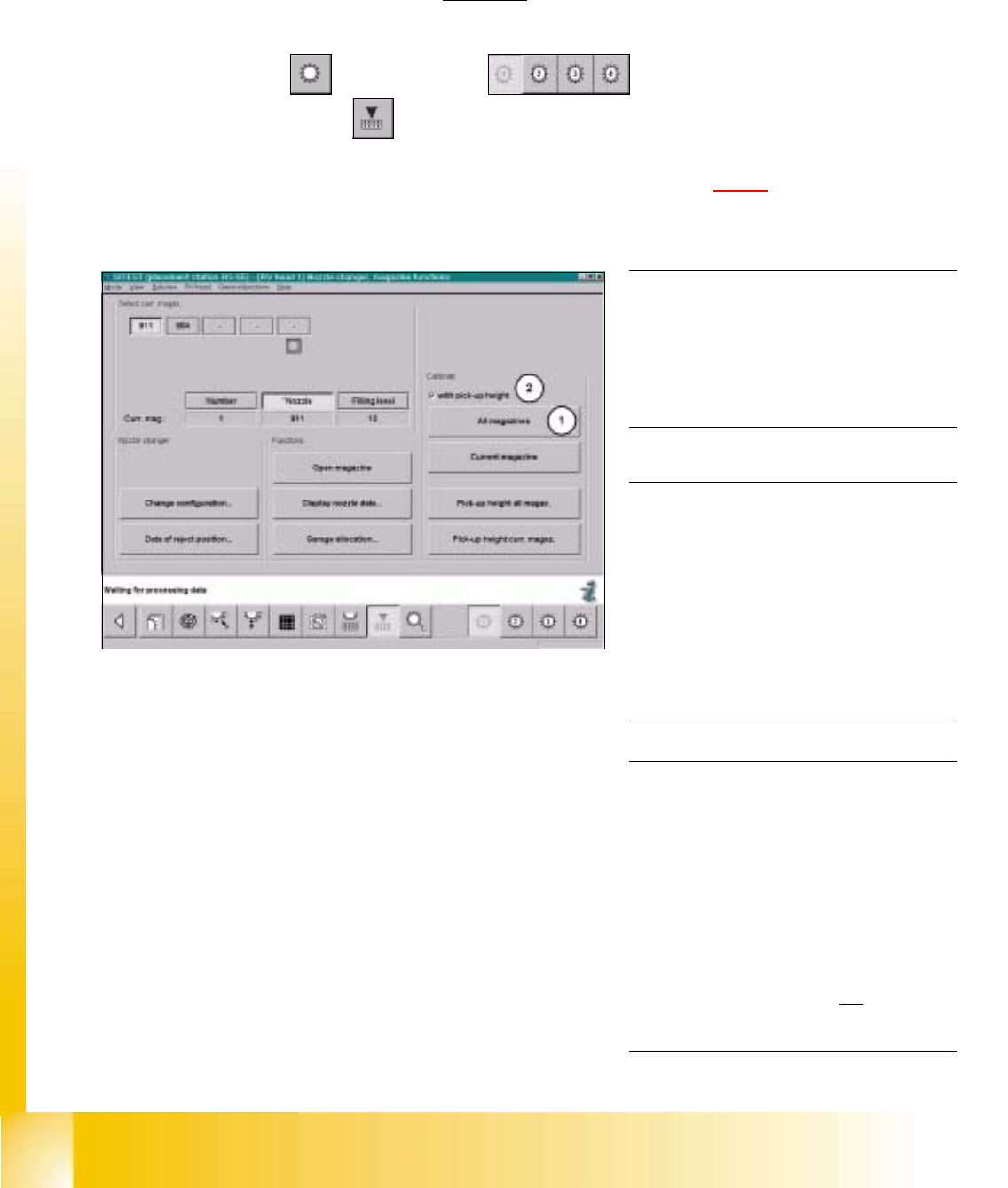

fig 7.3 - 9 Display "Calibration of nozzle Changer"
0
0
7.3.5 Calibration Collect & Place Head Nozzle Changer
7.3.5.1 Complete Calibration
Example: Nozzle changer for C&P Head 1, completely supplied with all 5 or 10 magazines. 7
SITEST: 7
à Select "C&P Heads" ==> "C&P Head 1" ==>
"C&P Head nozzle changer" ==> "All magazines (1)" (with pick up height (2)).
à Have you deactivate the button "with Pick-Up Height" Proceed see section 7.3.5.3).
NOTE
Make sure that the calibration data for the
PCB camera, the segment offset II (C&P
PCB camera offset) and the machine zero
point have been determined already. 0
NOTE
A nozzle changer contains 5 magazines
maximum, with 12 nozzle garages each.
For every single C&P Head, 2 nozzle
changers may be installed. During
calibration these will be handled like one
single nozzle changer with 10 maga-
zines. 0
NOTE
The function "Complete calibration" is
used, if the nozzle changer is completely
loaded with all 5 or 10 magazines.
All 12 nozzles must be on the C&P Head.
With the help of the function "Calibrate
current magazine", x- and y-values must
be individually determined for each
magazine if the changer is not
completely
loaded. 0
