Studen t Guide HS-50 A dvanced I 06/200 2 Edition 7 Calibration 17 0 7. 3.9. 6 Mi nimu m T raver sing Pa th X-A xis Gantr y 1 ( 4) à M anually , move the gantry 1 (4) towards the def lection unit X, until b oth proximity…
06/2002 Edition Student Guide HS-50 Advanced I
7 Calibration
16
0

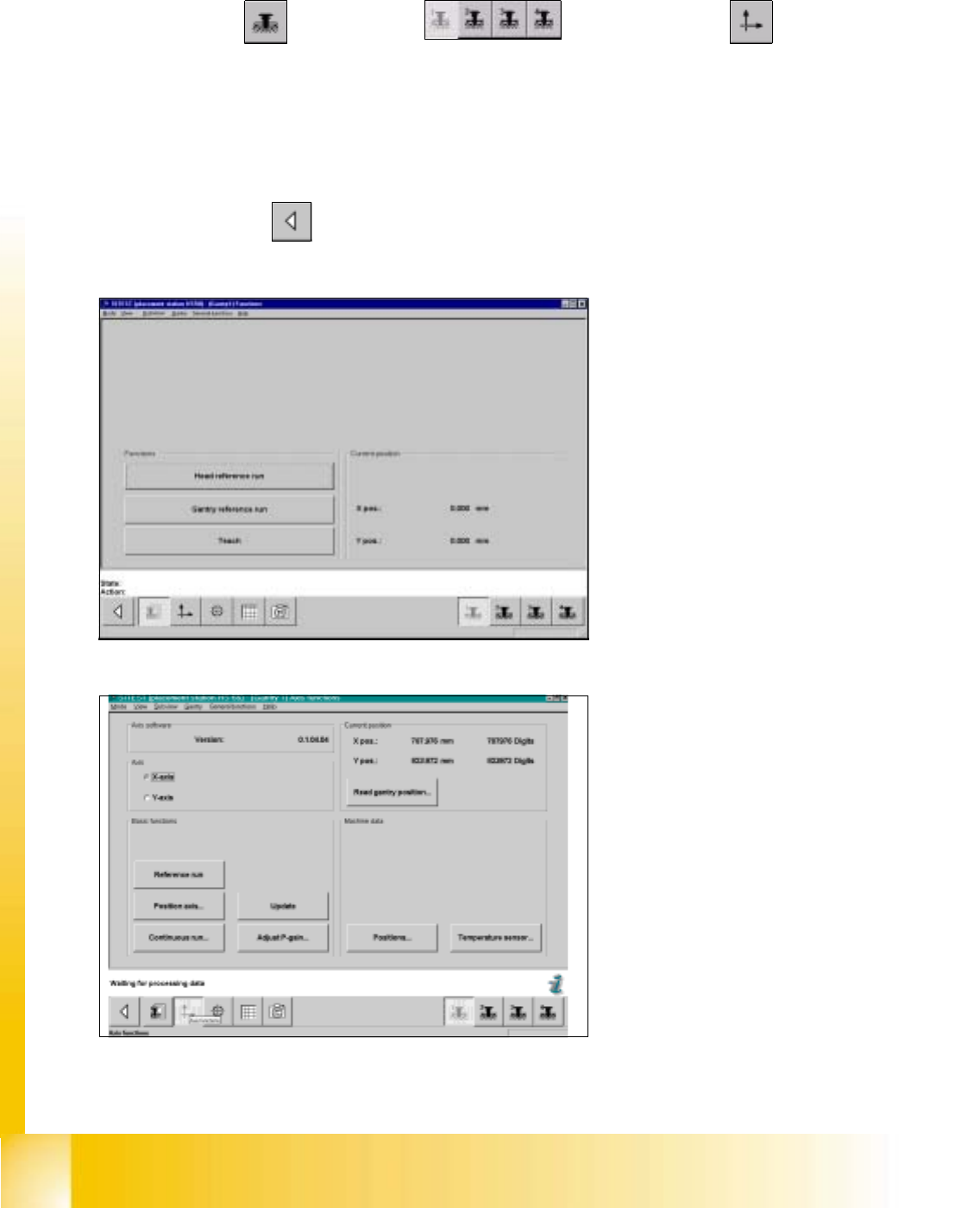

fig 7.3 - 20 Display: "Gantry functions"
0
fig 7.3 - 21 Display: "Axis Functions"
0
0
7.3.9.5 Maximum Traversing Path X-Axis Gantry 1 (4)
SITEST: 7
à Select "Gantry" ==> "Gantry 1(4) ==> "Axis Functions" ==> "X-Axis" ==>
"Read Gantry position".
à Manually, move gantry 1 (4) towards X-motor, until both proximity switches are off.
à Now, manually move gantry 1 (4) towards the deflection unit - X until one proximity switch is just on.
à Edit this value for the actual current position of the X-axis under "Positions...."==> "Maximum position [dgts]"
(-200) and accept the value.
à Select "Main View" ==> "Settings" ==> "Save machine data"==>"Reference run" .
Student Guide HS-50 Advanced I 06/2002 Edition
7 Calibration
17
0
7.3.9.6 Minimum Traversing Path X-Axis Gantry 1 (4)
à Manually, move the gantry 1 (4) towards the deflection unit X, until both proximity switches are off.
à Now, manually move gantry 1 (4) towards the X-motor, until a proximity switch just is on.
SITEST: 7
à Select "Gantry" ==> "Gantry 1 (4) ==> "Axis Functions" ==> "X-axis" ==>
"Positions ...".
à Edit the value for the current position of the x-axis under "Minimum position [dgts]" and accept the value.
à Perform a reference run.
à Select "Main View" ==> "Settings" ==> "Save machine data".
7.3.9.7 Maximum Traversing Path X-Axis Gantry 2 (4)
à Manually, move gantry 2 (4) towards deflection unit-X, until both proximity switches are off.
à Now, manually move gantry 1 (4) towards the x-motor, until a proximity switch is on.
SITEST: 7
à Select "Gantry" ==> "Gantry 2 (4) ==> "Axis Functions" ==> "X-axis" ==>
"Positions ...".
à Edit the value for the current position of the x-axis under "Maximum position [dgts]" and accept the value.
à Perform a reference run.
à Select "Main View" ==> "Settings" ==> "Save machine data".
7.3.9.8 Minimum Traversing Path X-Axis Gantry 3 (4)
à Manually, move gantry 3 (4) towards the deflection unit-X, until both proximity switches are off.
à Now, manually move gantry 3 (4) towards the x-motor, until a proximity switch just is on.
SITEST: 7
à Select "Gantry" ==> "Gantry 3 (4) ==> "Axis Functions" ==> "X-axis" ==>
"Positions ...".
à Edit the value for the current position of the x-axis under "Minimum position [dgts]" and accept the value.
à Perform a reference run.
à Select "Main View" ==> "Settings" ==> "Save machine data".
06/2002 Edition Student Guide HS-50 Advanced I
7 Calibration
18
0

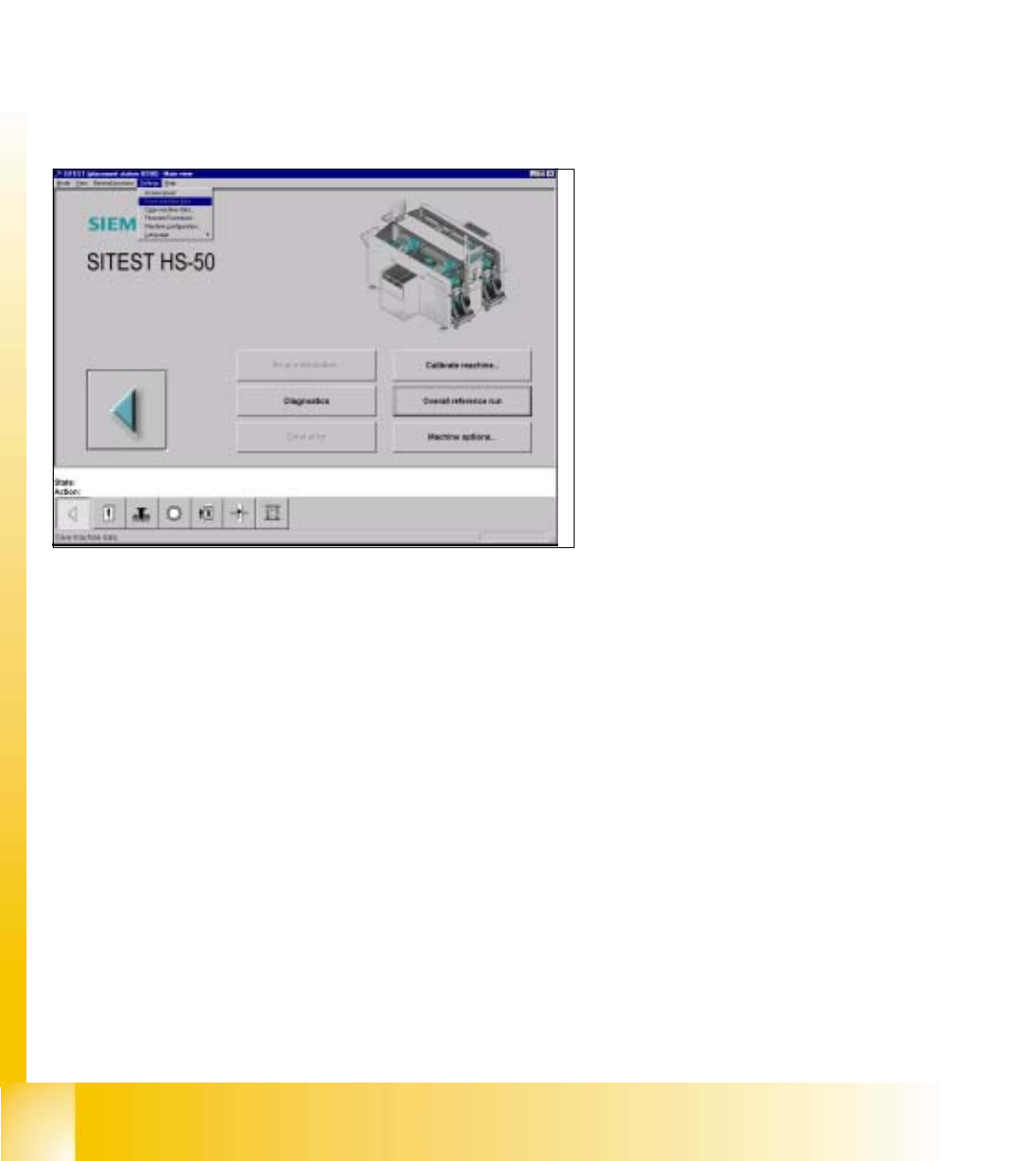

fig 7.3 - 22 Save machine data
7.3.10 Save Machine Data
