9 Conveyor System
1
9 Conveyor System
9.1 Settings and Illustrations
9.1.1 SLIO Module I/O Modules and PCB Conveyor
NOTE
SLIO = Serial linked IN- / Output 9
9

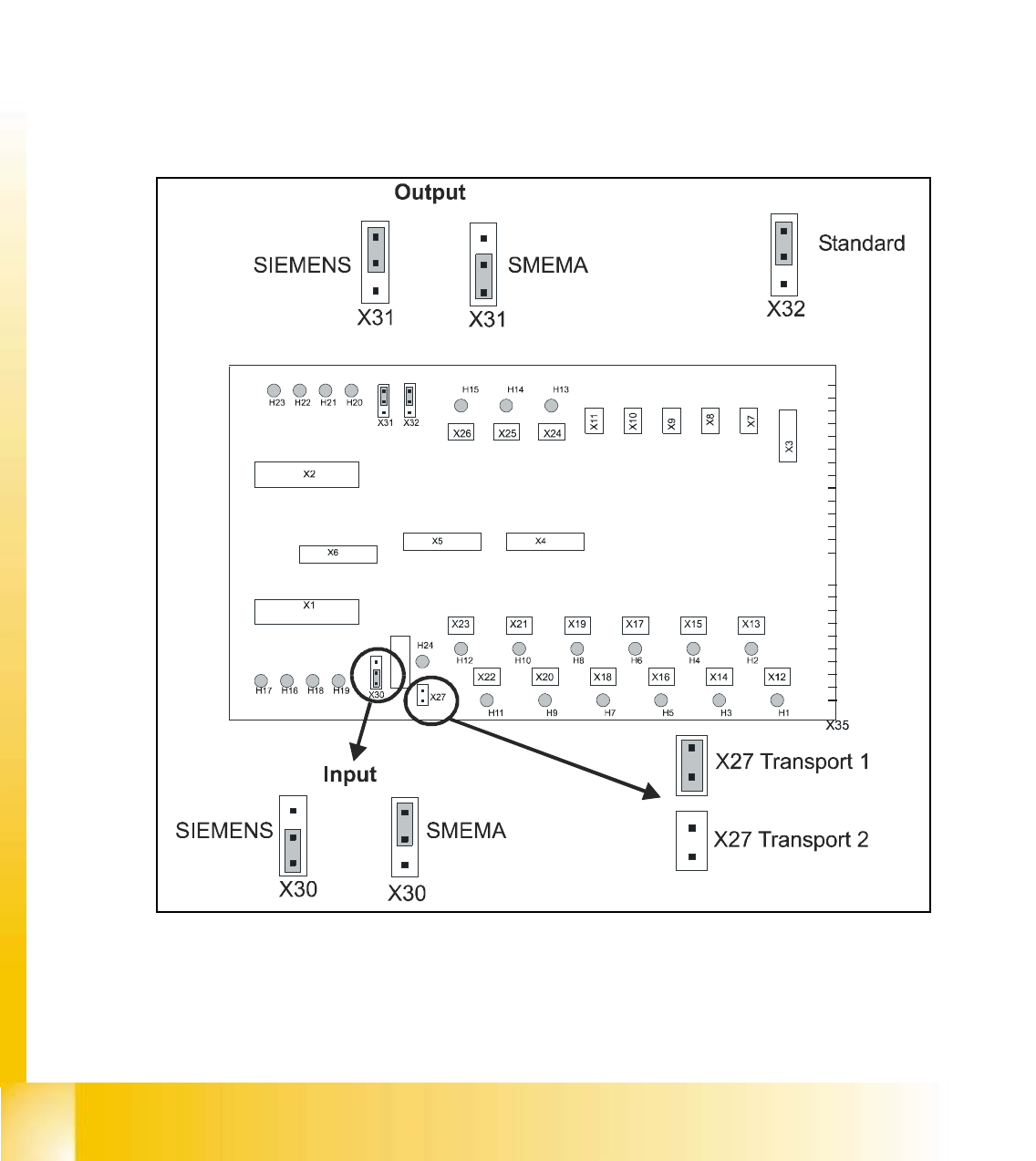

fig 9.1 - 1 Jumper settings SLIO module
06/2002 Edition Student Guide HS-50 Advanced I
9 Conveyor System
2
KEY:
(1) SLIO module 1 = A2
(2) SLIO module 2 = A3
(3) SLIO module 3 = option
(4) SLIO module 4 = option
(5) SLIO module 5 = PCB conveyor 1
(6) SLIO module 6 = PCB conveyor 2 (only with dual conveyor)
9.1.2 Conveyor Control
9
fig 9.1 - 2 Jumper setting, conveyor control
Transportsteuerung / conveyor control
Mat.Nr. / mat. no: 00329219 - 02
/
transport 1
/
transport 2
