9.6.4 Transport Interface HS-50

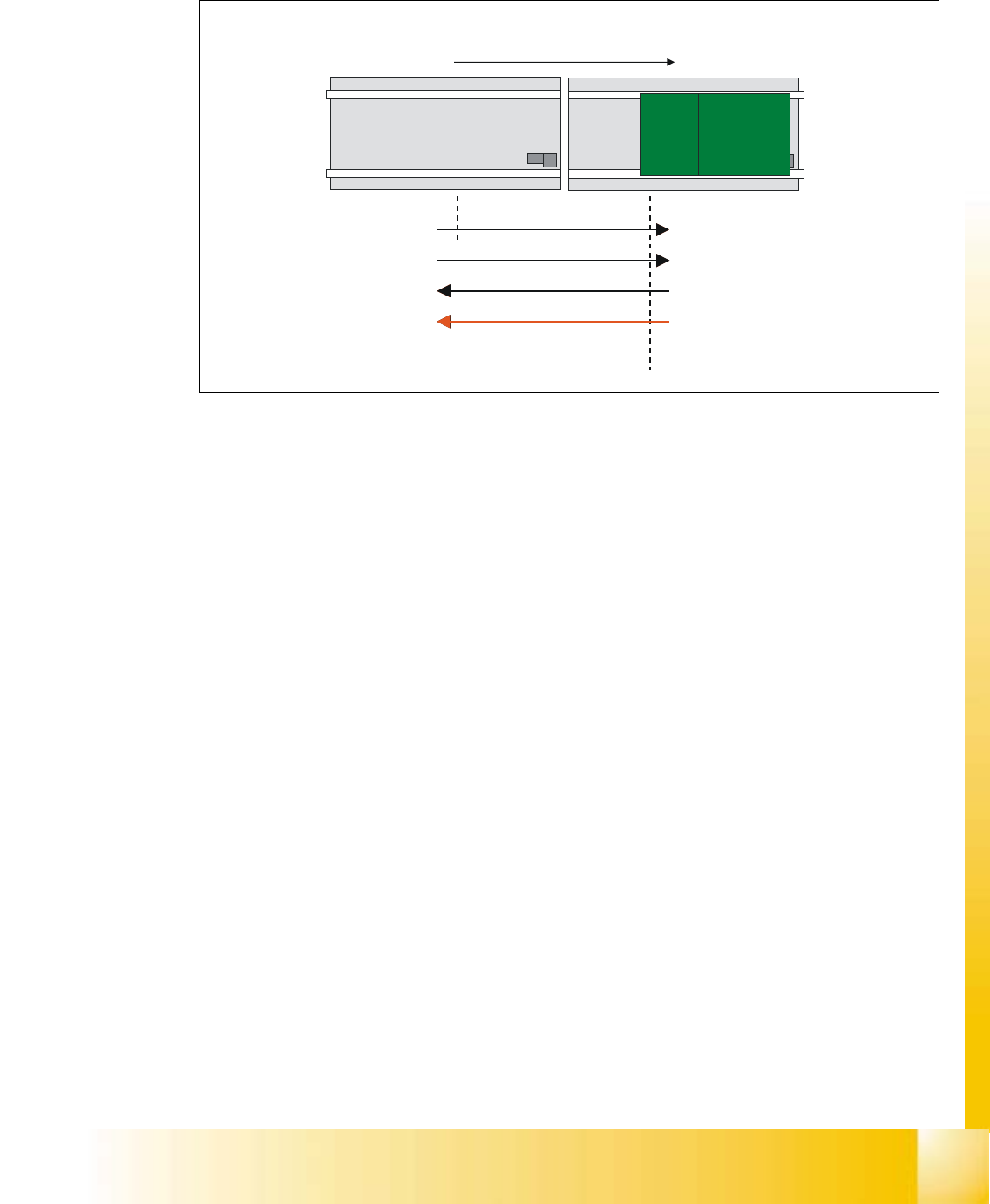

Fig. 9.6 - 4 Transport Interface HS-50
1
1
sensor sensor
Transport direction
output conveyor
previous station
input conveyor
next station
Station 1 Station 2
Request
Passed
Permission
Arrived
Request
Passed
Permission
Arrived
0
0
0
1 0
PCB PCB
6. Reaching the sonar bero
in the input conveyor,
station 2 confirms the
arrival with „Arrived“ and
at the same time resets
„Permission“.
7. Finally Station 1 pulls
back the „Passed“
output.
1
8. With the board arrived
the conveyor in station 2
stops working.
