11 Pneumatic Cutter and Empty-Tape Duct
10
Fig. 11.4.2 Overview: Removing and Installing the Cover Plate and the Tape Deflector
CAUTION
Tighten the screws to the correct torque -> see Table, Fig. 11.4.2. 11
Student Guide HS-50 Advanced I Edition 06/2002
11 Pneumatic Cutter and Empty-Tape Duct
11
Key to Fig. 11.4.2:
1. Cover holder
2. Cover plate holder, left
3. Cover plate holder, right
4. Screws to fasten the cover plate holder:
2 cape screws M4 x 8 DIN 84 or 2 countersunk srews M4 x 6 DIN 965 each
5. Screws to fasten the cover plate (incl. tape deflector) -> do not loosen
6. Tape deflector (with movable blade underneath them)
7. Tape deflector holder, left
8. Tape deflector holder, right
9. Screws to fasten the tape deflector holders: 2 socket hex head cap screws M4 x 35
each on LH and RH
10. Screws to fasten the tape deflector: 1 countersunk screw each -> do not loosen
11. Holddowns (at left and right) with spacers inserted underneath them
12. Deflector plate
13. Screws to fasten the deflector plate: 4 socket hex head cap screws M4 x 8
14. Screws to fasten the cutter on the machine frame
4 socket hex head cap screws M 6 x 25 *)
15. Any disks or plates installed underneath them
16. Stationary blade
17. Rubber-metal vibration damper
18. Any disks and spring washer installed underneath them
*) Loosen these screws only when removing/installing the cutter (see Section 11.6.1).
Edition 06/2002 Student Guide HS-50 Advanced I
11 Pneumatic Cutter and Empty-Tape Duct
12

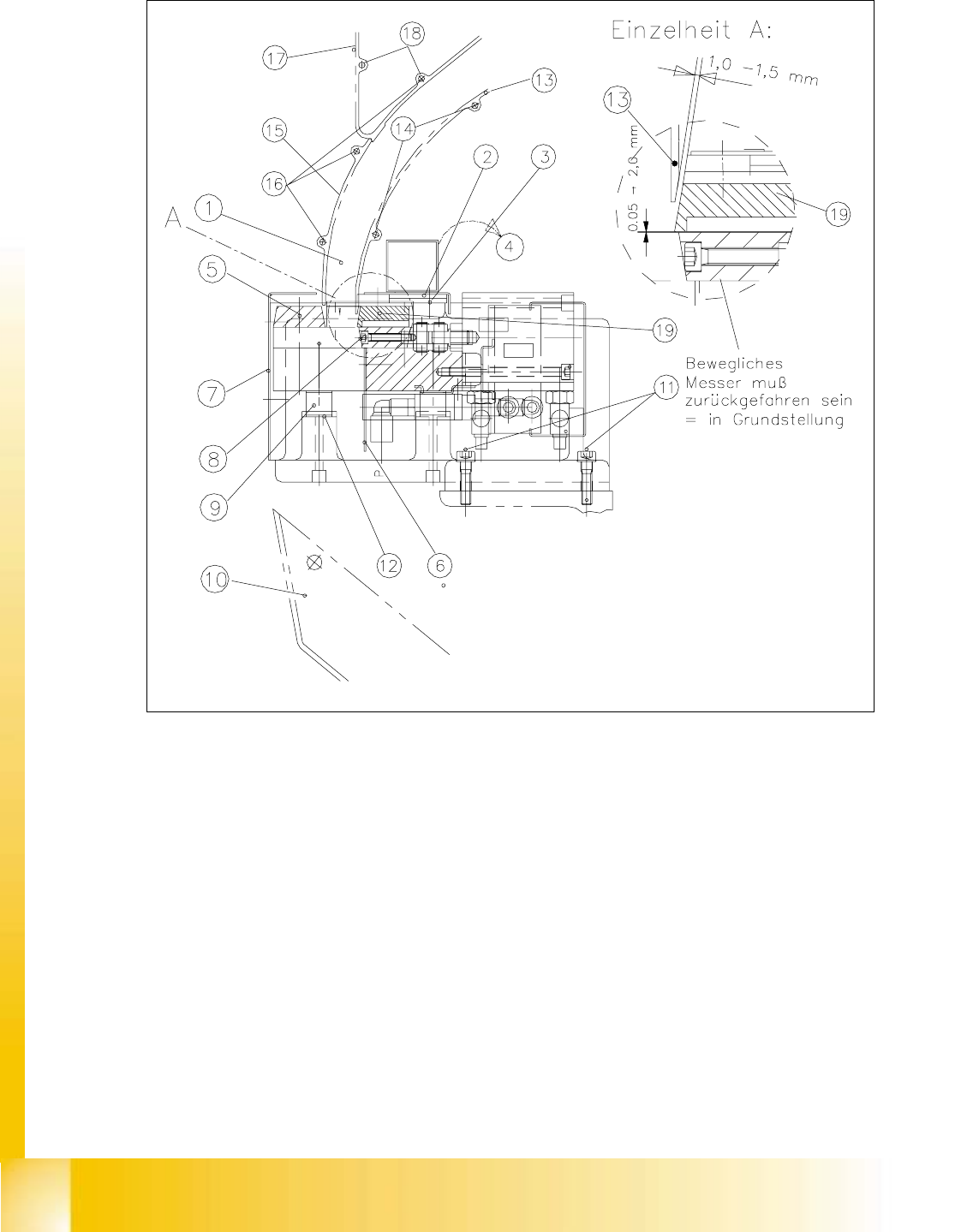

Fig. 11.4.3 Cross Section of Empty-Tape Duct and Pneumatic Cutter
