06/2002 Edition Student Guide HS-50 Advanced I
12 Preventive Maintenance
30
Student Guide HS-50 Advanced I 06/2002 Edition
12 Preventive Maintenance
31
Clean the linear guides of the x and y axes
a Use the SIPLACE cleaning cloth to thoroughly clean the linear guides of the x and y axes over
their entire length.
a Use a lint-free cloth to remove any dislodged dirt from the linear guides.
a Oil and protect the linear guides with a new SIPLACE cleaning cloth.
Clean the running surface of the thrust bearing of the y axis
s Use a SIPLACE cleaning cloth to clean the running surface of the thrust bearing.
Cleaning the Y-axis friction surface
d Use a SIPLACE cleaning cloth to clean the Y axis friction surface.
: Close the protective cover.
: Repeat these tasks in every feeder area.
06/2002 Edition Student Guide HS-50 Advanced I
12 Preventive Maintenance
32

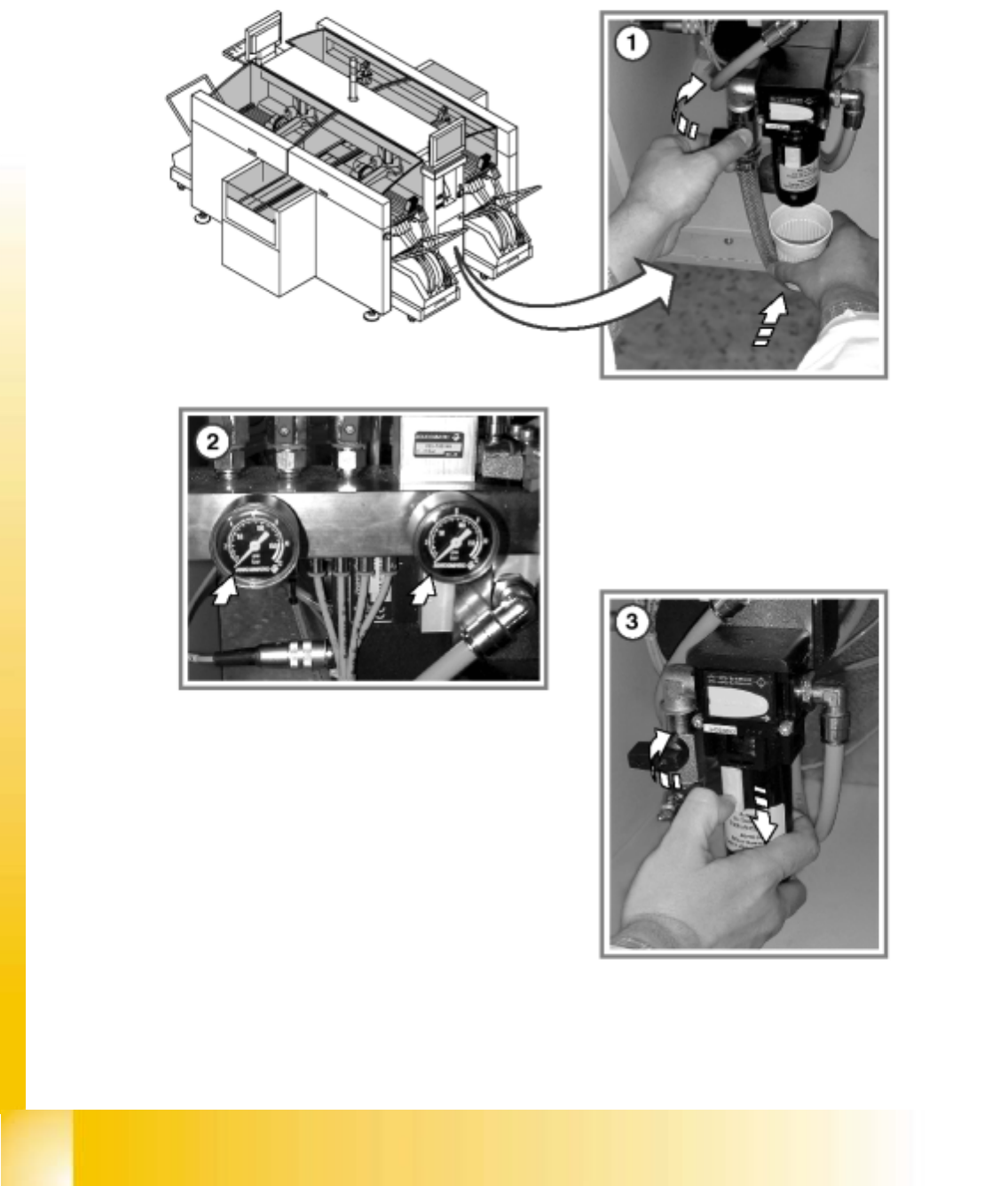

12.8 Maintenance work every 2 months
12
