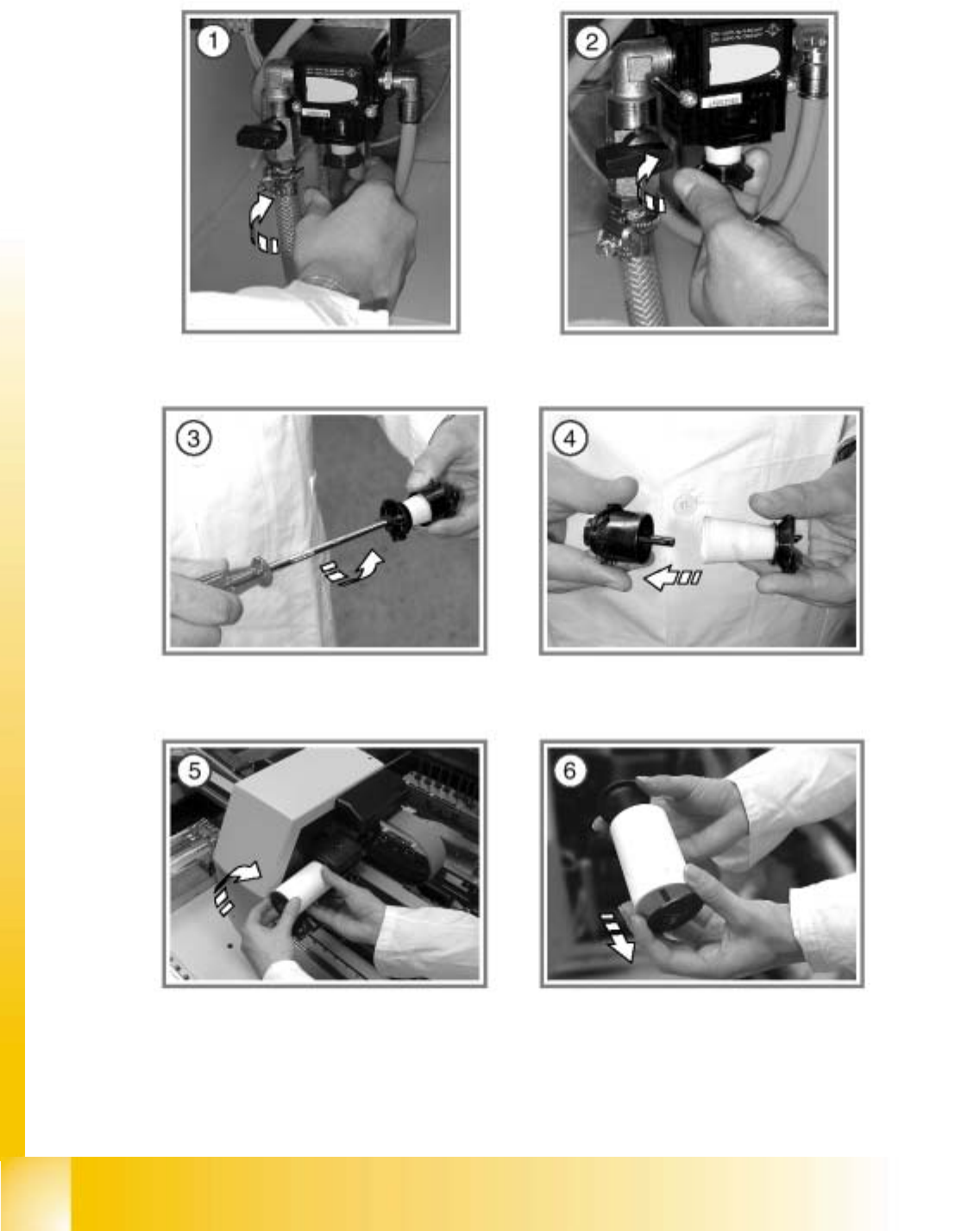

a Remove the condensate tank by turning it counter-clockwise and pulling down (bayonet fitting).
s Unscrew the filter casing from the compressed air maintenance unit.
d Loosen the Phillips screw and then remove the filter from the filter casing.
f Replace the filter if it is dirty.
: Reverse the sequence described above to fit the filter and the filter casing.
: Then open the main compressed air valve.
Check or replace the silencer
g Check the silencer of the Collect&Place head for dirt.
If it is discolored, turn the holder counter-clockwise to detach it.
h Reverse the sequence described above to replace the dirty filter and fit a new filter.
