Clean and grease the toothed belts of the X and Z axes
: Remove any dirt from the toothed belts of the X and Z axes.
a Grease the toothed belt for the X axis using a short-bristled brush dipped in ISOFLEX TOPAS
NCA 52.
s Grease the toothed belt for the Z axis using a short-bristled brush dipped in ISOFLEX TOPAS
NCA 52.
: Move the axes back and forth to evenly distribute the grease over the toothed belts.
Maintain the component table
d Clear the feeder area.
: Use a vacuum cleaner to remove loose components from the component table.
f Use a whetstone to remove any unnevenness on the magnetic bar.
06/2002 Edition Student Guide HS-50 Advanced I
12 Preventive Maintenance
38
Student Guide HS-50 Advanced I 06/2002 Edition
12 Preventive Maintenance
39

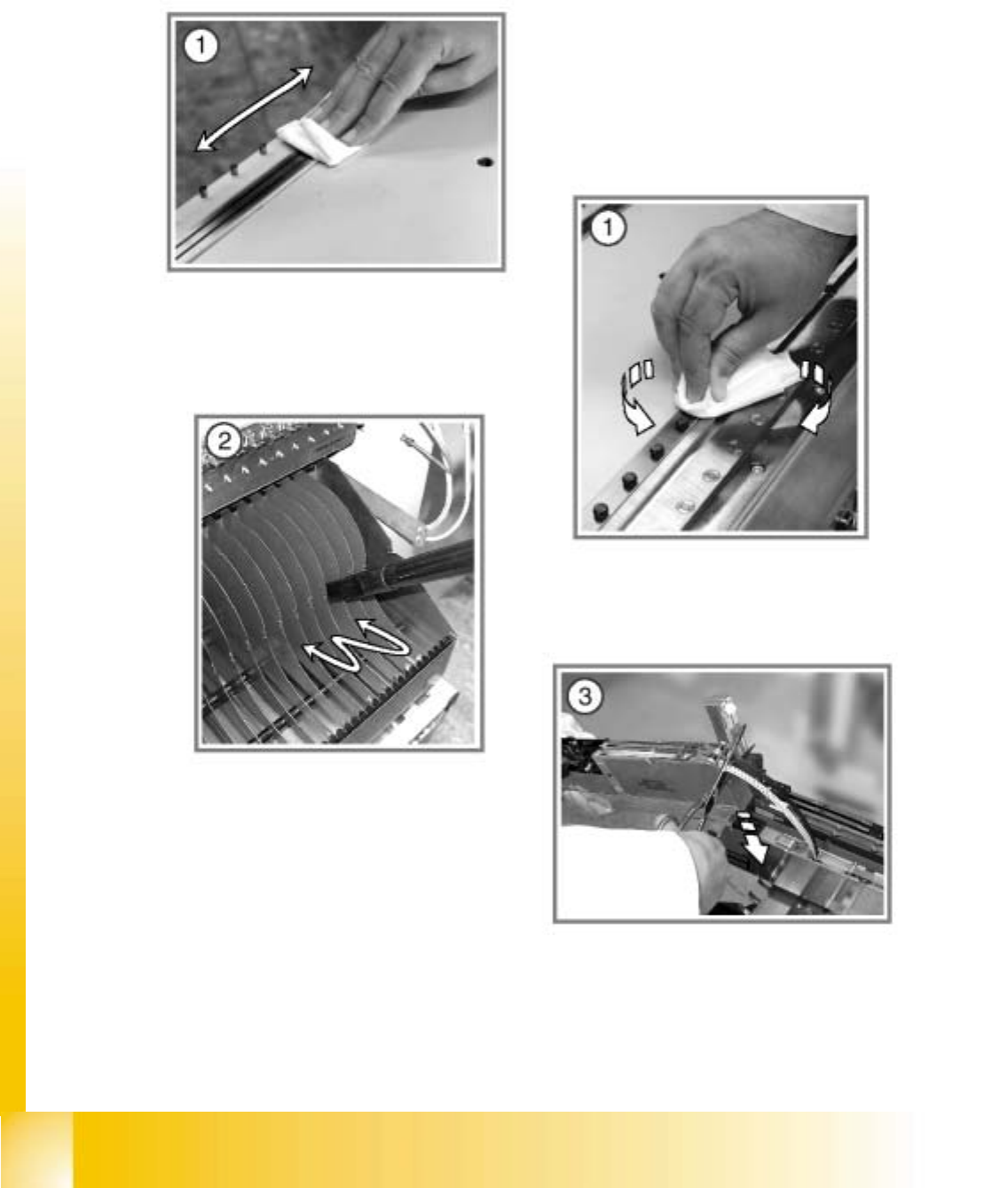

a Use a lint-free cloth sprayed with WD 40 to protect the feeder area.
s Use a vacuum cleaner to remove any loose components from the tape container, and remove
any adhesive labels and tapes that are no longer needed.
d Cut the protruding used tape off flush with the feeder and empty the component drawer on
8mm S feeders.
: Place the feeder on the feeder area once more.
Make sure that the conveyor is in the right location and is connected correctly.
12
: Close the protective cover.
: Switch the placement system on at the main switch.
: Repeat these tasks in every feeder area.
