Student Guide HS-50 Advanced I 06/2002 Edition
12 Preventive Maintenance
39
a Use a lint-free cloth sprayed with WD 40 to protect the feeder area.
s Use a vacuum cleaner to remove any loose components from the tape container, and remove
any adhesive labels and tapes that are no longer needed.
d Cut the protruding used tape off flush with the feeder and empty the component drawer on
8mm S feeders.
: Place the feeder on the feeder area once more.
Make sure that the conveyor is in the right location and is connected correctly.
12
: Close the protective cover.
: Switch the placement system on at the main switch.
: Repeat these tasks in every feeder area.
06/2002 Edition Student Guide HS-50 Advanced I
12 Preventive Maintenance
40
12.9 Maintenance work every 4 months
Structure of the 12 segment collect&place head / DLM1

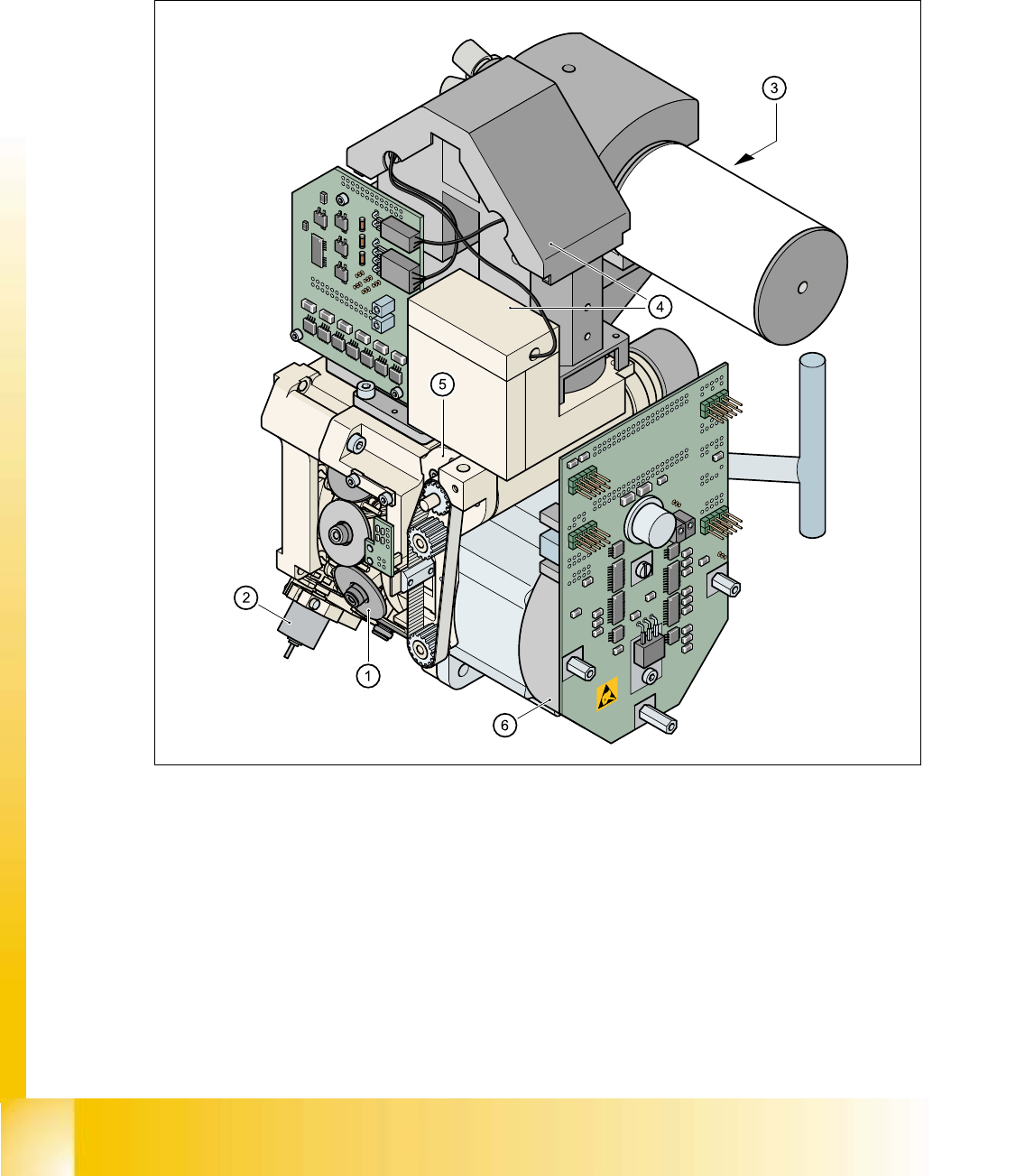

Abb. 12.9 - 1 Structure of the 12-segment collect&place head / DLM1
12
(1) Star with 12 sleeves (2) Motor for "Reject" valve adjustment drive
(3) Turning station (4) Component vision module
(5) Z-axis drive (6) Star motor
Student Guide HS-50 Advanced I 06/2002 Edition
12 Preventive Maintenance
41
You will need the following tools, consumables and spare parts for the maintenance tasks every
4 months:
– Pliers in service box (Item no. 00346929-01)
– Brush with short bristles
– Set of Allen keys
– Cottonwool buds, lint-free (Item no. 00352931-01)
– Ethyl alcohol
– Cloths, lint-free
– ISOFLEX TOPAS NCA52 (Item no. 00328369-01can 1kg, 00330850-01 tube 50 g)
– Unisilkon L250L (Item no. 00310259-01)
– Syringe with Klüber Structovis GHD (Item no. 00367071-01)
– Set of cleaned sleeves
– Set of cleaned / new valve plungers
– Toothed belt of Z axis (Item no. 00334936-01)
– Distributor block (Item no. 00319827-02)
– O-ring of turning station (Item no. 00320043-01)
– Toothed belt of turning station (Item no. 00320041-01).
