06/2002 Edition Student Guide HS-50 Advanced I
12 Preventive Maintenance
52
Student Guide HS-50 Advanced I 06/2002 Edition
12 Preventive Maintenance
53

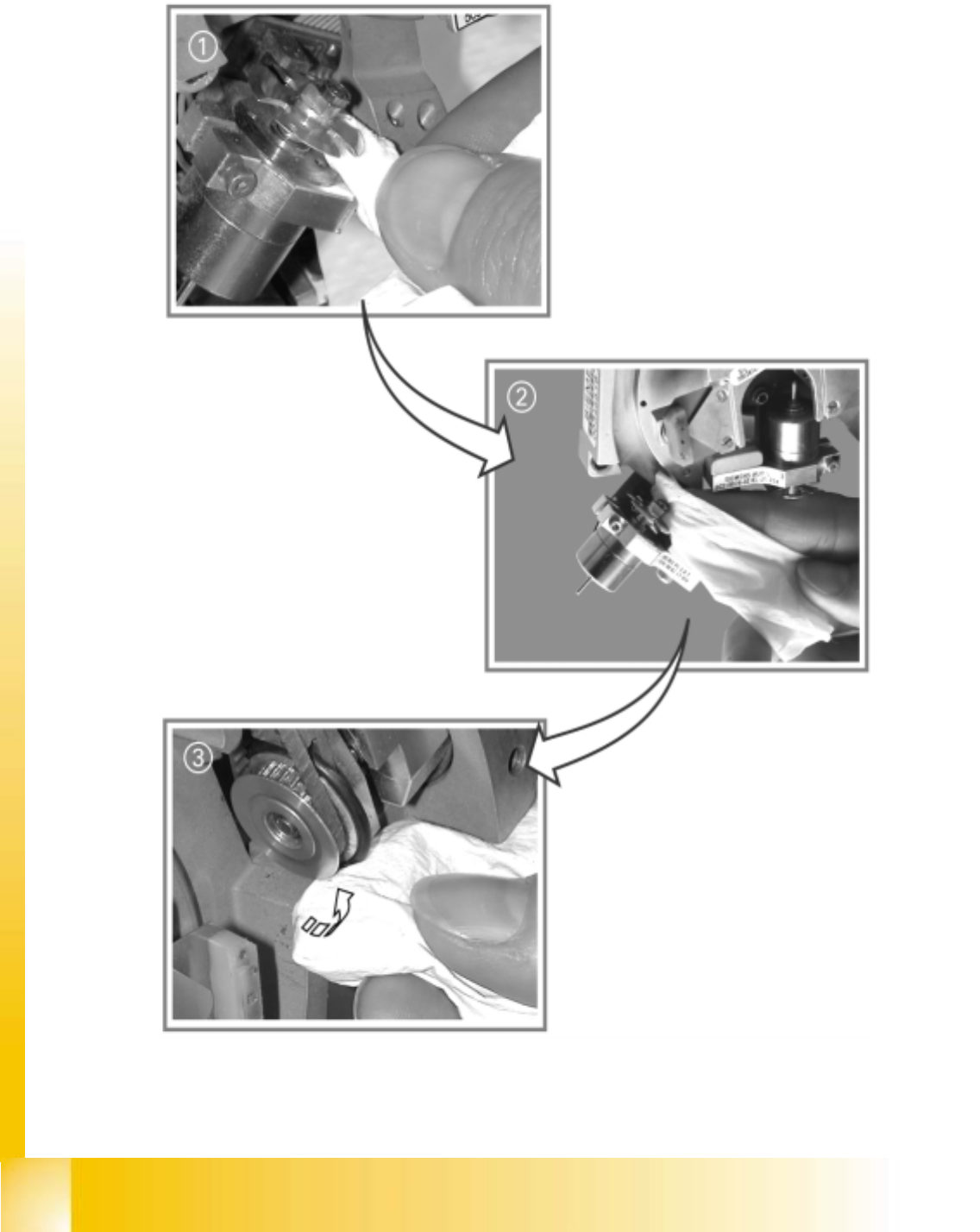

Valve actuators
a Wipe the three valve actuators clean using a dry, lint-free cloth.
: At the same time clean the disk and the gap between the disk and the motor bracket.
s Clean the ball bearing using a dry, lint-free cloth.
: Check the ball bearing for damage and that it is functioning correctly.
: Remove any visible dirt.

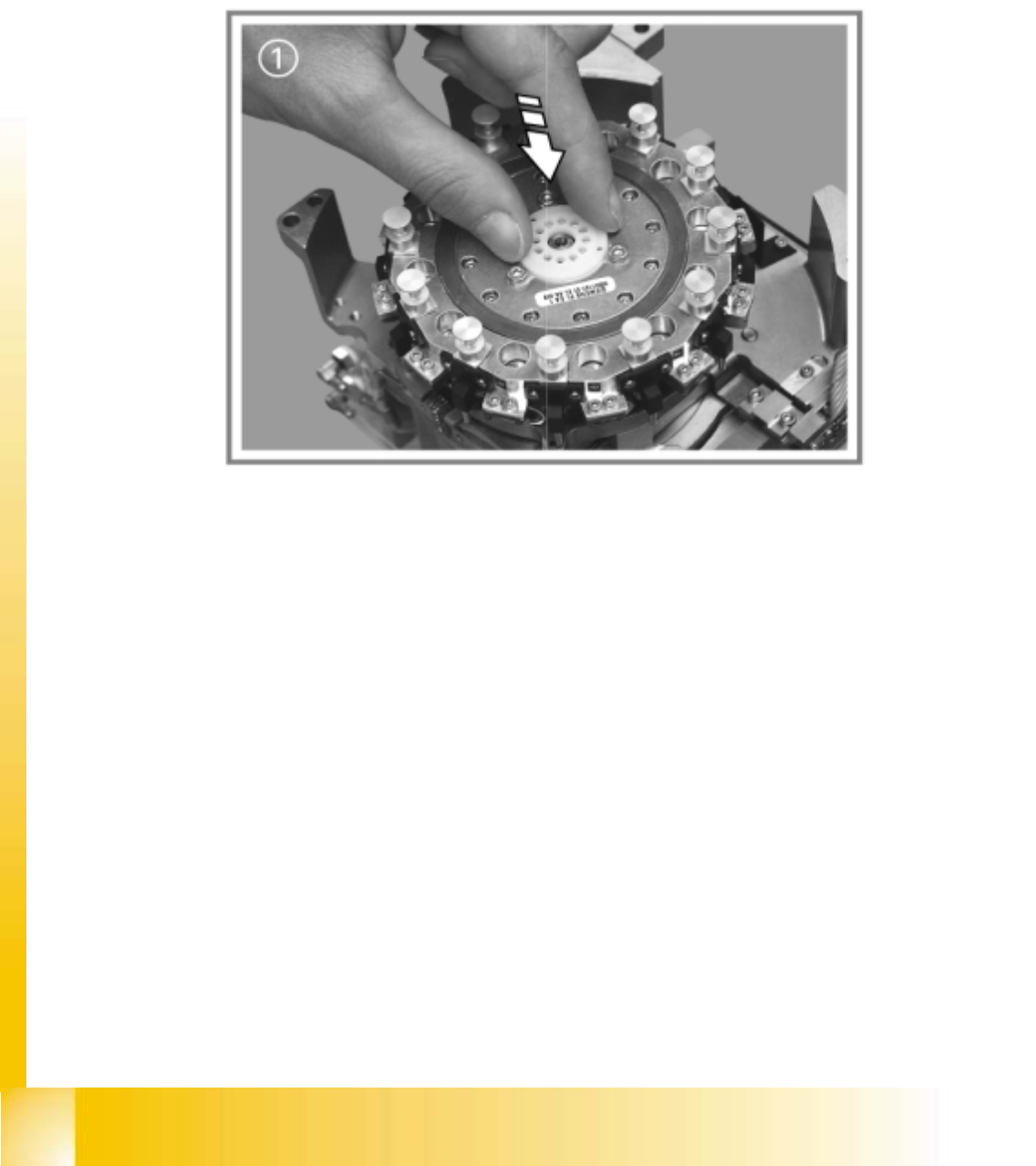

Turning station
d Clean the black O-ring on the turning station with a lint-free cloth lightly moistened with ethyl
alcohol.
: Check the O-ring for damage. Replace it if necessary.
: Check the toothed belt for damage. Replace it if necessary.
12
The turning station can be cleaned while still installed using a cottonwool bud moistened with ethyl
alcohol.
06/2002 Edition Student Guide HS-50 Advanced I
12 Preventive Maintenance
54
