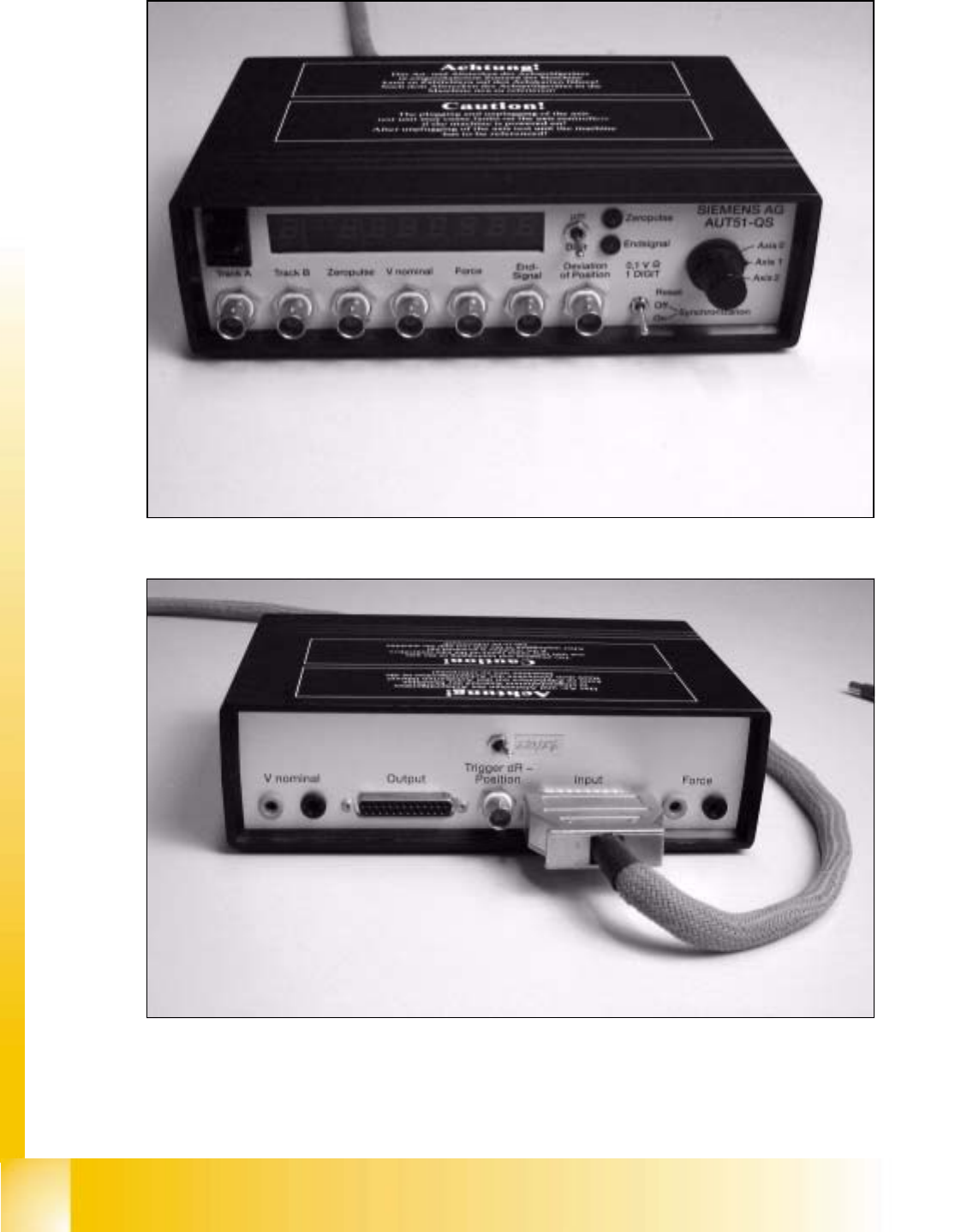

fig 20.3 - 2 SIPLACE axis test box, front view
20
fig 20.3 - 3 SIPLACE axis test box, back view
Student Guide HS-50 Advanced I 06/2002 Edition
20 Appendix
5
20.3.2 Track Signal Tester HS-50
20

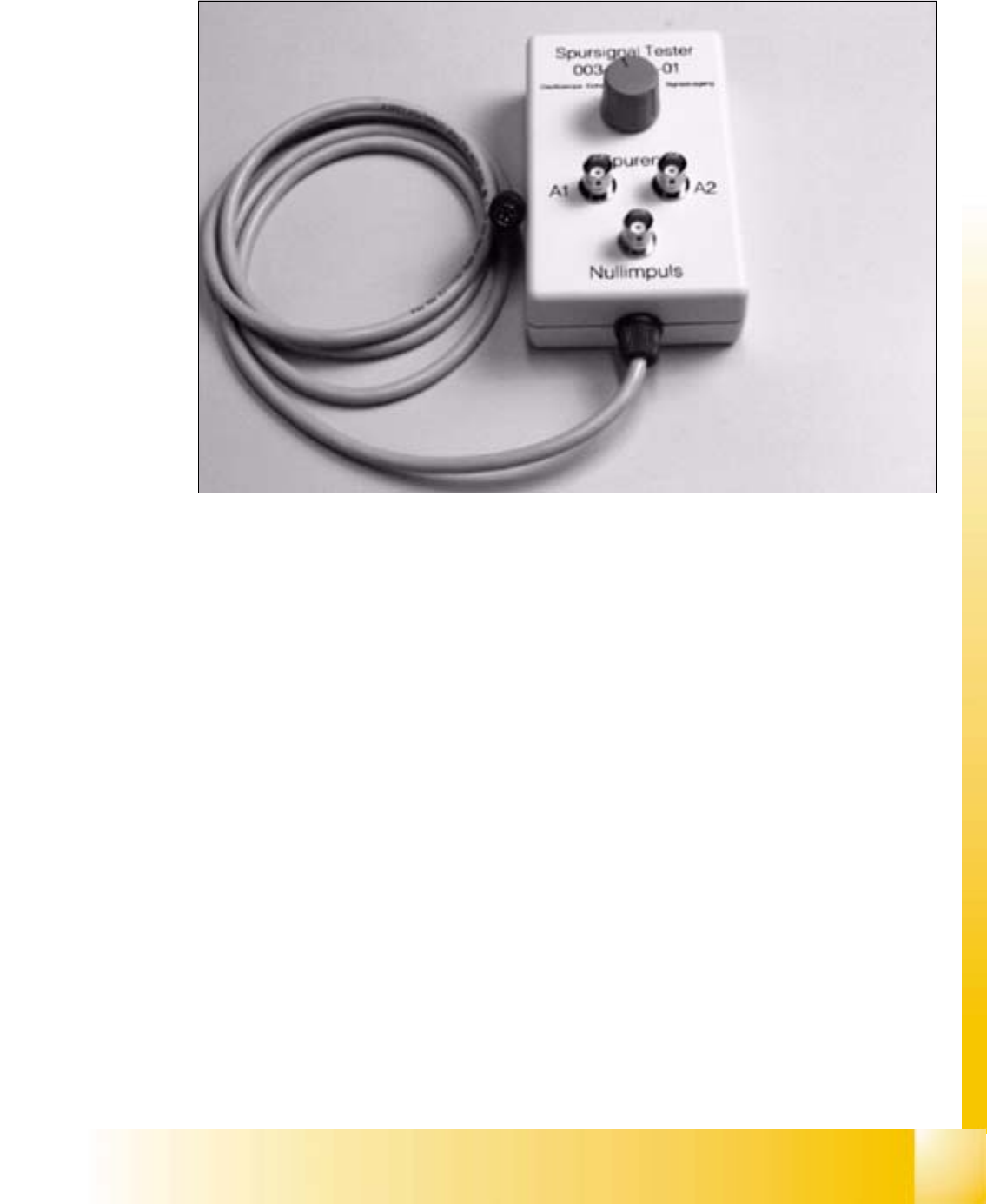

Fig. 20.3 - 4 Track signal tester HS-50 Item-No.: 00322510-01
Application: 20
Testing of track signals of incremental measuring systems of gantry axes on HS-50 machines.20
20
06/2002 Edition Student Guide HS-50 Advanced I
20 Appendix
6
20.3.3 Belt Tension Tester
20

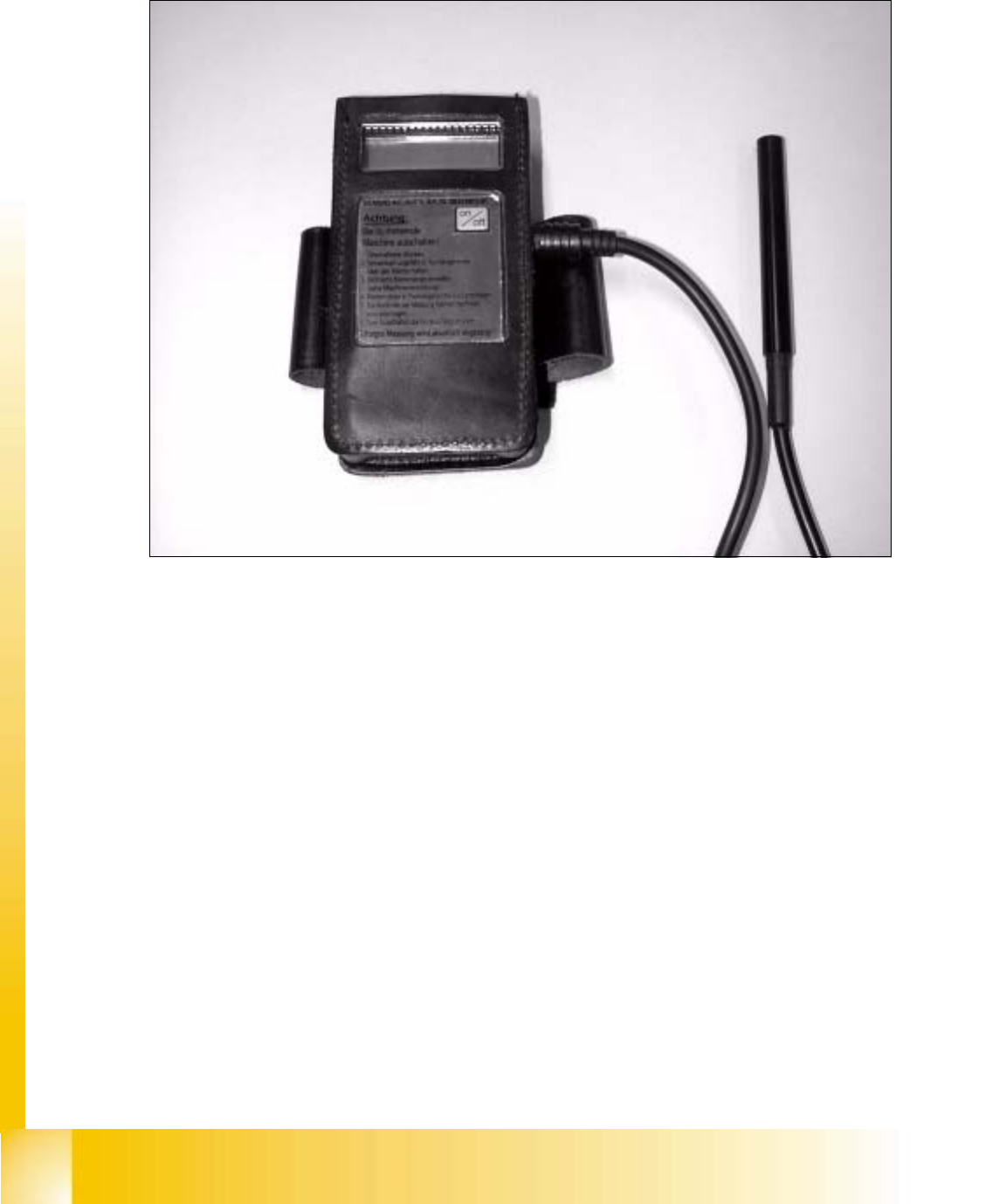

Fig. 20.3 - 5 Belt tension tester Item-No.: 00326015-01
Application: 20
The belt tension tester is used for the adjustments of belt tensions of the toothed belts on the
placement system. 20
