Student Guide HS-50 Advanced I 06/2002 Edition
20 Appendix
7
20.3.4 SIPLACE Compressed Air Tester
20
fig 20.3 - 6 Compressed air tester GDH 14, item no: 00311487-01
Application: 20
The compressed air tester is used for the adjustment of the blast air on the C&P head. 20
Compressed air tester, including a cable for SIPLACE 80 S15 / F3: Item no: 00313523-01 20
Compressed air tester, without cable, for all other SIPLACE systems: Item no: 344807-01 20
06/2002 Edition Student Guide HS-50 Advanced I
20 Appendix
8
20.3.5 Feeder Location Test Unit
20
fig 20.3 - 7 Feeder location test unit
Application: 20
The feeder location test unit is used to check the connections of the feeders on the communication
unit of the component table. 20
Student Guide HS-50 Advanced I 06/2002 Edition
20 Appendix
9
20.3.6 Power Supply for Mounting of the Star.
20

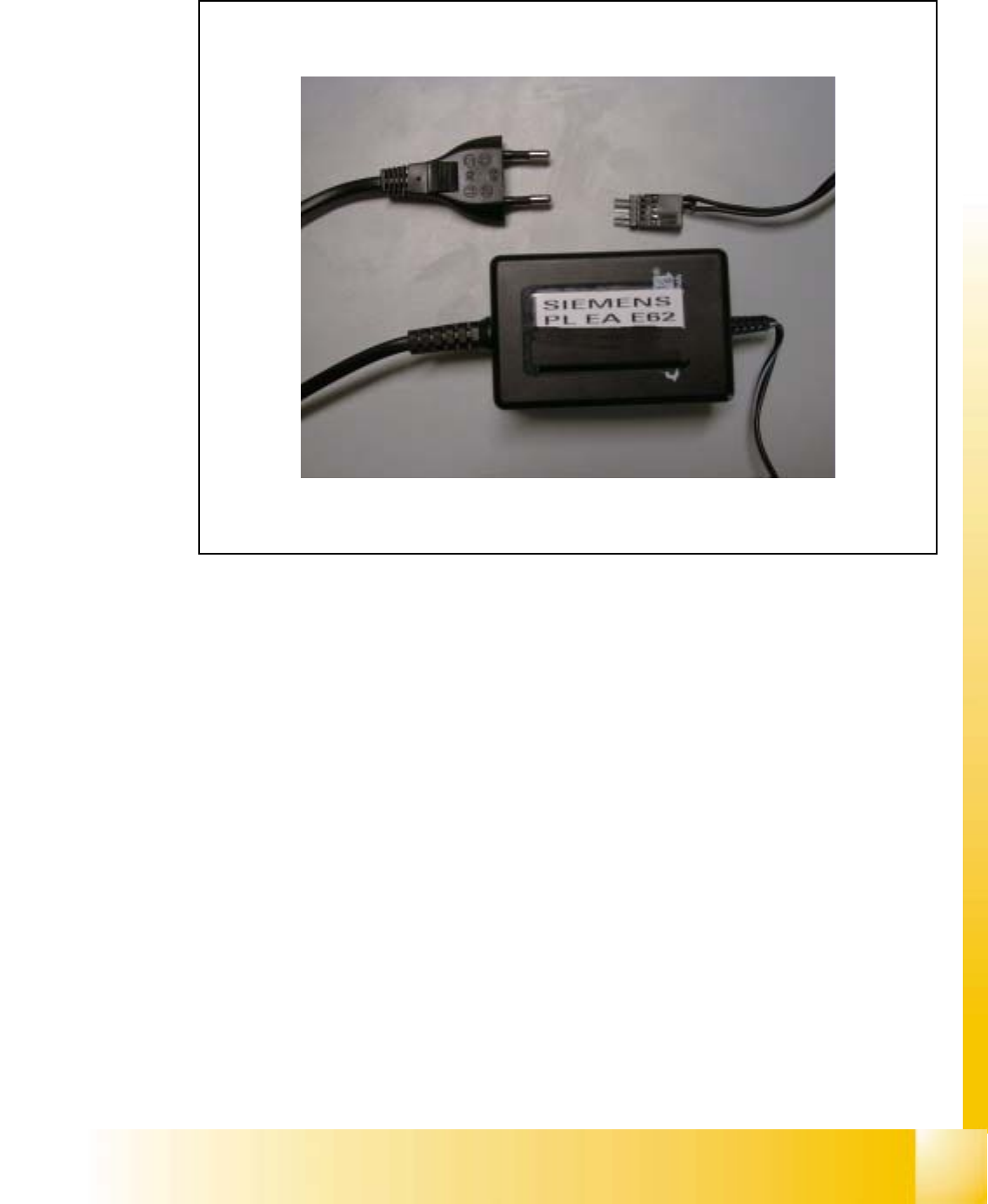

fig 20.3 - 8 Power supply calibration tool for mounting the star on the DLM1 C&P head
Application: 20
The power supply is used as a calibration tool for mounting the star. 20
