4.1 Overview of the SIPLACE-LAN communication

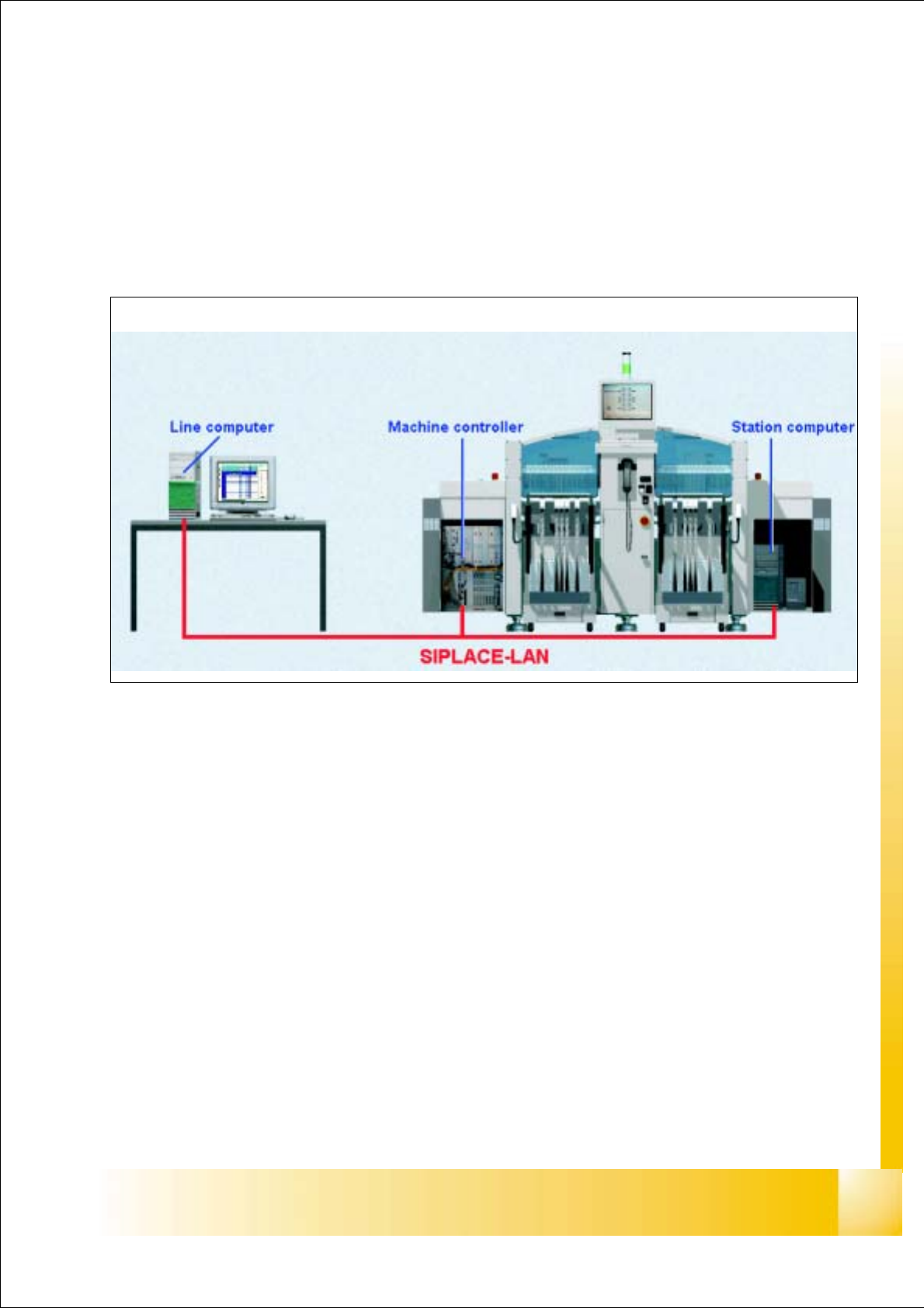

Fig. 4.1 - 1 Overview SIPLACE-LAN communication
06/2002 Edition Student Guide HS-50 Advanced I
4 Communication
6
4.2 Line Computer
Fig. 4.2 - 1 Line Computer
The linie computer UNIX OpenServer V5.0.4 and the overlying LRU software provides the follow-
ing functions:
– Configuration of the placement machines and lines
– Creation of placement programs
– Optimization of placement sequences
– Line control
– Production data aquisition
– Data management
– Interface to the customer LAN
Student Guide HS-50 Advanced I 06/2002 Edition
4 Communication
7
4.3 Station Computer

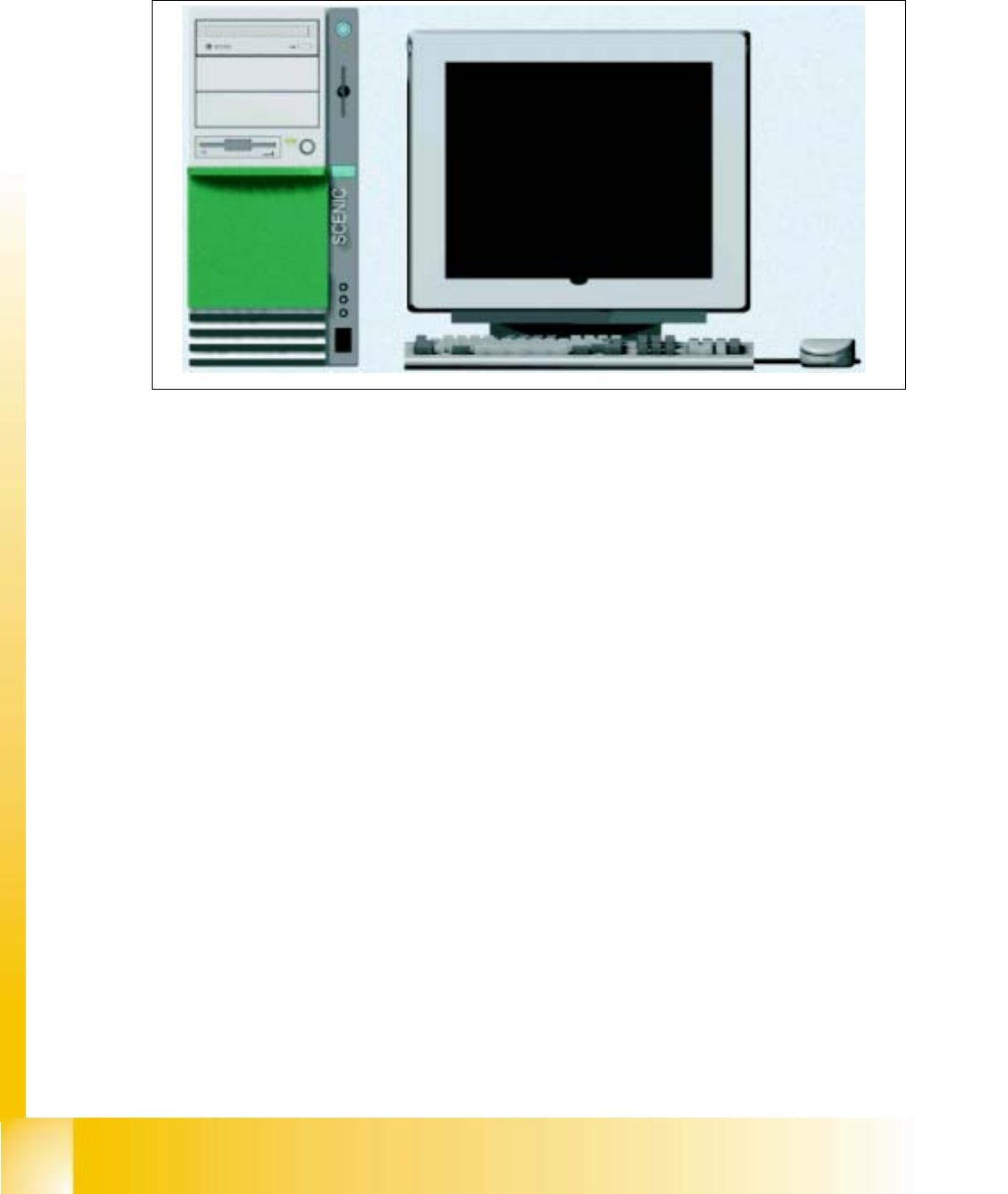

Fig. 4.3 - 1 Station computer
The station computer is ca Pentium system running Windows NT 4.0.
It provides the following functions:
– Provision of a multilingual graphical user interface
– Management of the machine data
– Teaching of vision data
– Communication interface between the line computer and the machine ontroller
