Studen t Guide HS-50 A dvanced I 06/200 2 Edition 5 DLM1 C&P Head 5 5 DL M1 C&P He ad 5.1 Gener al Ov ervie w 5.1. 1 Overview The HS-50 au tomatic plac ement s ystem h as four 12-segm ent t y pe DLM 1 revolver he…
1 - 4
06/2002 Edition Student Guide HS-50 Advanced I
Contents
4
5.4 C&P Head dis- and reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.4.1 Points to note before starting servicing work .... . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.4.2 Overview front part of the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.4.3 Dismantling / fitting the front part of the revolver head . . . . . . . . . . . . . . . . . . . . . . . 36
5.4.4 Removal of component camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.4.5 Removal of star . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.4.6 Removal of the valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.4.7 Replacement of z-axis top sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5.4.8 Replacing the z-axis bottom sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
5.4.9 Removal of the star motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
5.4.10 Replacing the RSF digital rotary encoder 12/DLM1 . . . . . . . . . . . . . . . . . . . . . . . . 64
5.4.11 Overview of rear part of the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.4.12 Removal of rear part of head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
5.4.13 Removal of DP station. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
5.4.14 Replacement of valve drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
5.5 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
5.5.1 Determination of Zero Point Correction Star - Axis Collect & Place Head. . . . . . . . . 83
5.5.2 Belt Tension of the Z-Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.5.3 Air Pressure Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5.5.4 RSF Digital Rotary Transducer of DP - Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
5.5.5 RSF Digital Transducer of DP - Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
5.5.6 Light Barrier, Bottom Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
5.5.7 Adjustment of Mechanical Position of Valve Drives. . . . . . . . . . . . . . . . . . . . . . . . . . 88
5.5.8 Other Mechanical Adjustments on the Star. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Student Guide HS-50 Advanced I 06/2002 Edition
5 DLM1 C&P Head
5
5 DLM1 C&P Head
5.1 General Overview
5.1.1 Overview
The HS-50 automatic placement system has four 12-segment type DLM1 revolver heads
(item no. 00335700-01). 5
5

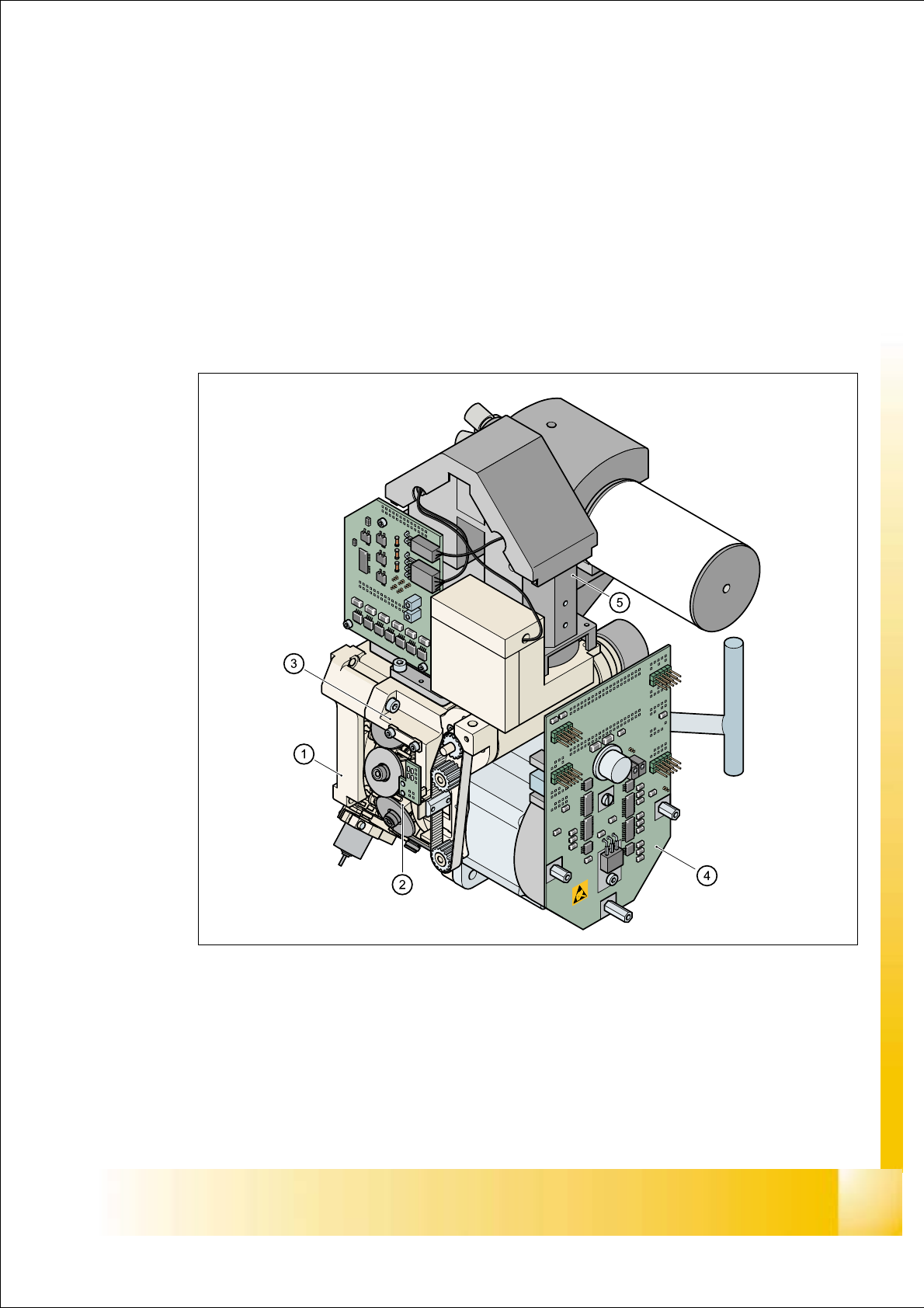

Fig. 5.1 - 1 12-segment DLM1 revolver head - overview
(1) Back part, complete / DLM1 (Item no. 00335986-xx)
(2) Star, fitted (Item no. 00341181-xx) with 12 sleeves
(3) Front part, complete / DLM1 (Item no. 00335981-xx)
(4) SP6_12 intermediate distribution board, digital (Item no. 00330648-xx)
(5) 24x24 component camera (Item no. 00320549-xx) / optionally 15,6x15,7 DCA camera (Item
no. 00337450-01)
06/2002 Edition Student Guide HS-50 Advanced I
5 DLM1 C&P Head
6
5.1.2 Parts overview
5

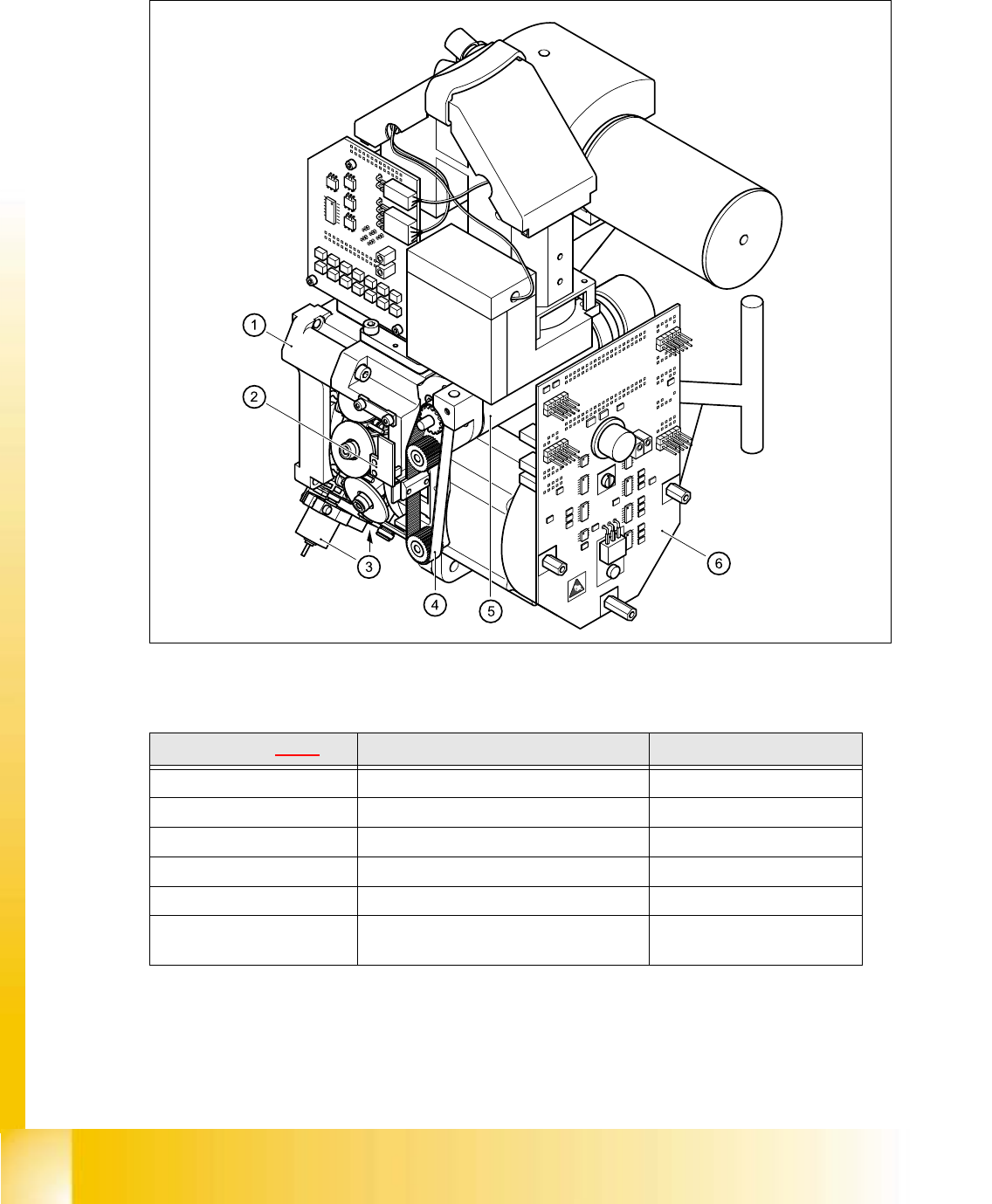

Fig. 5.1 - 2 DLM1 revolver head - parts overview 1
Item in Fig. 5.1 - 2 Designation Item no.
1 Revolver head SP12 complete / DLM1 00333700-01
2 Light barrier for "Z-axis up" 00321213-05
3 Valve positioning drive 00319826-05
4 Toothed belt T2 / DLM1 00334936-01
5 Z-axis drive / DLM1 00341011-01
6
SP6_12 intermediate distribution board,
digital
00330648-03
