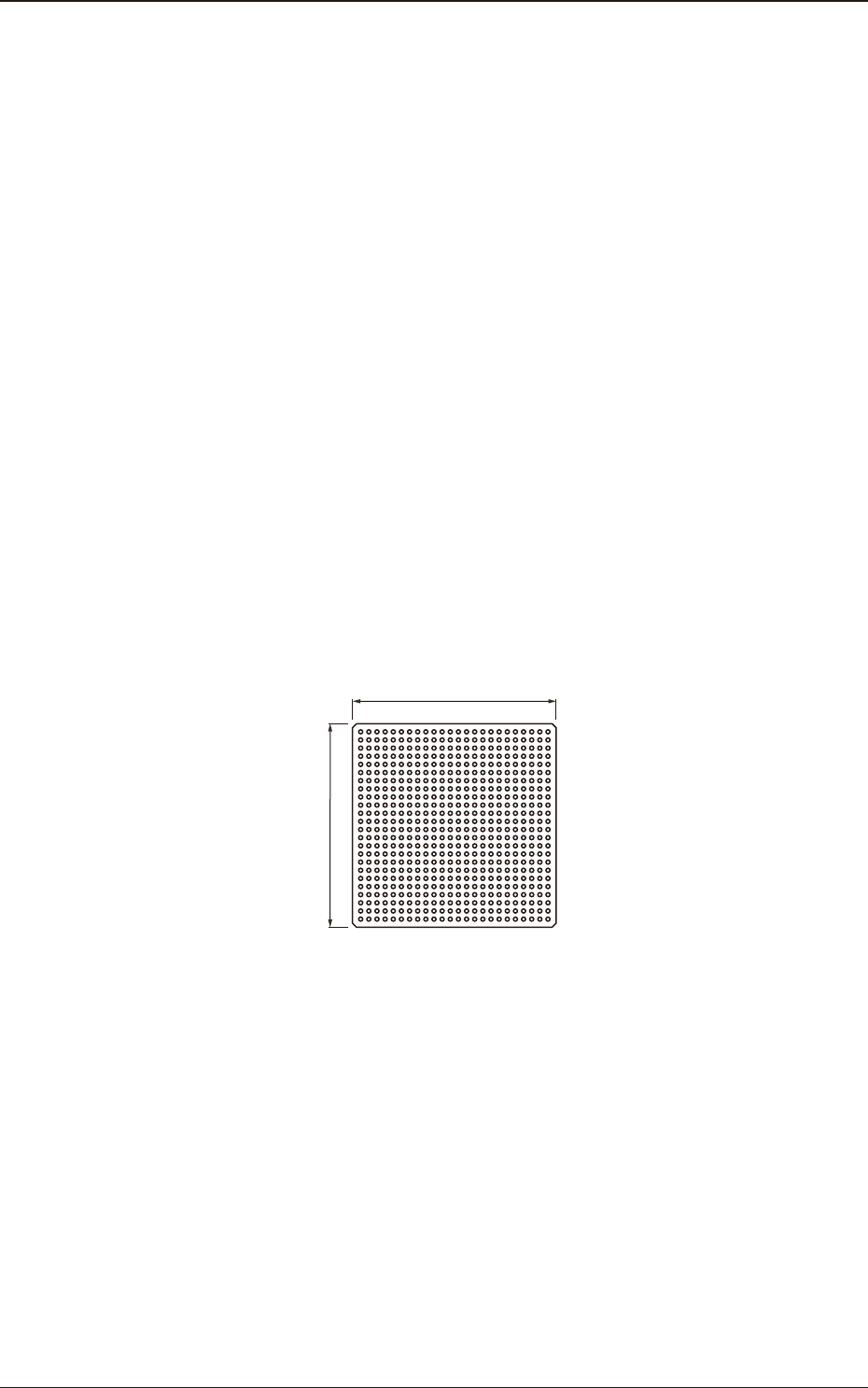

On the bottom surface of the jig component, 576 black circles with
f
1.00 [mm]
are vapor-deposited at 2.00 [mm] pitch.
50 mm
50 mm
Magnication Teaching Glass Jig F3A34
Jig Pick-up Nozzle
For the pick-up of the magnication teaching glass jig, the nozzle VF02 for
middle-size odd shaped nozzle is used.
5.7 "Cmp Recog Mag" Window
3OM-1751
1-461303-001
•
Component Recognition Camera Magnication Teaching Procedure
Procedure
(1) Press the Camera and Head selection buttons and select the camera and head
to be taught.
Note
The teaching operations for four combined patterns are performed.
Camera 1 – Head #1
Camera 1 – Head #2
Camera 2 – Head #1
Camera 2 – Head #2
(2) Press the [Jig Attach Pos Move] button and within 10 seconds, press the
[START] button on the operation panel.
(The head will move to the position where the magnication teaching glass
jig is to be picked up (jig attachment position)).
(3) Setup the nozzle VF02 for middle-size odd shaped nozzle onto this end of the
head moved to the jig setup position and pick up the magnication teaching
glass jig so that the image is within the recognition area.
Note
When the jig is to be picked up using the nozzle, hold the right and left
ends of the jig to pick it up.
Notice
When the vacuum pump is not activated, cancel the test operation
mode or remove a check mark from the item for vacuum pump stop
in the test operation mode window.
(4) Press the [Teach Start] button.
(Based on the captured image, the magnication offset for the component
recognition camera will be calculated.)
(5) Press the [Jig Colct] button and within 10 seconds, press the [START] button
on the operation panel.
(The beam will move to the position where the magnication teaching glass
jig can be removed).
(6) Remove the magnication teaching glass jig.
(7) Press the [Vac OFF] button to turn off the vacuum and remove the nozzle
used for the teaching.
(8) Press the [Save] button to save the teaching results.
5.7 "Cmp Recog Mag" Window
3OM-1751
1-471303-001
5.8 "PCB Recog/Beam" Window
The corresponding window enables you to perform the teaching operation for the
PEC recognition camera offset (Magnication X(Horizontal), Y(Vertical) and
Z(Angle), Beam offset (Beam X(Horizontal), Beam Y(Vertical), Beam Angle X
and Y).
[1]
[2]
F3A35

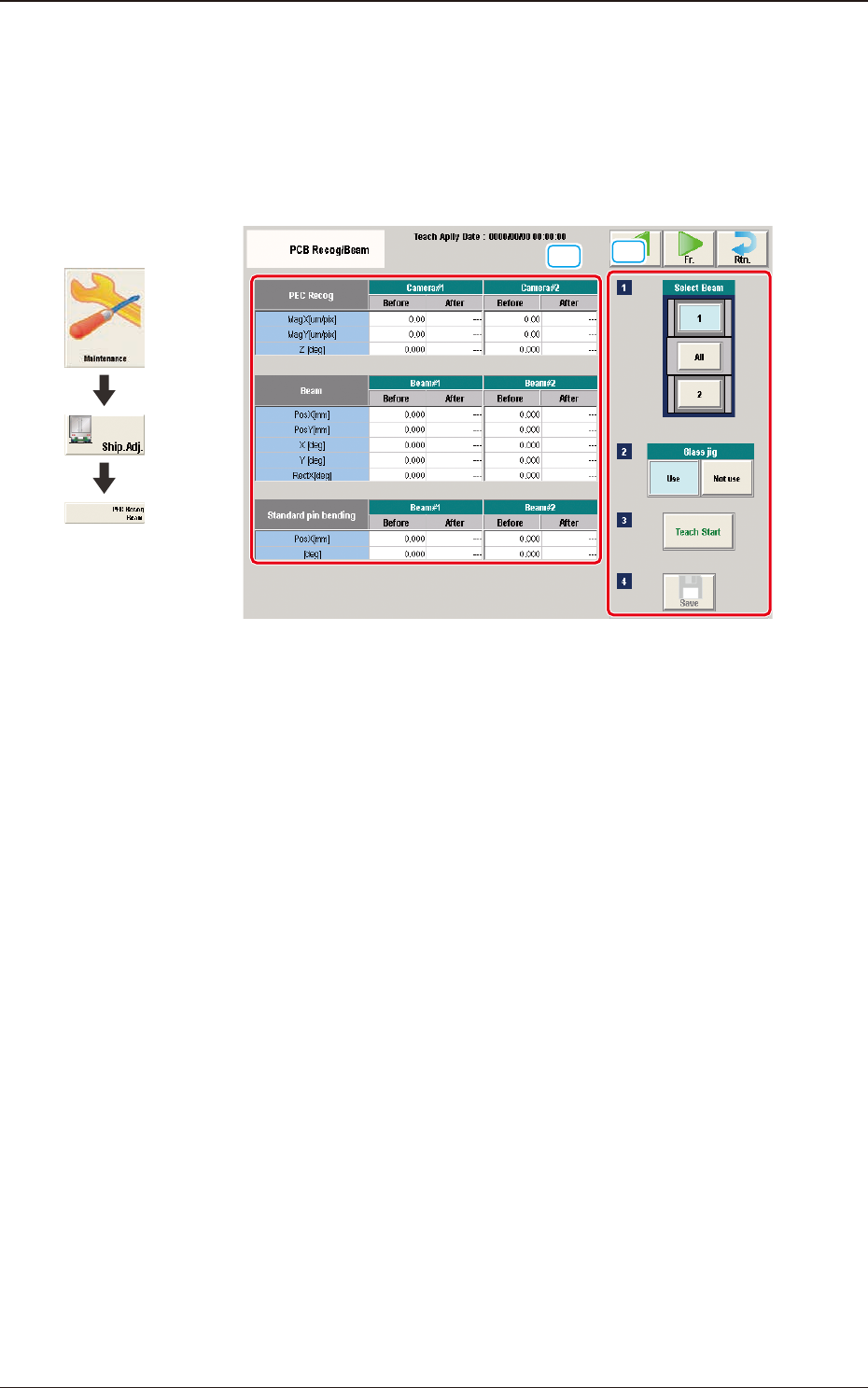

[1] Teaching Data Display Section
Displayed are the offset data items for the designated beam.
[2] Teaching Procedure Display Area
Displayed are the buttons to be used for the teaching operations.
Select Beam
Each PEC recognition camera/beam in the graphic image of the machine is
provided with a button function. Select the PEC recognition camera/beam for
which the teaching operation is performed.
Glass Jig
[Use] button
When this button is pressed to use the glass component jig, the color of
the button turns light blue.
[Not use] button
When this button is pressed not to use the glass component jig, the color
of the button turns light blue.
[Teach Start] button
When pressed, this button executes the teaching operation.
Graphic
Development
5.8 "PCB Recog/Beam" Window
