6.2.1 "Operation" Window
This enables you to perform a manual operation (inching) of each unit.
When the [Operation] button is pressed in the "MOTOR" window, the "Operation"
window appears.
[1]
[2]
[3]
[4]

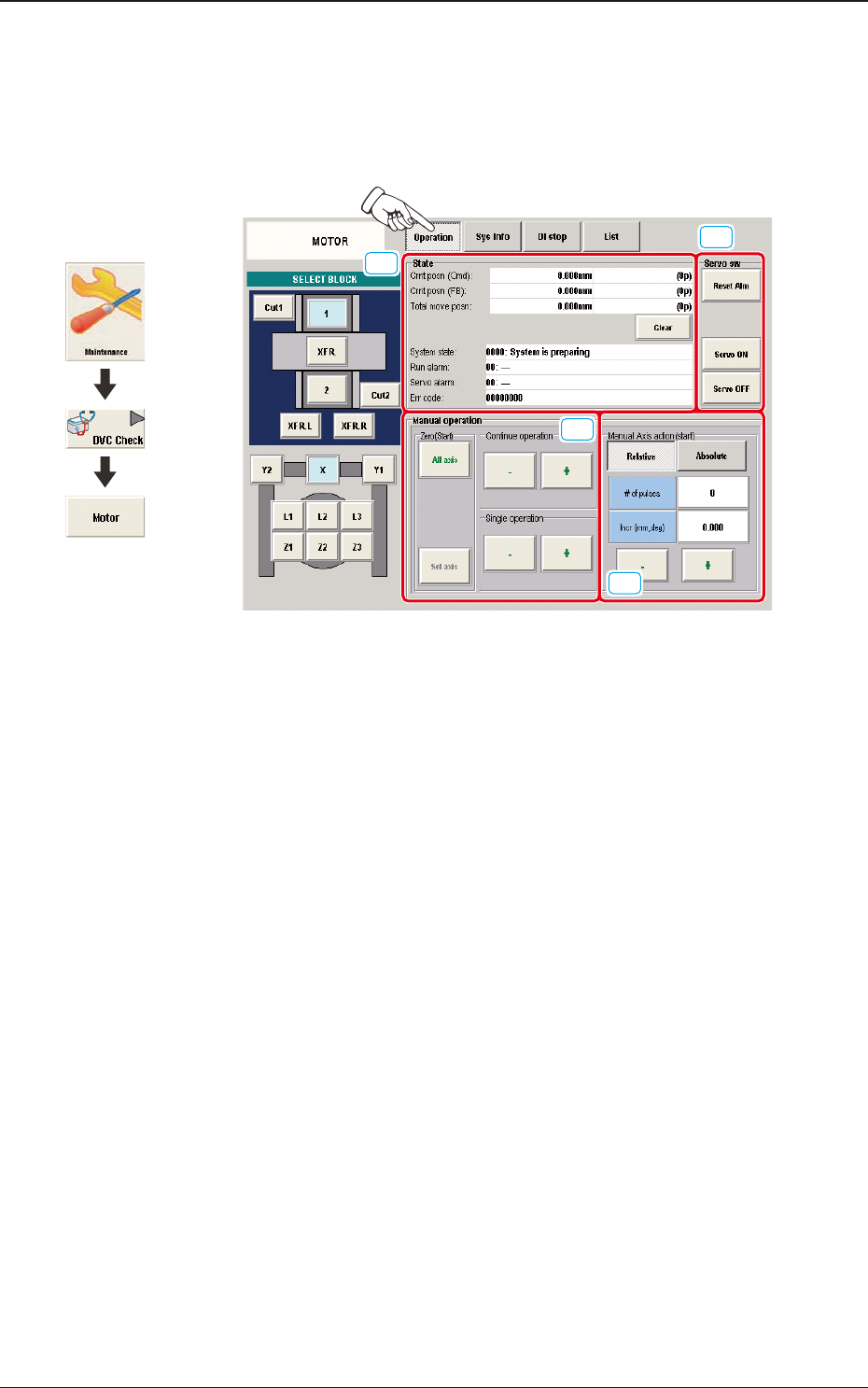

F3A54
[1] "State" Group Box
The following information is displayed.
Crnt posn (Cmd)
Crnt posn (FB)
Total move posn
System state
Run alarm
Servo alarm
Err code
[2] "Servo sw" Group Box
The following buttons are provided.
[Reset Alm] Button
: Resets the alarm to its normal condition.
[Servo ON] Button
: Turns on the servomotor.
[Servo OFF] Button
: Turns off the servomotor.
6.2 "MOTOR" Window
Graphic
Development
3OM-1751
1-781303-001
[3] "Manual operation" Group Box
The following operation buttons are arranged.
"Continue operation" Group Box
Press either the [+] or the [-] button to specify the direction of manual axis
operation for the unit.
"Single operation" Group Box
Press either the [+] or the [-] button to specify the direction of manual axis
operation for the unit.
"Zero (Start)" Group Box
[All axis] Button
: Zeroes all axes.
[Sel axis] Button
: When pressed, this button zeroes the axis selected by the
unit selection buttons.
[4] "Manual Axis action (start)" Group Box
One of the following buttons can be selected to determine whether the
manual axis action should take place based on the relative or the absolute
value.
[Relative] Button
When pressed, this button displays the relative values in the "# of
pulses" and "Incr (mm, deg)" text boxes for the selected unit.
When the [# of pulses] and [Incr (mm, deg)] buttons are pressed, the
corresponding data entry window opens.
When a numerical value is entered and the [Set] button is pressed, the
entered numerical value is set in the corresponding text box.
The [+] or the [-] button can be used to determine the direction of the
manual axis (inching) movement for the selected unit.
[Absolute] Button
When pressed, this button displays the absolute values in the "# of
pulses" and "Pos (mm, deg)" text boxes for the selected unit.
When the [# of pulses] and [Pos (mm, deg)] buttons are pressed, the
corresponding data entry window opens.
When a numerical value is entered and the [Set] button is pressed, the
entered numerical value is set in the corresponding text box.
When the [START] button on the operation panel is pressed in 10
seconds after the [ON] button, the selected axis is shifted to the
specied position.

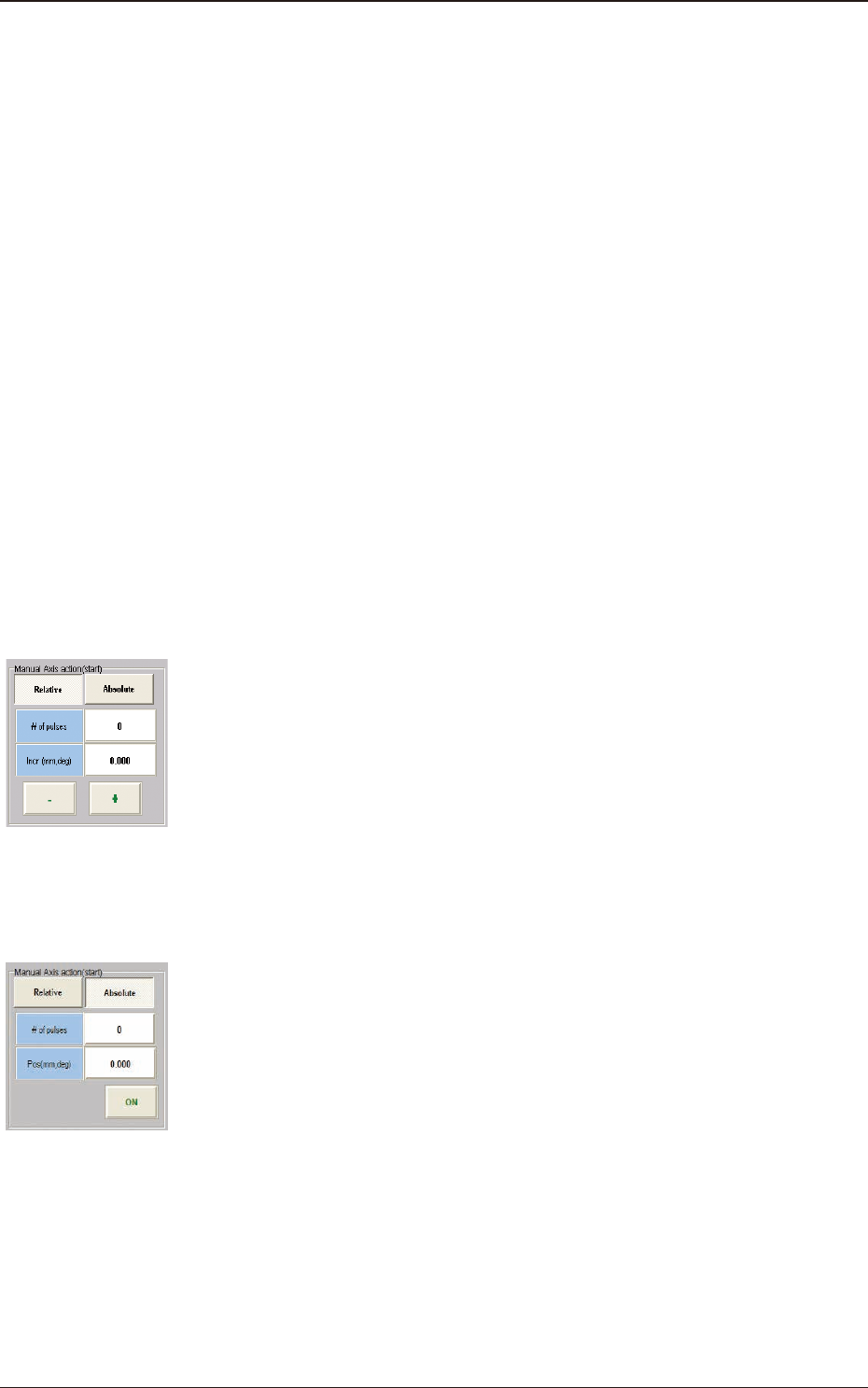

F3A55
F3A56
6.2 "MOTOR" Window
3OM-1751
1-791303-001
6.2.2 "Sys Info" Window
This enables you to view the current system information of the machine.
Pressing any of the buttons, displays the corresponding window.
[1]
[2]

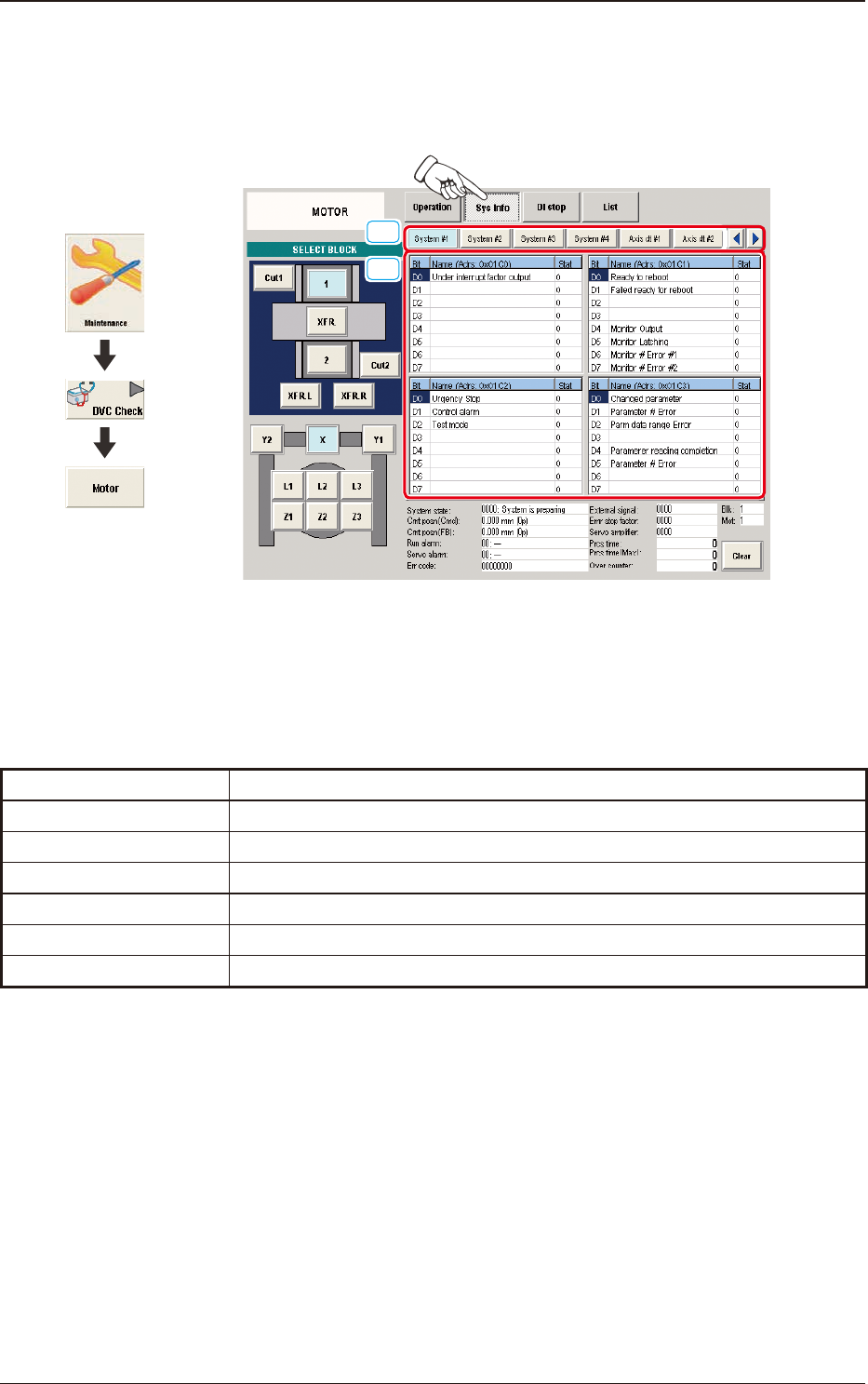

F3A57
[1] Display Change Buttons
The "Sys Info" windows are provided with the following item. When each
button is pressed, the corresponding window appears.
Buttons Description
System #1 through #4
Displayed is the status of System #1 through #4.
Axis dt #1 through #4
Displayed is the status of Axis dt #1 through #4.
Servo amp
Displayed is the status of the servo amplier.
Alarm
Displayed is the status of the alarm.
Monitor
Displayed is the status of the monitor.
Parameter
Displayed is the status of the parameter.
T3A7
