6.3.2 "Recog Light" Tab
[1]
F3A73
[1] Tabs
The "Recog Light" window is provided with the following two tabs. When
each tab is pressed, the corresponding tab sheet appears.
Tabs Description
Cmp. Recog
In this tab sheet the component recognition lighting is turned ON in
the minimum unit and the wire connection condition and illumination
condition are conrmed.
PEC Recog
In this tab sheet the PEC recognition lighting is turned ON and the wire
connection condition and illumination condition are conrmed.
T3A12
1303-001
6.3 "RECOG" Window
Graphic
Development
3OM-1751
1-91
6.3.2.1 "Cmp. Recog" Tab Sheet

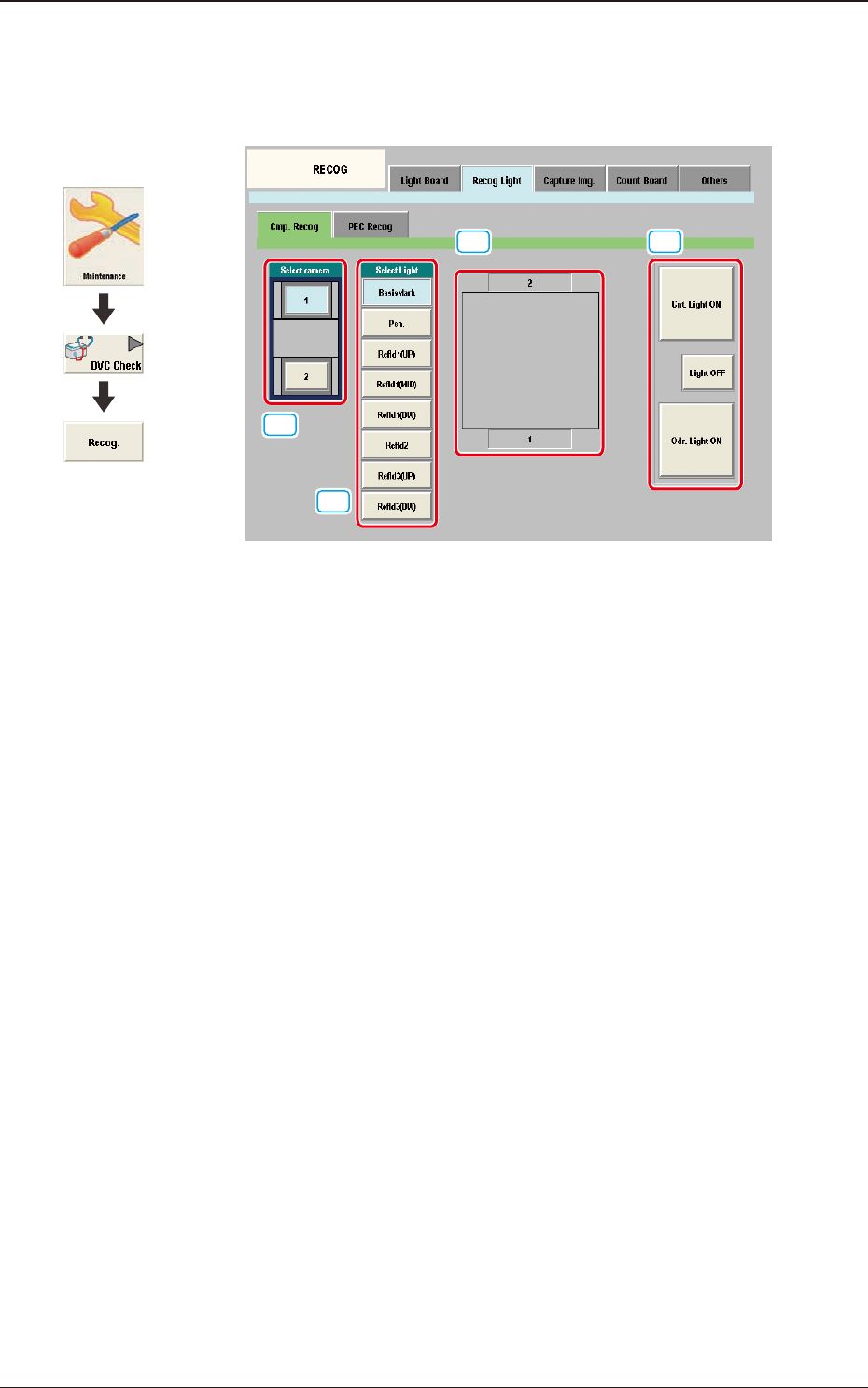

When the [Cmp. Recog] tab sheet is pressed on the [Recog Light] tab, the
following tab sheet appears.
[1]
[2]
[3] [4]
F3A74
[1] Select camera Buttons
Displayed are the buttons showing the positions of the component
recognition cameras. Using these buttons, the component recognition camera
to check the component recognition lighting, is selected.
[2] Recognition Lighting Selection Buttons
Using these buttons, the lighting pattern to be checked is selected.
[3] Recognition Lighting Image Display Section
Displayed is the recognition lighting image.
The recognition lighting pattern is changed according to the lighting pattern
selected using the "[2] Recognition Lighting Selection Buttons".
[4] [Cnt. Light ON] Button
When this button is pressed, the recognition lighting selected in [2] is turned
ON continuously.
[Light OFF] Button
When this button is pressed, the recognition lighting that has been
continuously turned ON, is turned OFF.
[Odr. Light ON] Button
All of the recognition lighting shown in [2] are turned ON or OFF
consecutively.
1303-001
6.3 "RECOG" Window
Graphic
Development
3OM-1751
1-92
•
Component Recognition Lighting Conrmation Procedure Procedure
Procedure
(1) Using the button [1], select the component recognition camera with which
the conrmation is to be performed.
(2) Using the button [2], select the lighting pattern with which the conrmation
is to be performed.
(3) Using the button [4], select the lighting condition.
(The lamp is turned ON according to the selected lighting condition).
Note
The lamps which currently turn ON, are indicated in yellow.
