3OM-1751
1-97

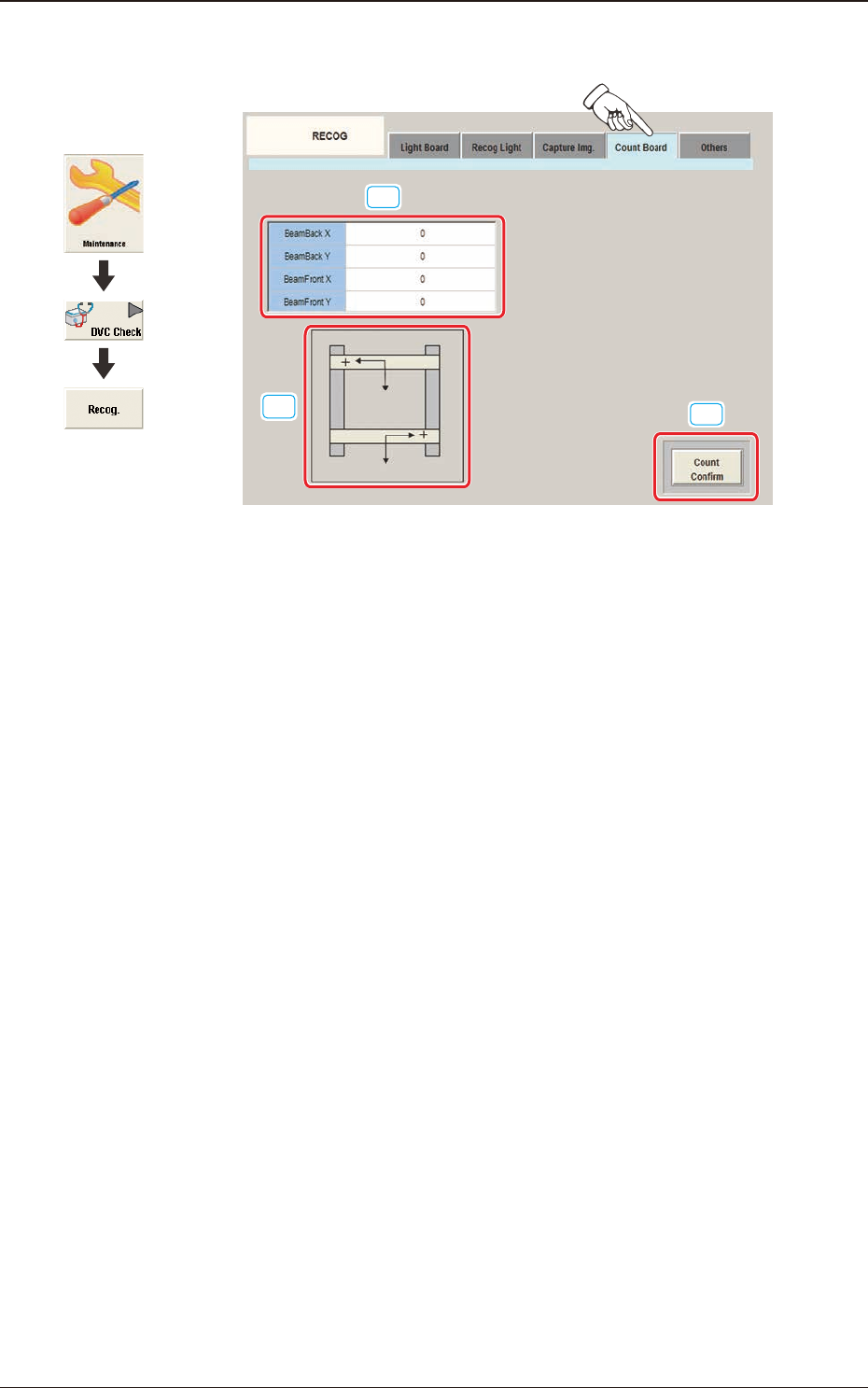

6.3.4 "Count Board" Tab
[1]
[2]
[3]
F3A79
[1] BeamBack X, Y
BeamFront X, Y
In these data boxes the X, Y count values are displayed for each beam.
[2] XY Beam Image
Displayed are the X and Y beam images.
[3] [Count Conrm] Button
When this button is pressed, the current counter value is checked.
The change position and increase/decrease direction of the count value
displayed by means of pressing the beam manually and pressing the [Count
Conrm] button, are conrmed.
1303-001
6.3 "RECOG" Window
Graphic
Development
3OM-1751
1-98

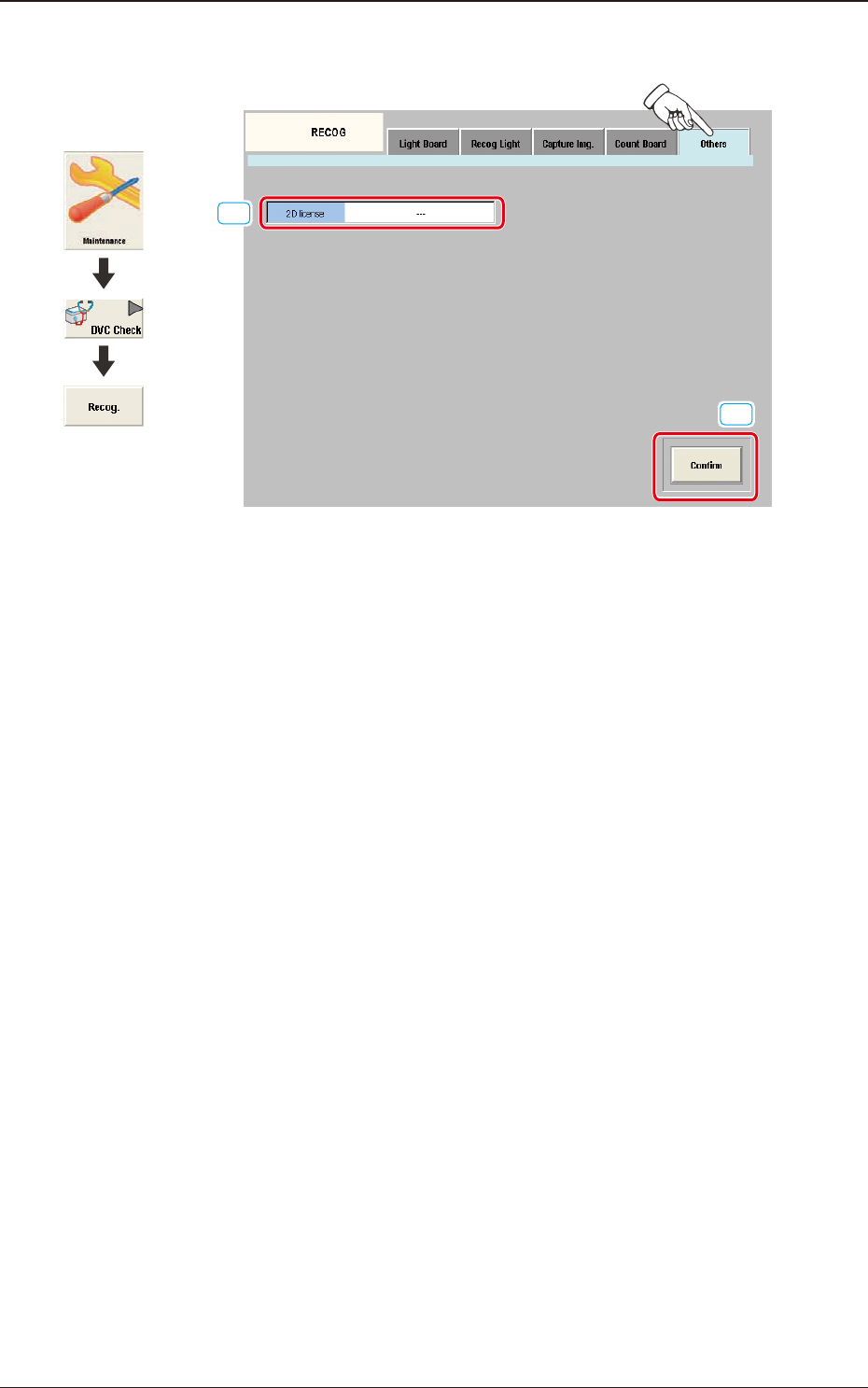

6.3.5 "Others" Tab
[1]
[2]
F3A80
[1] 2D license
In this data box the valid or invalid of the optional 2-D bar code read license
(GS-DL100) is displayed.
[2] [Conrm] Button
Using this button the valid or invalid of the optional 2-D bar code read
license (GS-DL100) is conrmed.
1303-001
6.3 "RECOG" Window
Graphic
Development
3OM-1751
1-991303-001

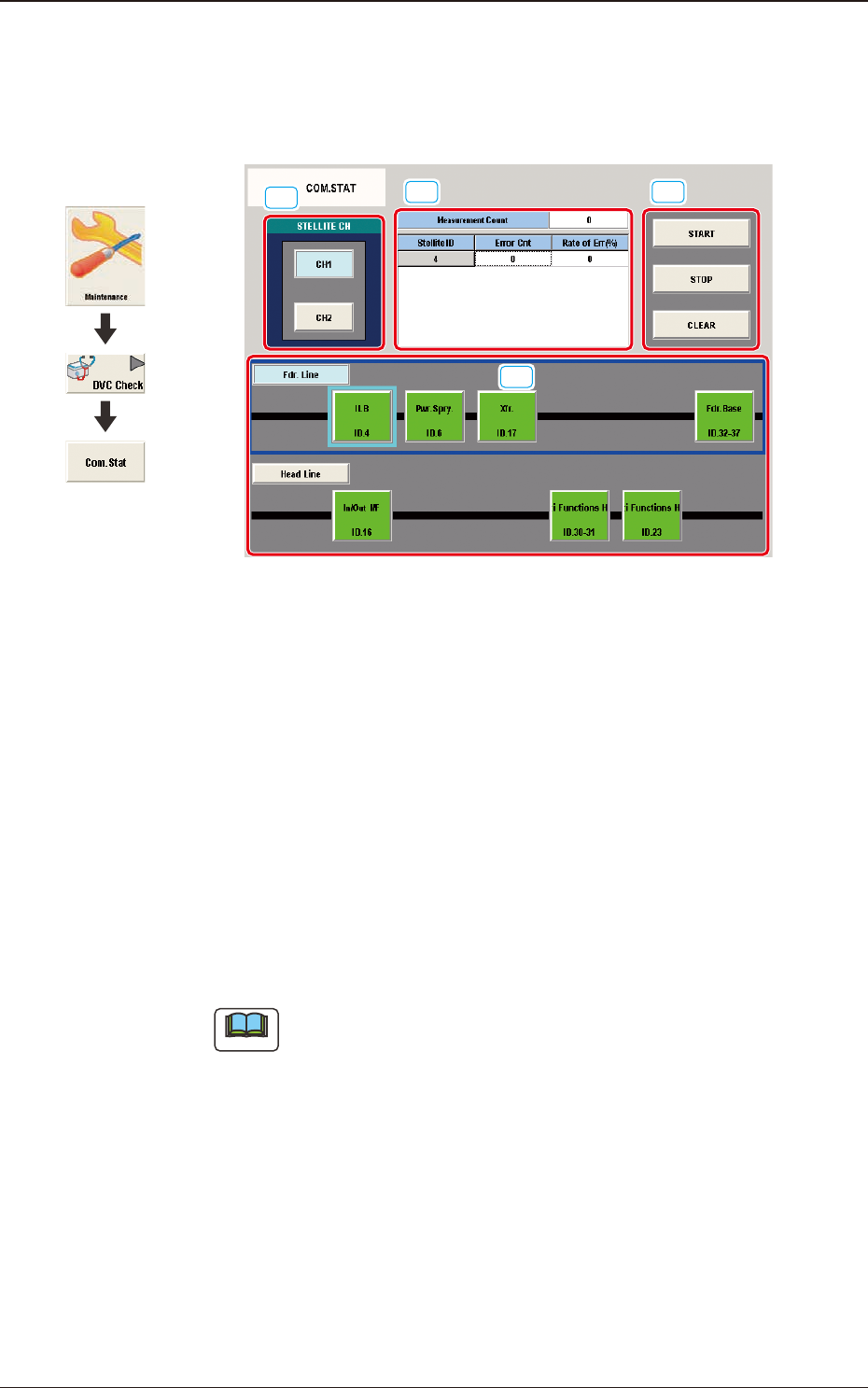

6.4 "COM.STAT" Window
The corresponding window enables you to check the communication status of
each section.
[1]
[2]
[3] [4]
F3A81
[1] STELLITE CH
Each block in the graphic image of the machine is provided with a button
function.
When a button is pressed, the corresponding block is selected.
[2] [Fdr. Line] and [Head Line] buttons
Each satellite button
When the [Fdr. Line] button is pressed, each satellite button in the feeder line
becomes active. Pressing the [Head Line] button makes active each satellite
button in the head line.
Press the [Fdr. Line] or the [Head Line] button and select the desired
satellite.
Note
Different satellites are displayed in response to the block selected in [1].
6.4 "COM.STAT" Window
Graphic
Development
