3OM-1751
1-1101303-001

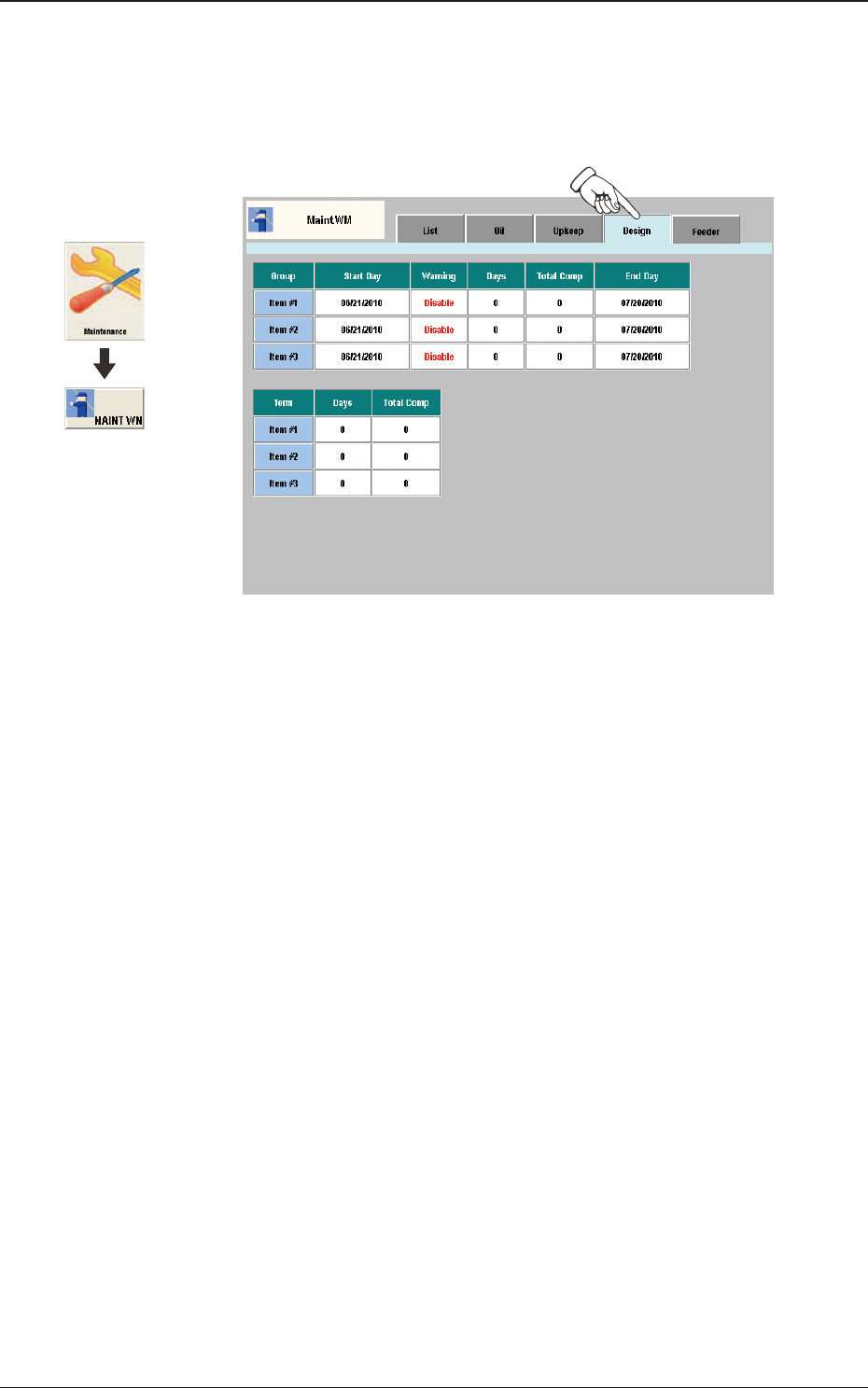

7.4 "Design" Tab Sheet
When the [Design] tab is pressed in the "MaintWM" window, the following tab
sheet appears.
"Design" window F3A89
The corresponding tab sheet enables the operator to display the setting status and
present status for the additionally set maintenance check-up items (Maintenance 1,
Maintenance 2 or Maintenance 3 for maintenance announcements.)
7.4 "Design" Tab Sheet
Graphic
Development
3OM-1751
1-1111303-001

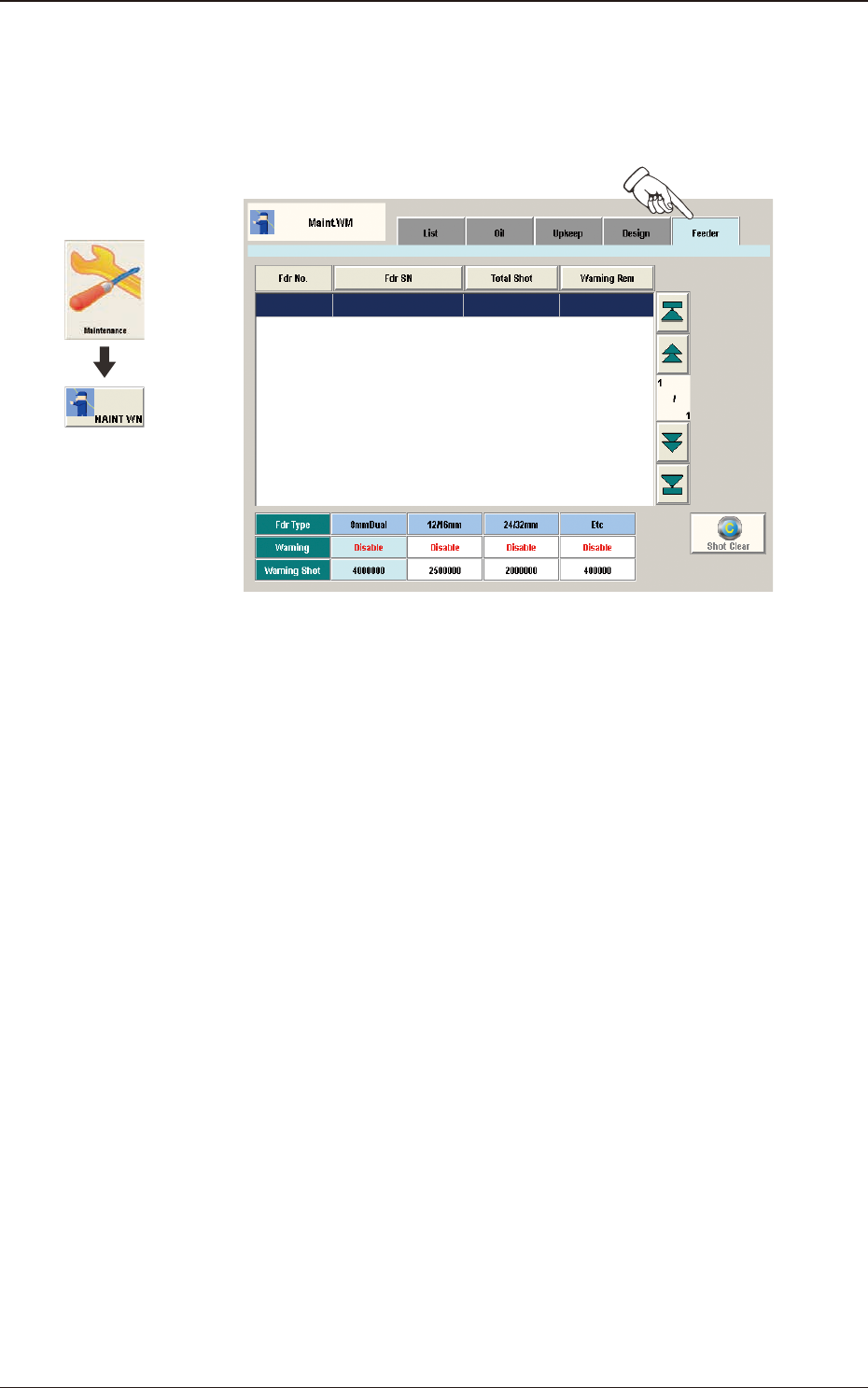

7.5 "Feeder" Tab Sheet
When the [Feeder] tab is pressed in the "MaintWM" window, the following tab
sheet appears.
"Feeder" window F3A90
[1] Present Status Display Section
Fdr No.
The feeder No. is displayed in this section.
Fdr SN
The feeder serial No. is displayed in this section.
Total Shot
The current No. of shots is displayed in this section.
Warning Rem
The No. of remaining shots until the announcement is issued, which has been
set using the NT-100 system software, is displayed in this section.
[2] Setting Status Display Section
The values set using the NT-100 system software, are displayed in this
section.
[3] [Shot Clear] Button
Using this button, the current No. of shots is cleared.
After performing maintenance, press this button.
7.5 "Feeder" Tab Sheet
Graphic
Development
3OM-1751
1-1121303-001

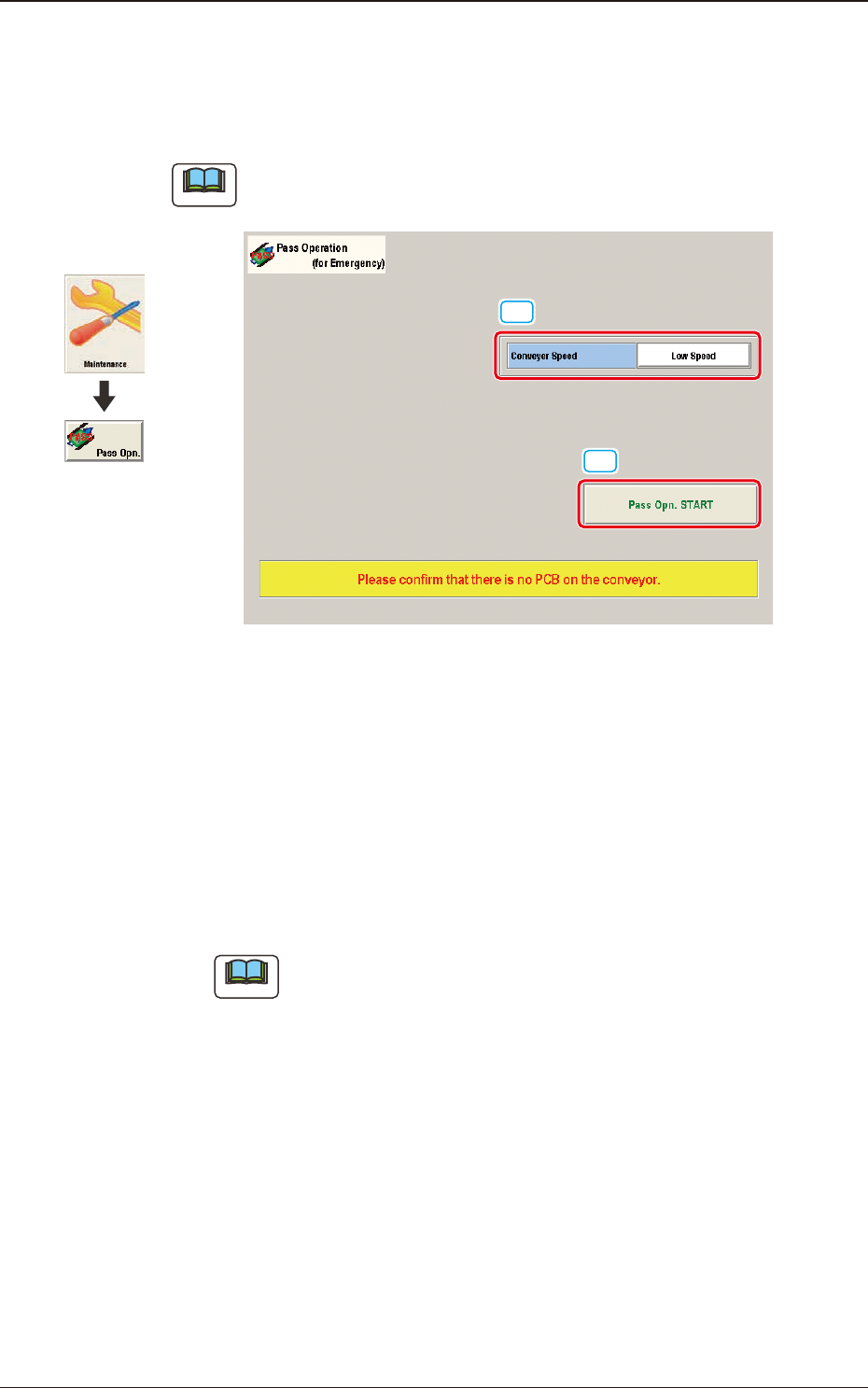

8. Pass Operation (for Emergency)
This function enables the operator to continue the production operation without
rearranging the line when the machine is broken down.
Note
The setting is available only when the login is performed with the access
authority of "Supervisor".
[1]
[2]
F3A91
[1] Conveyer Speed
The conveyor operation speed in the pass operation, is selected from "Low"
or "High" in this selection box.
[2] [Pass Opn. START] Button
When the [Pass Operation Start] button is pressed, and within 10 seconds
the [START] button is pressed on the operation panel, the pass operation is
started up and the window is locked.
Note
It can be selected in the "Stop" or "Pause" mode of the machine.
Graphic
Development
8. Pass Operation (for Emergency)
