3OM-1751 2-13 1303-001 2.1.8 "Shuttle conveyor" T ab Sheet F3B13 Note This setting is used as an option. Graphic Development 2.1 "Device Offset" Window

3OM-1751

2-121303-001

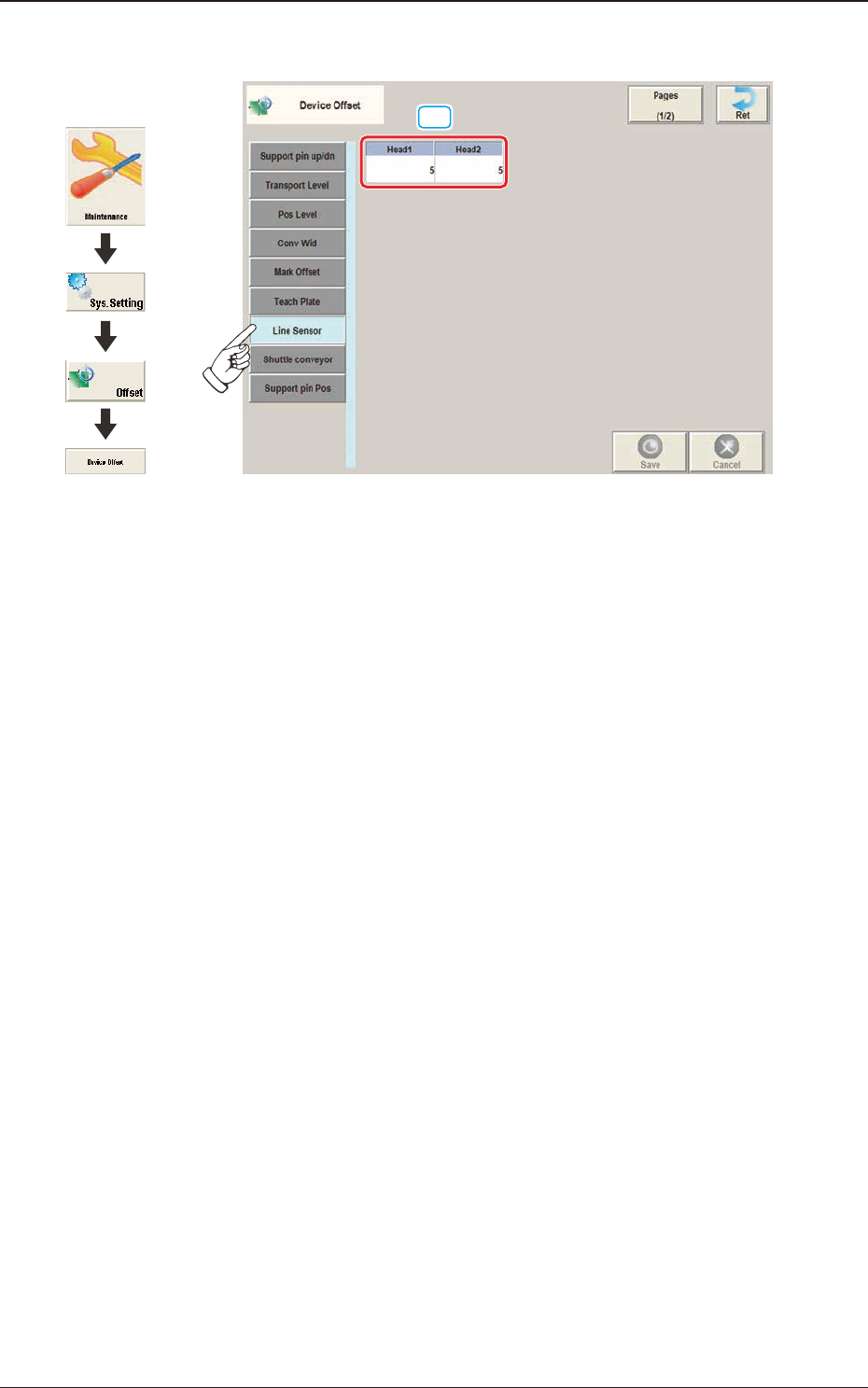

2.1.7 "Line Sensor" Tab Sheet

[1]

F3B12

[1] Head 1 and Head 2

Set the number of dirt detection scanning times to be conducted by the linear

measure sensor of each head.

Graphic

Development

2.1 "Device Offset" Window

3OM-1751

2-13

1303-001

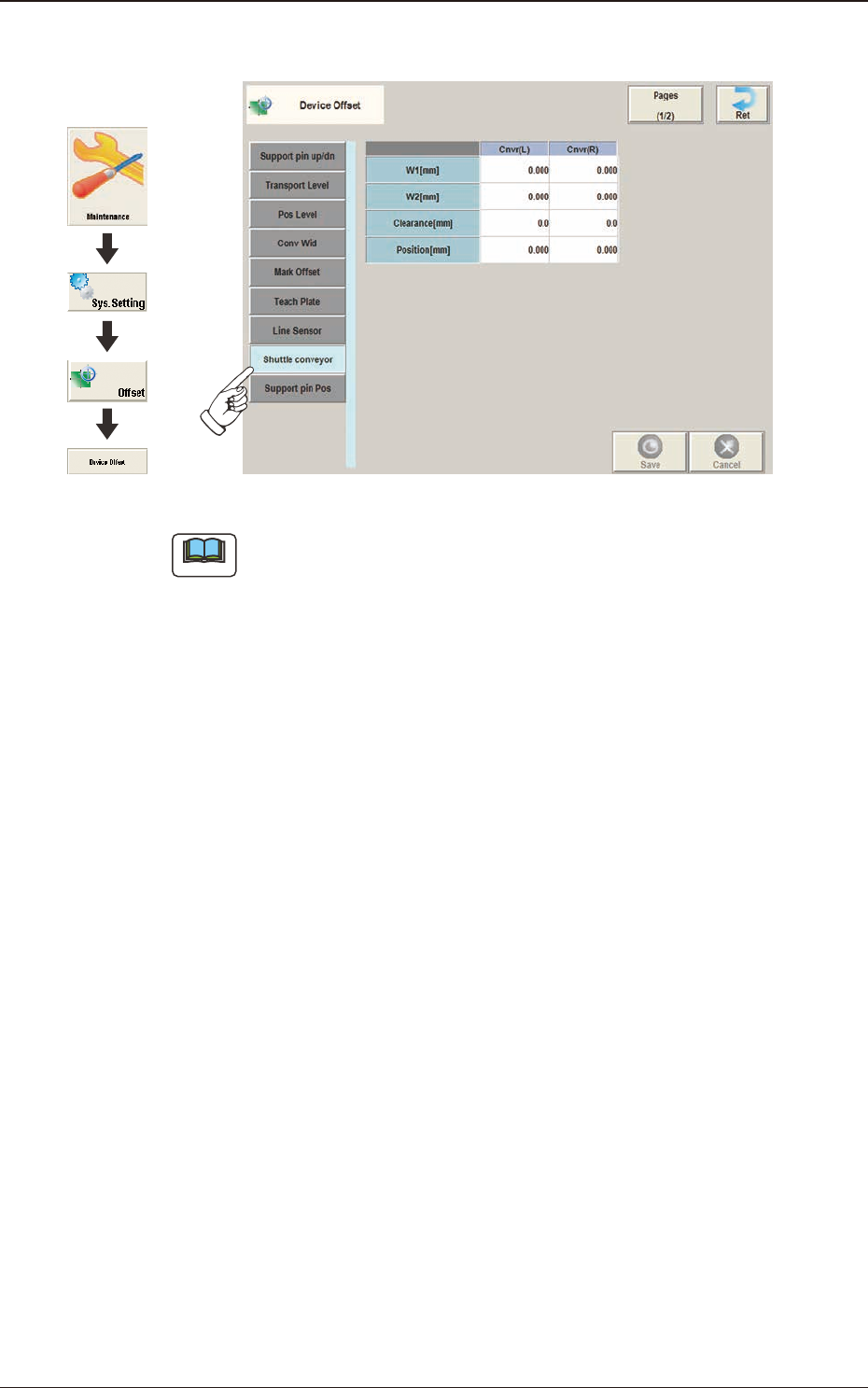

2.1.8 "Shuttle conveyor" Tab Sheet

F3B13

Note

This setting is used as an option.

Graphic

Development

2.1 "Device Offset" Window

3OM-1751

2-141303-001

2.1.9 "Support pin pos" Tab Sheet

[1]

F3B14

[1] L, R

X [mm], Y [mm], Z [deg], L [mm]

These offset parameters are to be corrected when the support pin data is

converted. These offset parameters are calculated automatically in the

support pin teaching operation.

Note

When this teaching is performed, the dedicated teaching pins are required.

Graphic

Development

2.1 "Device Offset" Window
