3OM-1751 2-32 1303-001 [2] Mlt.Func. Hd. X [mm], Y [mm] The set parameters are used to adjust the deviations of the head rotational centers caused due to the movement of the head U/D axes. [3] [Standard] Button When the …
3OM-1751
2-311303-001

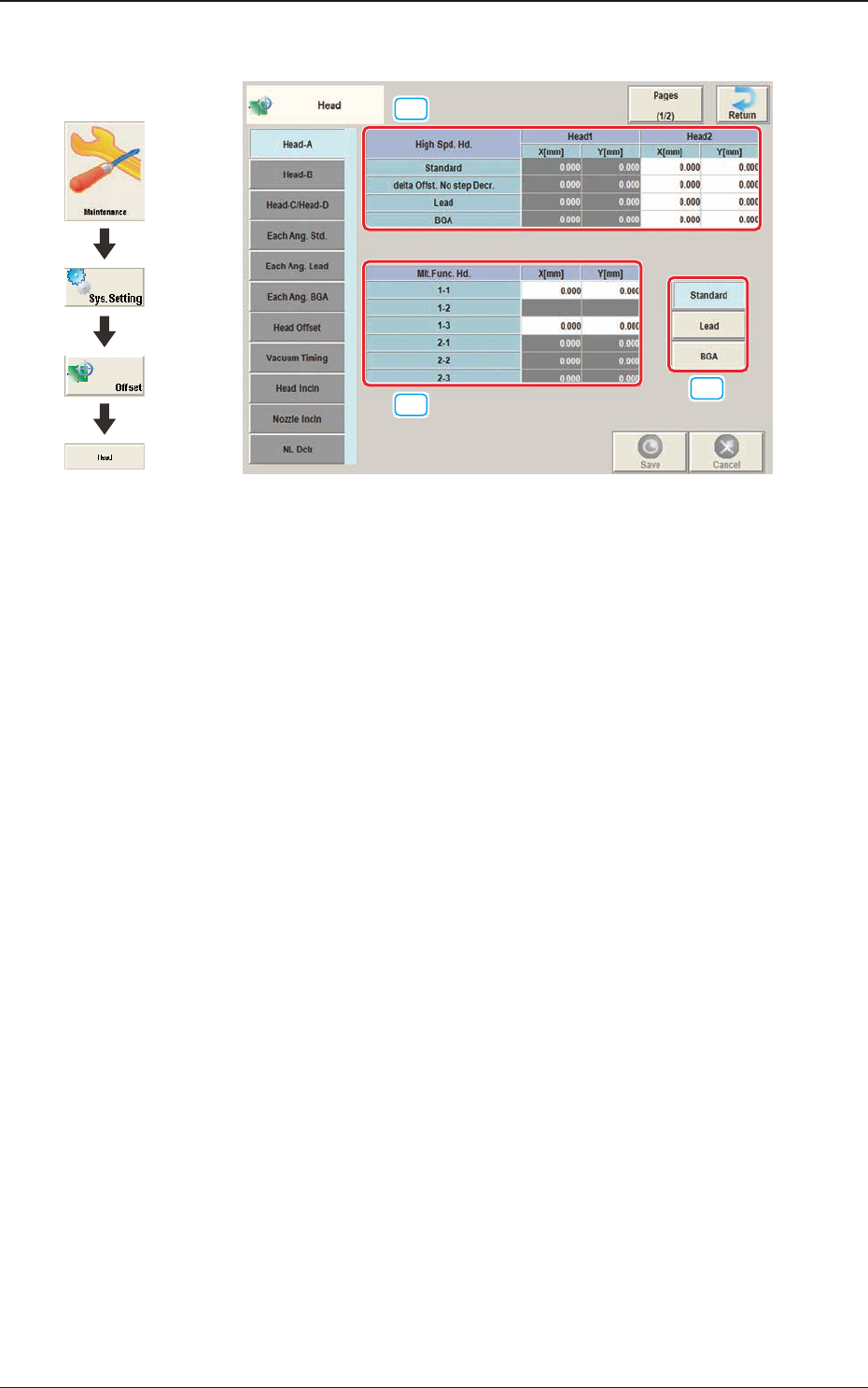

2.5.1 "Head-A" Tab Sheet
[1]
[2]
[3]
F3B31
[1] High Spd. Hd., Head 1 and Head 2
X [mm], Y [mm]
Standard
The set parameters are used to adjust the deviations of the head rotational
centers caused due to the movement of the head U/D axes.
delta Offst. No step Decr.
When no speed deceleration for component placement is specied in the
library data and the position for the placement is calculated, the proper
deceleration rate is converted and added.
Lead
When the library data set at the component placement is for the leaded
components, the value is converted or added in the placement target position
calculation using this button.
BGA
When the library data set at the component placement is for the BGA
components, the value is converted and added in the placement target
position calculation using this button.
2.5 "Head" Window
Graphic
Development
3OM-1751
2-321303-001
[2] Mlt.Func. Hd.
X [mm], Y [mm]
The set parameters are used to adjust the deviations of the head rotational
centers caused due to the movement of the head U/D axes.
[3] [Standard] Button
When the applicable component is a standard one, conversion and addition
are made while the target position for placement is being computed.
[Lead] Button
When the applicable component is a leaded one, conversion and addition are
made while the target position for placement is being computed.
[BGA] Button
When the applicable component is a BGA/CSP one, conversion and addition
are made while the target position for placement is being computed.
2.5 "Head" Window
3OM-1751
2-331303-001
2.5.2 "Head-B" Tab Sheet
[1] [2]
[3]
[4]
F3B32
[1] Nozzle 1 through 15
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm]
The set parameters are used to adjust the positional deviations of the nozzles
caused due to the movement of the nozzle U/D axes.
[3] [Standard] Button
When the applicable component is a standard one, conversion and addition
are made while the target position for placement is being computed.
[Lead] Button
When the applicable component is a leaded one, conversion and addition are
made while the target position for placement is being computed.
[BGA] Button
When the applicable component is a BGA/CSP one, conversion and addition
are made while the target position for placement is being computed.
[4] [Head 1 Clear] Button, [Head 2 Clear] Button
Using these buttons, the data parameters for all the nozzles in the
corresponding head are performed.
2.5 "Head" Window
Graphic
Development
