3OM-1751 2-34 1303-001 2.5.3 "Head-C/Head-D" T ab Sheet F3B33 2.5 "Head" Window Graphic Development
3OM-1751
2-331303-001

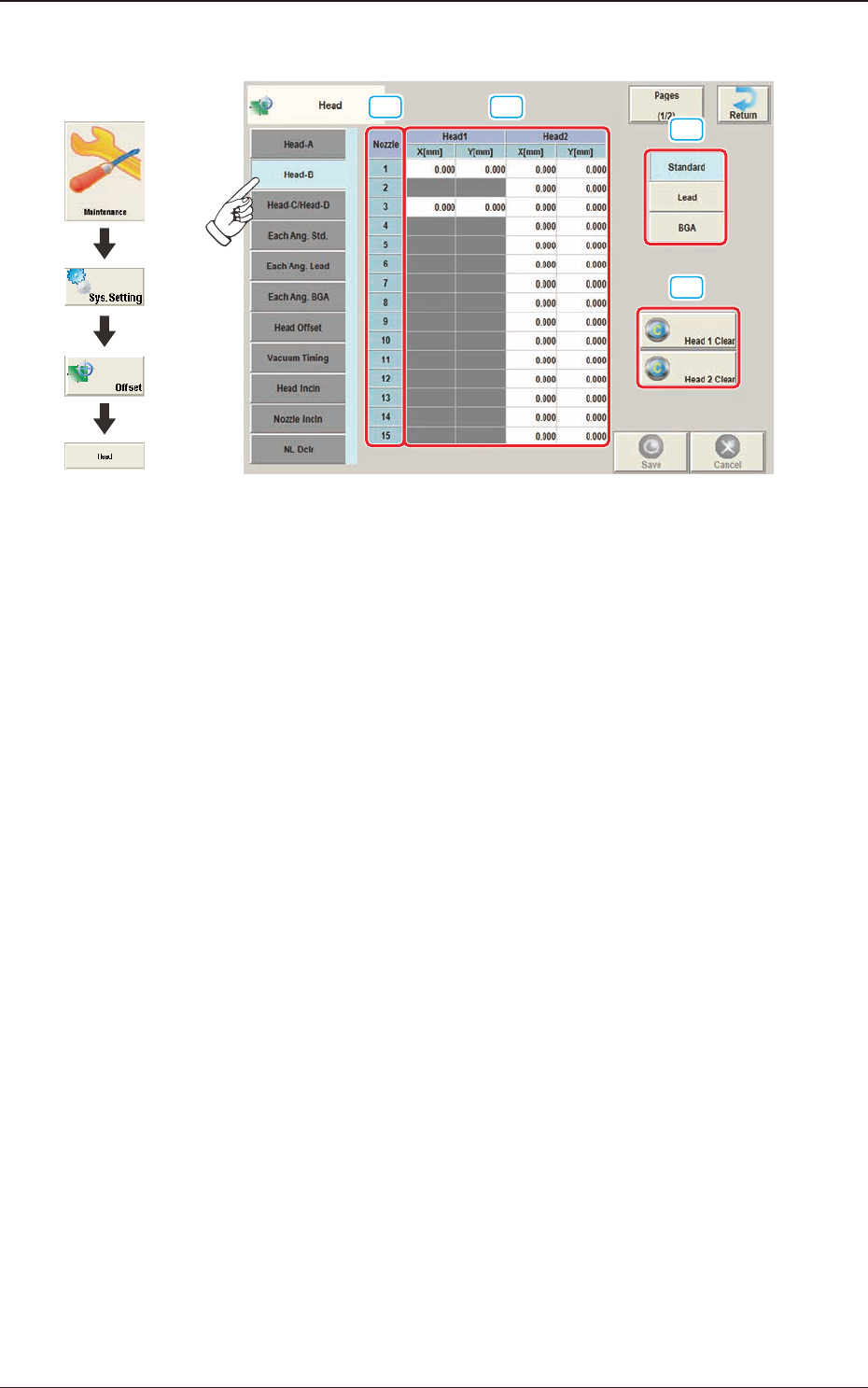

2.5.2 "Head-B" Tab Sheet
[1] [2]
[3]
[4]
F3B32
[1] Nozzle 1 through 15
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm]
The set parameters are used to adjust the positional deviations of the nozzles
caused due to the movement of the nozzle U/D axes.
[3] [Standard] Button
When the applicable component is a standard one, conversion and addition
are made while the target position for placement is being computed.
[Lead] Button
When the applicable component is a leaded one, conversion and addition are
made while the target position for placement is being computed.
[BGA] Button
When the applicable component is a BGA/CSP one, conversion and addition
are made while the target position for placement is being computed.
[4] [Head 1 Clear] Button, [Head 2 Clear] Button
Using these buttons, the data parameters for all the nozzles in the
corresponding head are performed.
2.5 "Head" Window
Graphic
Development
3OM-1751
2-341303-001

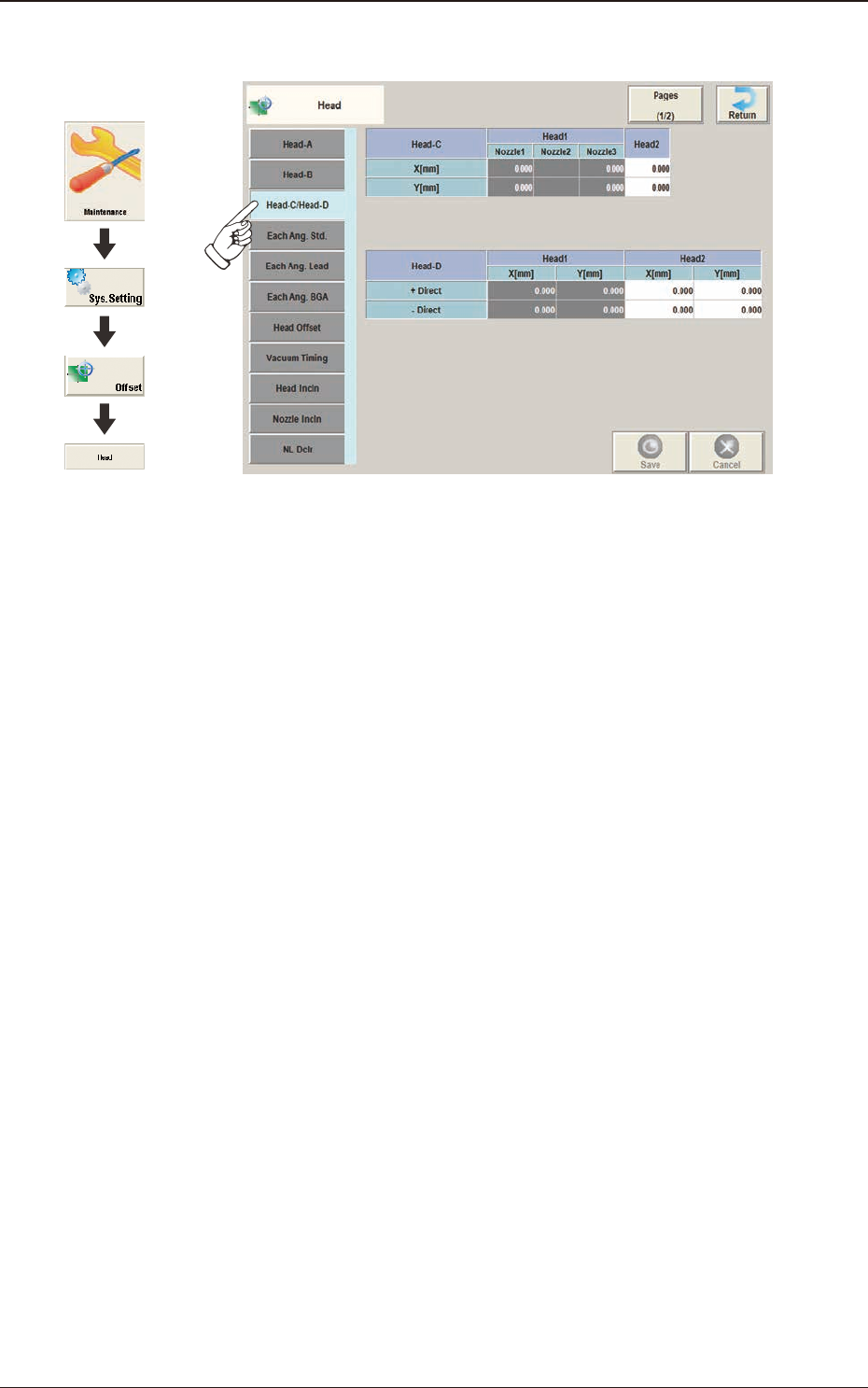

2.5.3 "Head-C/Head-D" Tab Sheet
F3B33
2.5 "Head" Window
Graphic
Development
3OM-1751
2-351303-001
2.5.4 "Each Ang. Std" Tab Sheet
[1] [2]
[3]
[4]
F3B34
[1] Nozzle 1 through 15
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm]
When the applicable component is a each angle one, conversion and addition
are made in response to the placement angle while the target position for
placement is being computed.
[3] Head Direction Selection Buttons
When this button is selected, the head direction is adjusted for each selected
angle.
[4] [Head 1 Clear] Button, [Head 2 Clear] Button
Using these buttons, the data parameters for all the nozzles in the
corresponding head are performed.
2.5 "Head" Window
Graphic
Development
