3OM-1751 2-52 1303-001 2.6.4 "Master Nozzle Level" T ab Sheet [1] F3B51 [1] Head 1 and Head 2 L [mm] Each parameter indicates the reference position (the values read by the linear measure) of the master nozzle …
3OM-1751
2-511303-001

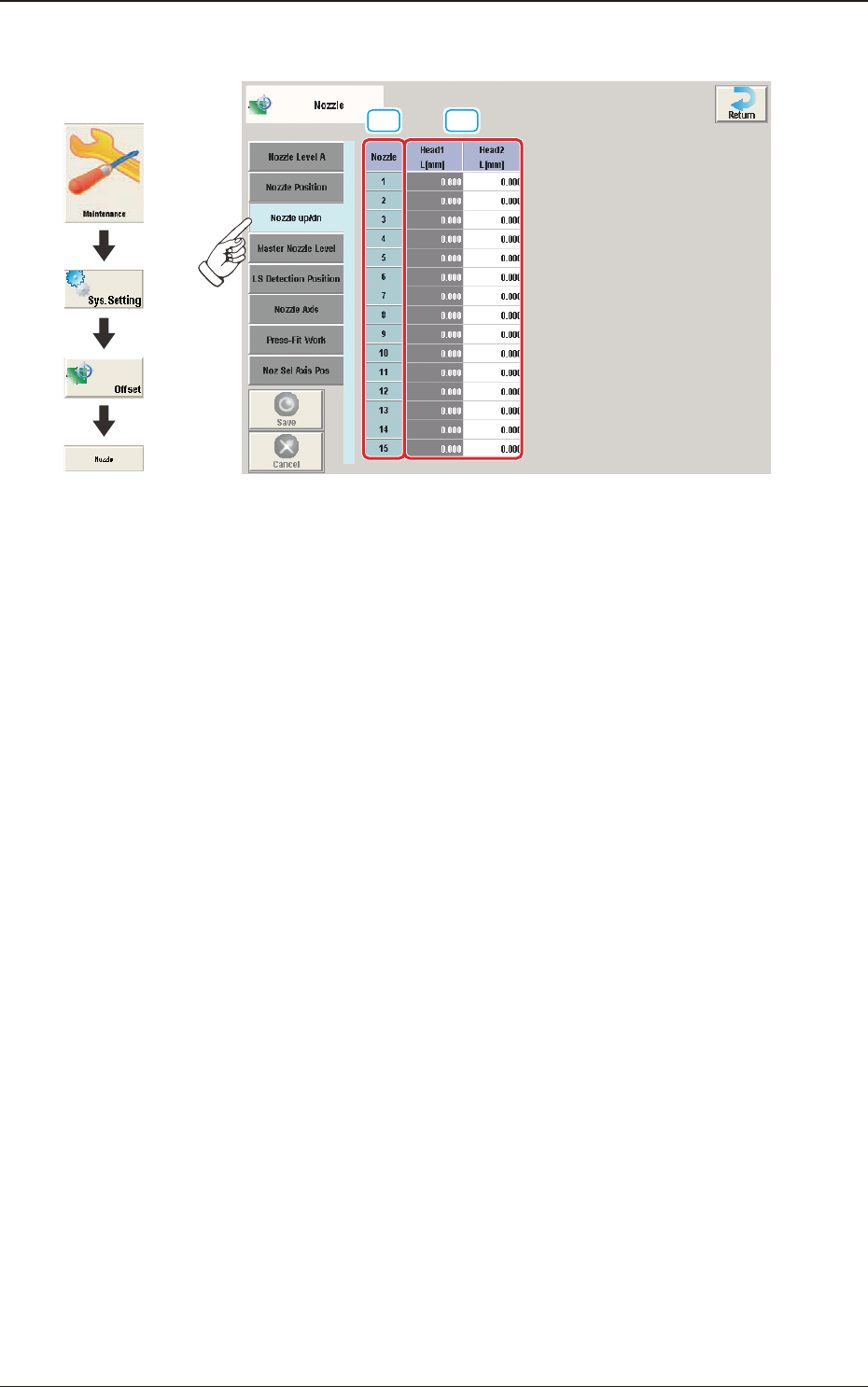

2.6.3 "Nozzle up/dn" Tab Sheet
[1] [2]
F3B50
[1] Nozzle
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
L [mm]
Displayed is the offset data for the difference between the actually measured
value and designed value for the distance between the nozzle upper surface
and the nozzle up/down lever.
2.6 "Nozzle" Window
Graphic
Development
3OM-1751
2-521303-001

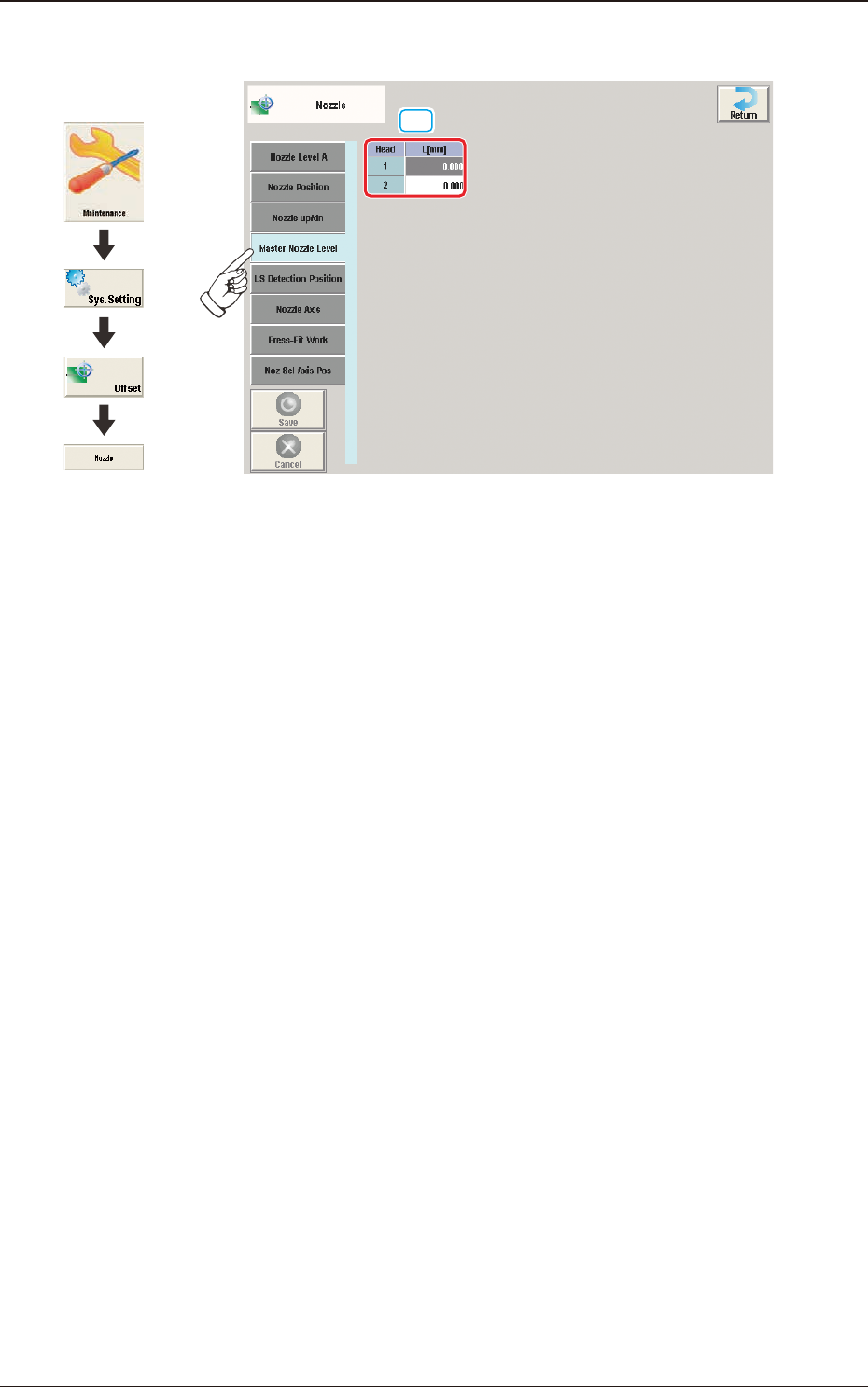

2.6.4 "Master Nozzle Level" Tab Sheet
[1]
F3B51
[1] Head 1 and Head 2
L [mm]
Each parameter indicates the reference position (the values read by the linear
measure) of the master nozzle bottom level.
Save the values of the master nozzle bottom level that was read by the linear
measure and used when the head up/down offsets were obtained with the
nozzle U/D axes being zeroed.
2.6 "Nozzle" Window
Graphic
Development
3OM-1751
2-531303-001

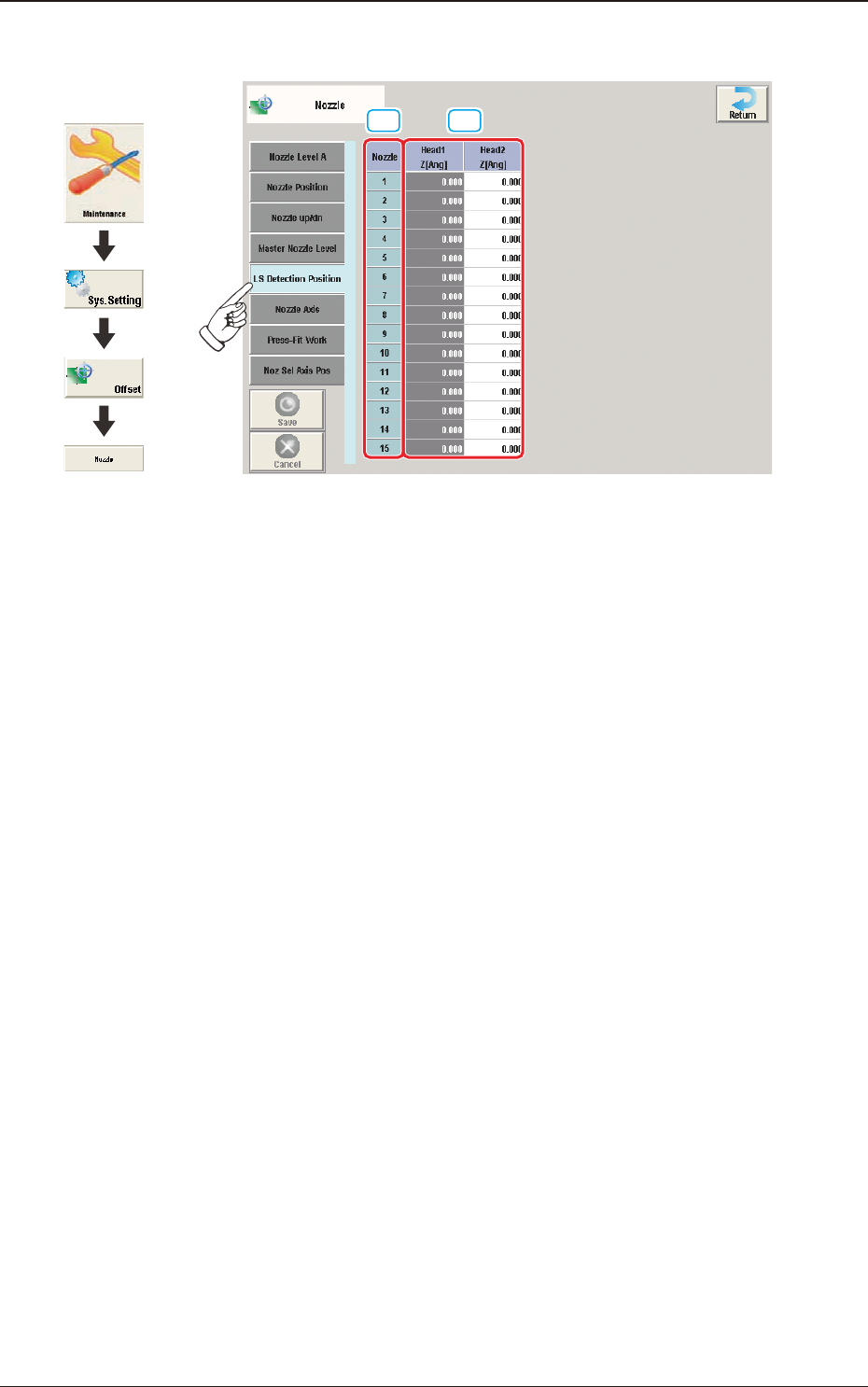

2.6.5 "LS Detection Position" Tab Sheet
[1] [2]
F3B52
[1] Nozzle
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
Z [Ang]
As these parameters are for dummy PCB, they are not used currently.
