3OM-1751
2-521303-001
2.6.4 "Master Nozzle Level" Tab Sheet
[1]
F3B51
[1] Head 1 and Head 2
L [mm]
Each parameter indicates the reference position (the values read by the linear
measure) of the master nozzle bottom level.
Save the values of the master nozzle bottom level that was read by the linear
measure and used when the head up/down offsets were obtained with the
nozzle U/D axes being zeroed.
2.6 "Nozzle" Window
Graphic
Development
3OM-1751
2-531303-001
2.6.5 "LS Detection Position" Tab Sheet
[1] [2]
F3B52
[1] Nozzle
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
Z [Ang]
As these parameters are for dummy PCB, they are not used currently.
2.6 "Nozzle" Window
Graphic
Development
3OM-1751
2-541303-001

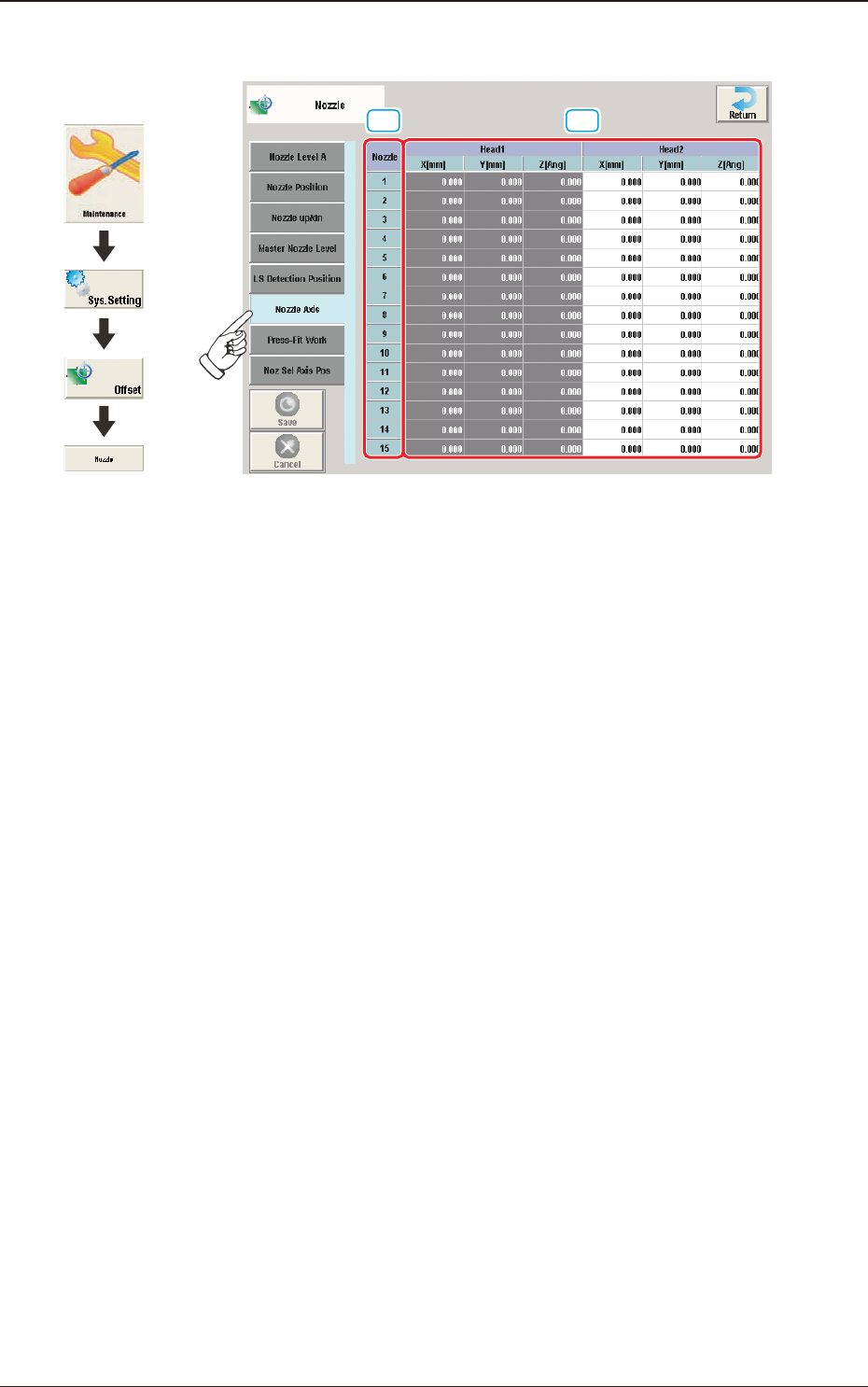

2.6.6 "Nozzle Axis" Tab Sheet
[1] [2]
F3B53
[1] Nozzle
In this section, each nozzle No. is displayed.
[2] Head 1 and Head 2
X (Horizontal) and Y (Vertical) [mm], Z [Ang]
Displayed is the offset data for nozzle replacement.
The displayed values indicate the offsets for the lowest levels of the special
nozzles on the heads.
The lowest level of each nozzle is measured by the component recognition
camera and the difference between the actual and recognized levels is
compensated for.
2.6 "Nozzle" Window
Graphic
Development
