3OM-1751 2-78 1303-001 [3] Cone Recog Block 1, 2 Whether or not the corn recognition is performed automatically per head, is set in this selection box. AUTO : When selected, the corn recognition is performed automaticall…
3OM-1751
2-771303-001
·

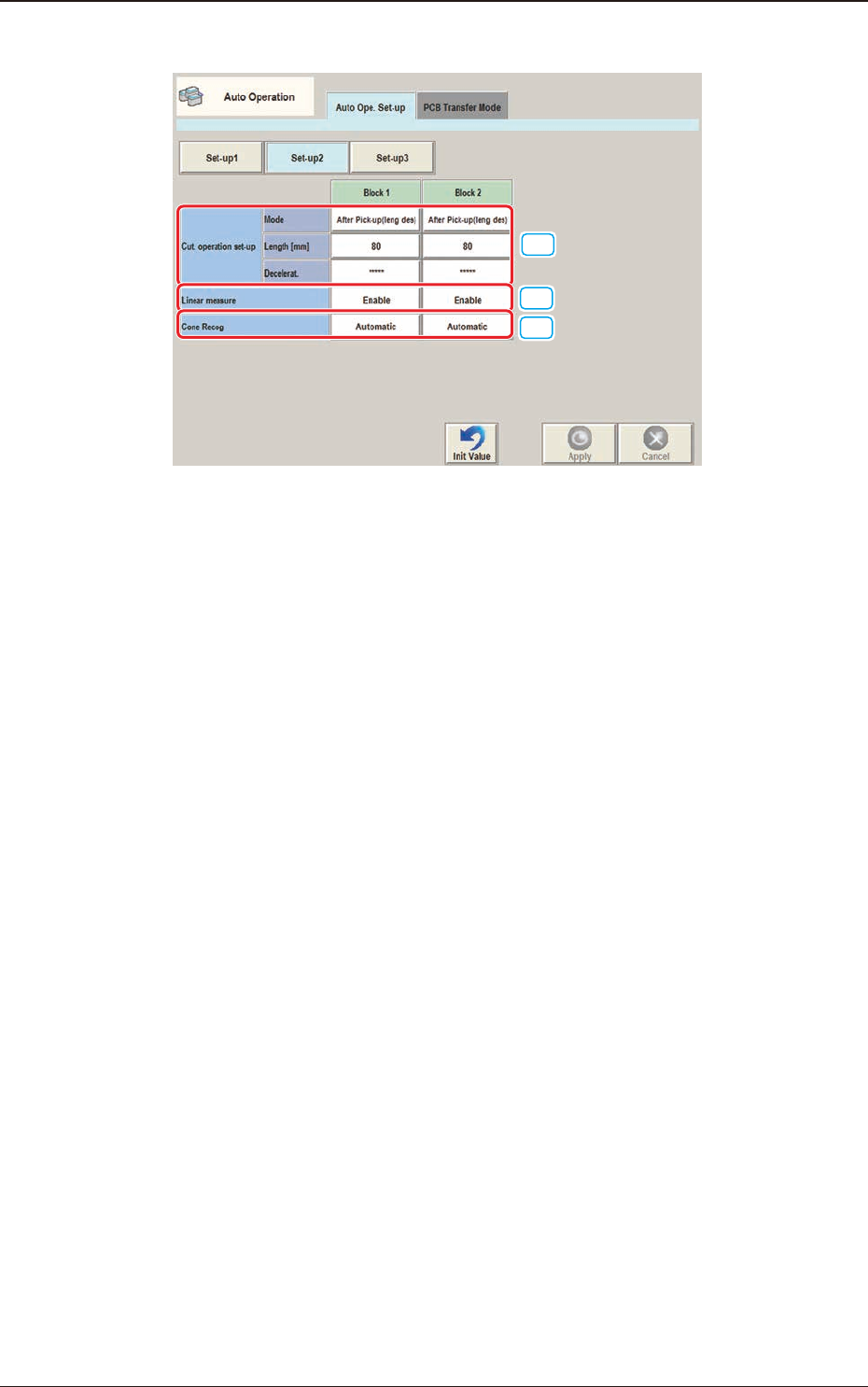

Set-up 2
[1]
[2]
[3]
F3B74
[1] Cutter operation set-up
Block 1, 2
Specify the following items for each cutter operation.
Mode
Select one of the following options to determine whether or not the cutter
function should be used.
Not Cut
After Pick-up(leng des)
At Transfer(leng des)
At Transfer(every time)
Cancel
Length [mm]
Set the length of the tape to be cut by each cutter.
Deceleration
Select one of the following options to determine the rate of the speed
reduction.
Full Speed, 10%Decr, 20%Decr, 30%Decr, 40%Decr,
50%Decr, 60%Decr, 70%Decr, 80%Decr, 90%Decr
[2] Linear measure
Block 1, 2
Whether or not the measurement using the linear measure is enabled, is
selected in this data box.
3.1 "Auto Ope. Set-up" Tab Sheet
3OM-1751
2-781303-001
[3] Cone Recog
Block 1, 2
Whether or not the corn recognition is performed automatically per head, is
set in this selection box.
AUTO
: When selected, the corn recognition is performed automatically.
Disable
: When selected, the corn recognition is not performed.
Note
(a) When the corn recognition function is used, the reference mark
recognition is not available.
(b) It is available when the high-speed head is used.
•
Set-up 3
[1]
[3]
[4]
[2]
[5]
[6]
[7]
F3B75
[1] Dclr of conveyor width's axis
Select the deceleration setting each for conveyor width axis from the
following items.
Full Speed, 10% Decr, 20% Decr, 30% Decr, 40% Decr,
50% Decr, 60% Decr, 70% Decr, 80% Decr, 90% Decr
Note
When the ambient temperature is lower than the specied temperature (20°C
± 10°C), perform the deceleration setting each for the conveyor width axis
and backup axis referring to the following setting standard.
•
Setting Standard based on Ambient Temperature
10°C or more : Full Speed
7 to 10°C : 50%
Less than 7°C : 70%
3.1 "Auto Ope. Set-up" Tab Sheet
3OM-1751
2-79
1303-001
[2] Dclr of backup axis
Select the deceleration setting each for backup axis from the following items.
Full Speed, 10% Decr, 20% Decr, 30% Decr, 40% Decr,
50% Decr, 60% Decr, 70% Decr, 80% Decr, 90% Decr
Note
When the ambient temperature is lower than the specied temperature (20°C
± 10°C), perform the deceleration setting each for the conveyor width axis
and backup axis referring to the following setting standard.
•
Setting Standard based on Ambient Temperature
10°C or more : Full Speed
7 to 10°C : 50%
Less than 7°C : 70%
Release [time]
When the set No. of backup axis operations is completed, the backup axis
deceleration setting is cancelled.
Set Value Range : 0 to 99
Replace [min]
When the set time period, standby time period and stop time period have
been elapsed, the deceleration control is performed again.
[3] Cover tape ll up Notice warning
Function
The cut tape debris amount is calculated based on the counted number
decided based on the component reload data (Tape feed, Feed pitch and
Type) on the component library data and the cut tape FULL alarm is issued
or machine stop operation is performed. Set "Enable" or "Disable" in this
selection box.
Check interval
The interval is selected from the following items.
Every 1000 mm
Every 500 mm
Every 300 mm
3.1 "Auto Ope. Set-up" Tab Sheet
