3OM-1751
2-951303-001
5. "Password Setting" Window

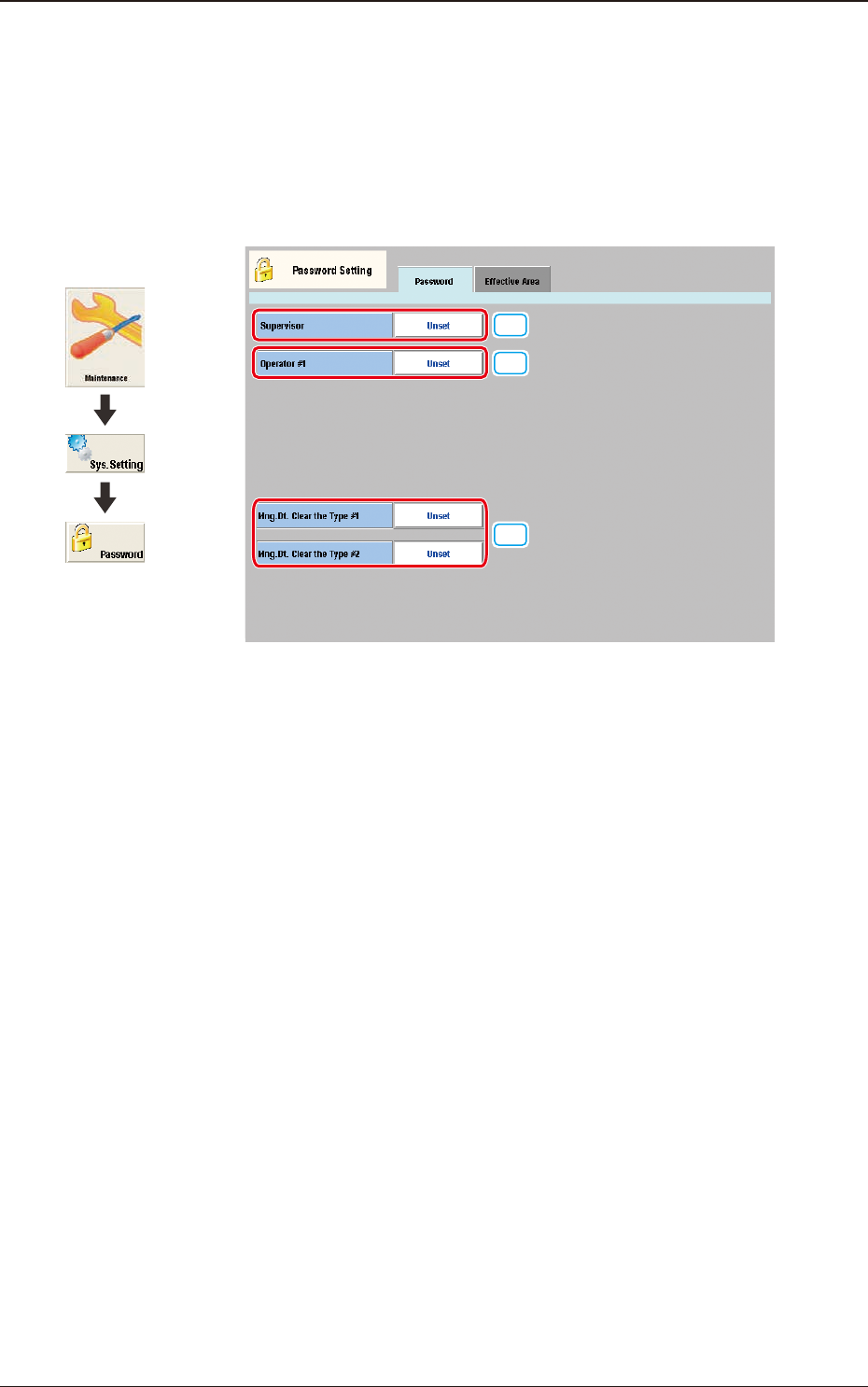

5.1 "Password" Tab Sheet
This window enables the operator to set a password according to the given
authority.
[1]
[2]
[3]
F3B86
[1] Supervisor
A password can be set in this group box for the user who has the scope of
authority as "Supervisor".
[2] Operator #1
A password can be set in this group box for the user who has the scope of
authority as "Operator #1".
[3] Mng. Dt. Clear the Type #1
Mng. Dt. Clear the Type #2
A password can be set in this group box for the user who has the scope of
authority for clearing the management data type 1 and type 2 (totalization
data).
5. "Password Setting" Window
Graphic
Development
3OM-1751
2-961303-001
·

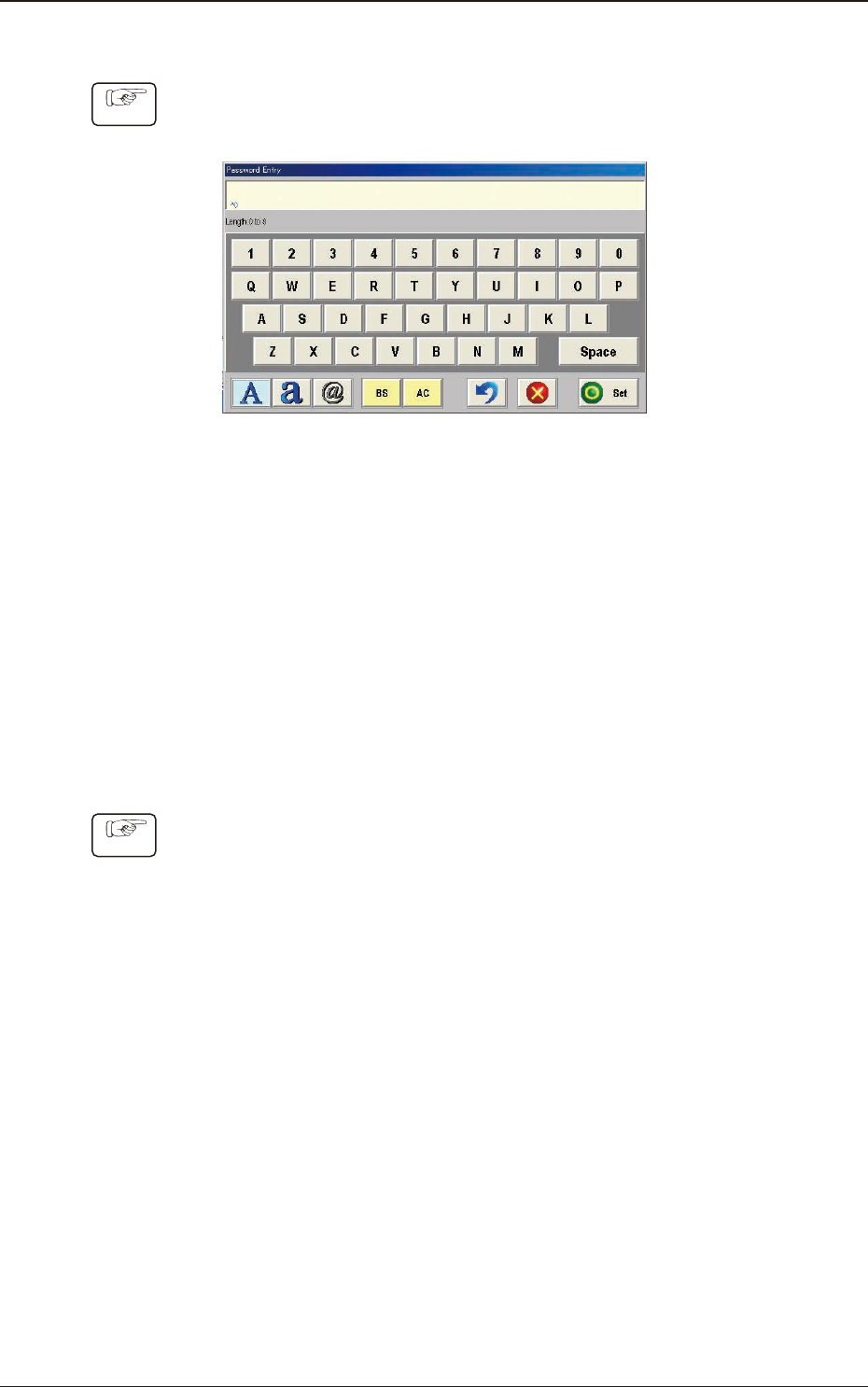

How to set or change a password
Procedure
(1) Press the button appropriate for the user's access authority.
(The "Password Entry" window will be displayed).
F3B87
(2) Enter the desired password.
(The entered string of characters are expressed using "*" in the "Password"
entry box.)
(3) When the [Set] button is pressed, the "Password Reentry" window opens.
(Enter the same password again and press the [Set] button.
The password is set or changed and "Set" appears in red on the right side of
the selected password entry button.)
·
How to cancel the set password
Procedure
(1) Press the button appropriate for the user's access authority.
(The "Password Entry" edit window will be displayed.)
(2) Press the [Set] button without entering any characters in the entry box. The
"Password Reentry" window opens. Press the [Set] button again without
entering any characters.
(The preset password is canceled and "Not Set" appears in blue on the right
side of the selected password entry button.)
5.1 "Password" Tab Sheet
3OM-1751
2-971303-001

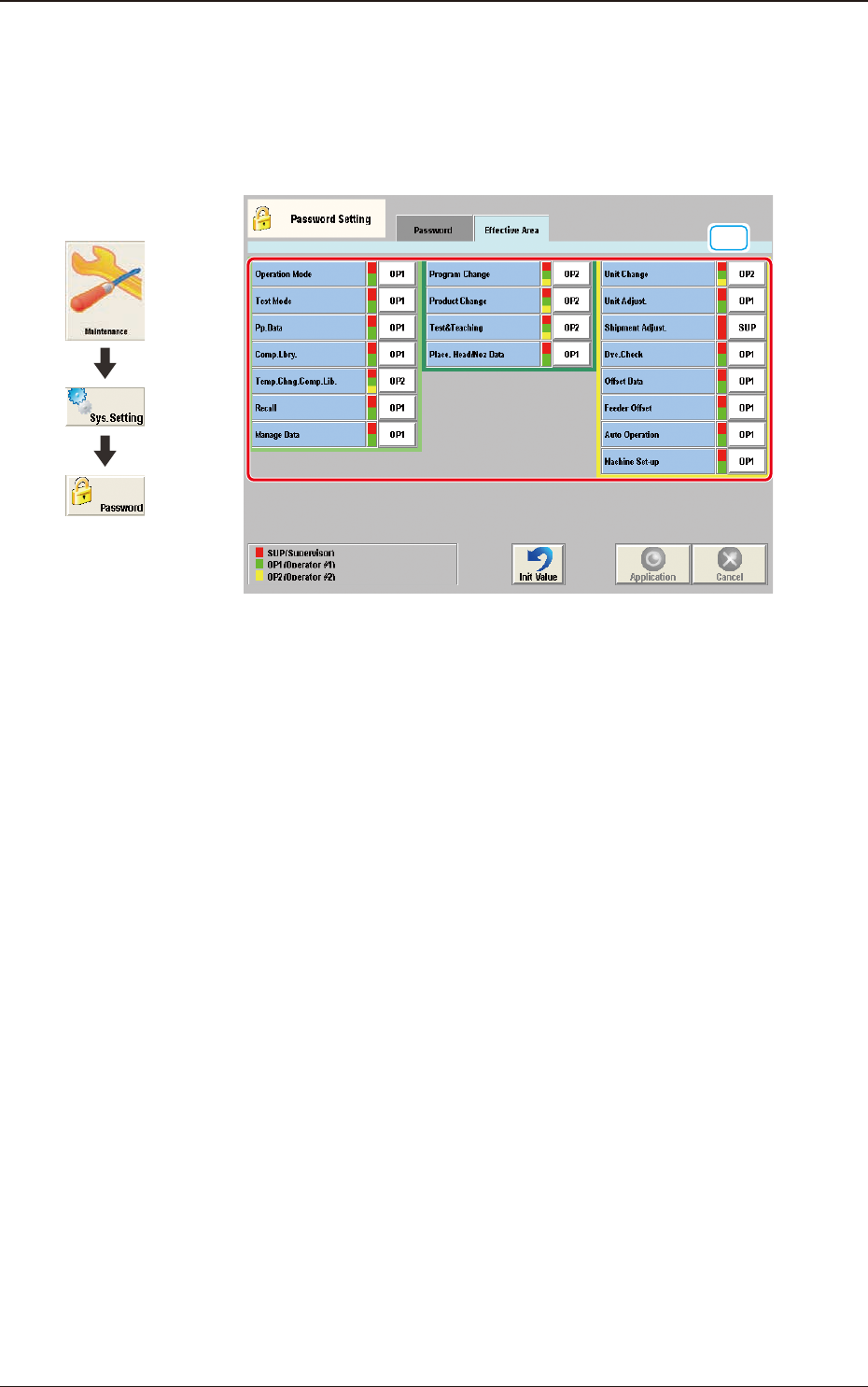

5.2 "Effective Area" Tab Sheet
This window enables the operator to set the user's authority range.
When the [Effective Area] tab is pressed in the "Password Setting" window, the
"Effective Area" tab sheet appears.
[1]
F3B88
[1] Effective Area setting button
Set the scope of authority (available range) to use the described functions.
Every time the button (corresponding to the desired function) is pressed, the
label changes in scrolling such as "OP2"
→
"OP1"
→
"SUP"
→
"OP2".
The labels on the buttons indicate that the functions described on the left side
of the buttons are available for the following operators.
SUP
: This indicates that only the supervisor is given the authority to
use the function.
A red bar appears on the right side of the function name.
OP1
: This indicates that the supervisor and the operator #1 are given
the authority to use the function.
Red and green bars appear on the right side of the function name.
OP2
: This indicates that the supervisor, the operator #1, and the
operator #2 are given the authority to use the function.
That is, the selection means that all operators can use the function.
Red, green, and yellow bars appear on the right side of the
function name.
5.2 "Effective Area" Tab Sheet
