3OM-1751
1-271303-001
[3] Conveyor Setup Buttons
When the target position is to be moved the conveyor width adjustment
values are setup using the following buttons.
[Tgt Wd] Button
When this button is pressed the "Tgt Wd" input window appears. When a
value is entered and the [SET] button is pressed the target value is setup.
[Clearance] Button
When this button is pressed the "Clearance" input window appears.
Set the data for the conveyor width to have some margin from the PCB
size set in the pattern program. The actual conveyor width is "PCB Size"
(Target Width) + "Clearance" (Recommended Value: 0.5 mm).
When a value is entered and the [SET] button is pressed the clearance
value is setup.
[Base Pos] Button
When this button is pressed the "Base Pos" input window appears. In
this window the base position adjusting data is setup. When the value is
entered and the [SET] button is pressed, the base position is setup.
·
Conveyor Width Manual Setup
When the conveyor width is to be set up, use the following procedure.
Procedure
(1) In each input window displayed by pressing the [Tgt Wd], [Clearance] and
[Base Pos] buttons for the "Conveyor" width, enter the data parameter for
each item.
(2) Within 10 seconds after pressing the [Tgt Wd] button, press the [START]
button on the operation panel.
(The conveyor width will be adjusted to ("Tgt Wd" value + "Clearance"
value). Also, the conveyor will be moved to the set base position.)
4.3 "CONVEYOR" Window
3OM-1751
1-281303-001

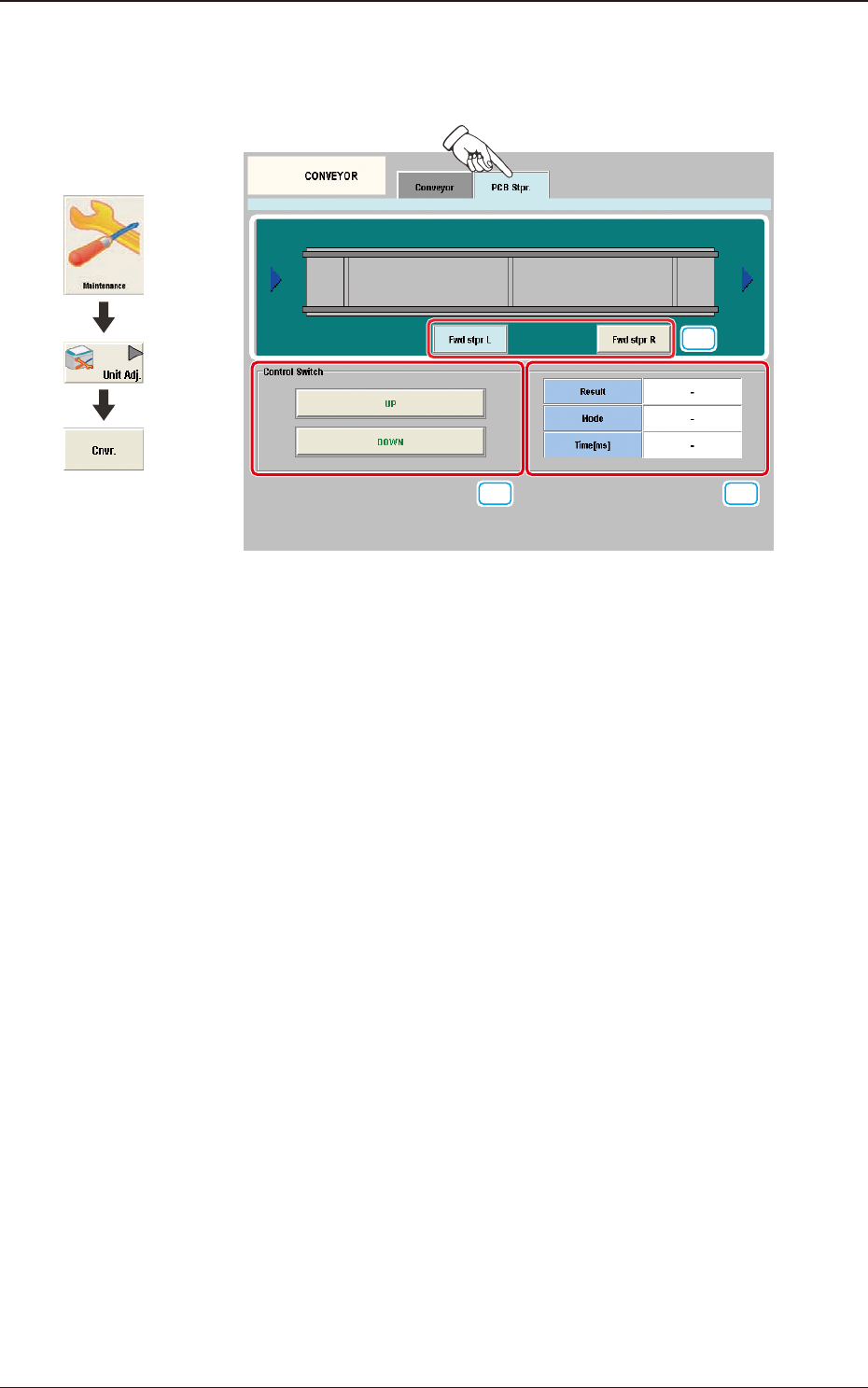

4.3.2 "PCB Stpr." Tab Sheet
The adjustment for each PCB stopper is performed on this tab sheet.
[1]
[2] [3]
"CONVEYOR" Window F3A21
[1] PCB Stopper Selection Buttons
Using these buttons the PCB stopper where the operation is to be performed
is selected.
[2] Control Switch
[UP] Button
When the [START] button is pressed on the operation panel within 10
seconds after this button is pressed, the selected PCB stopper is moved up.
[DOWN] Button
When the [START] button is pressed on the operation panel within 10
seconds after this button is pressed, the selected PCB stopper is moved
down.
[3] Status Display
Result
In this data box the PCB stopper operation result is displayed as "OK" or
"NG".
Mode
In this data box the PCB stopper present status is displayed as "UP" or
"Down".
Time [ms]
In this data box the PCB stopper operation time is displayed.
Graphic
Development
4.3 "CONVEYOR" Window
3OM-1751
1-291303-001

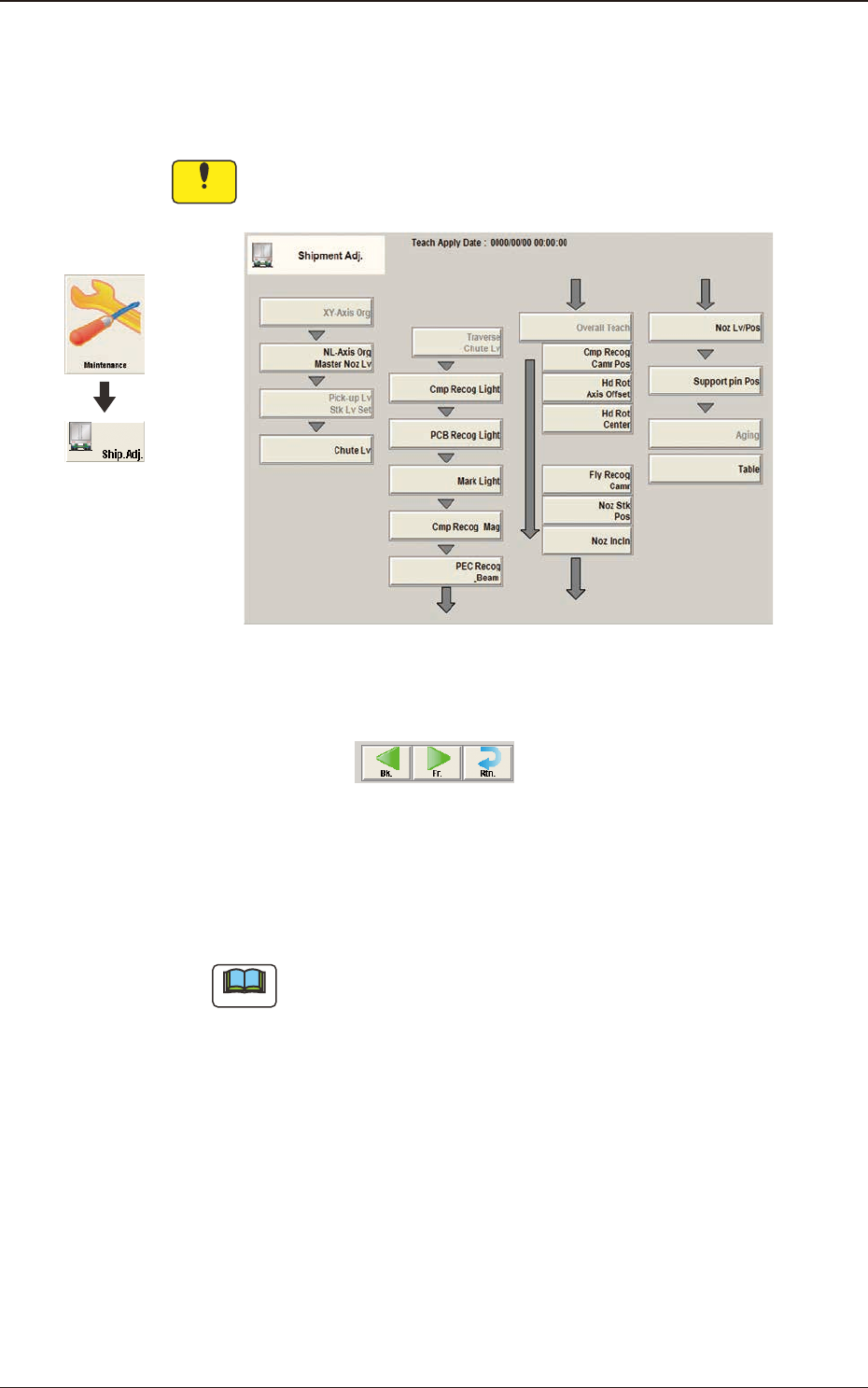

5. "Shipment Adj." Window
In this window, the teaching operations to be performed when the machine is
shipped from the factory, are summarized.
Notice
In normal cases, it is not required to perform this teaching operation
because the offsets are factory-adjusted upon shipment of the machine.
F3A22
Common Operation Description
F3A23
[Bk.] Button
When this button is pressed, the window for the current items is changed to
the one for the previous Shipment Adjustment items.
Note
As there is no previous items for the "XY-Axis Org" window, this button is
not display in the "XY-Axis Org" window.
[Fr.] Button
When this button is pressed, the window for the current items is changed to
the one for the next Shipment Adjustment items.
[Rtn.] Button
When this button is pressed, the window is changed to the one for the
shipping adjustment initial display window.
Graphic
Development
