3OM-1751 1-38 1303-001 • T eaching Jig for Component Recognition Camera Lighting The following jig components are used for the teaching on the component recognition camera lighting. Before the teaching, combine the jig w…
3OM-1751
1-371303-001
[4] Teaching Procedure Display Area
Displayed are the buttons to be used for the teaching operations.
Select camera
Each camera in the graphic image of the machine is provided with a button
function. When a button is pressed, the corresponding camera is selected for
the teaching operation
[XY Beam Save Pos] Button
When pressed, this button moves the XY beam to the escape position.
[Jin Set Conf]
This button is used to conrm the jig attachment.
[Teach Start] Button
When pressed, this button performs the teaching operation for the selected
camera.
[Jig Detach Conf]
This button is used to conrm the jig removal.
[Save] Button
When this button is pressed, the teaching results are saved.
5.4 "Cmp Recog Light" Window
3OM-1751
1-381303-001
•

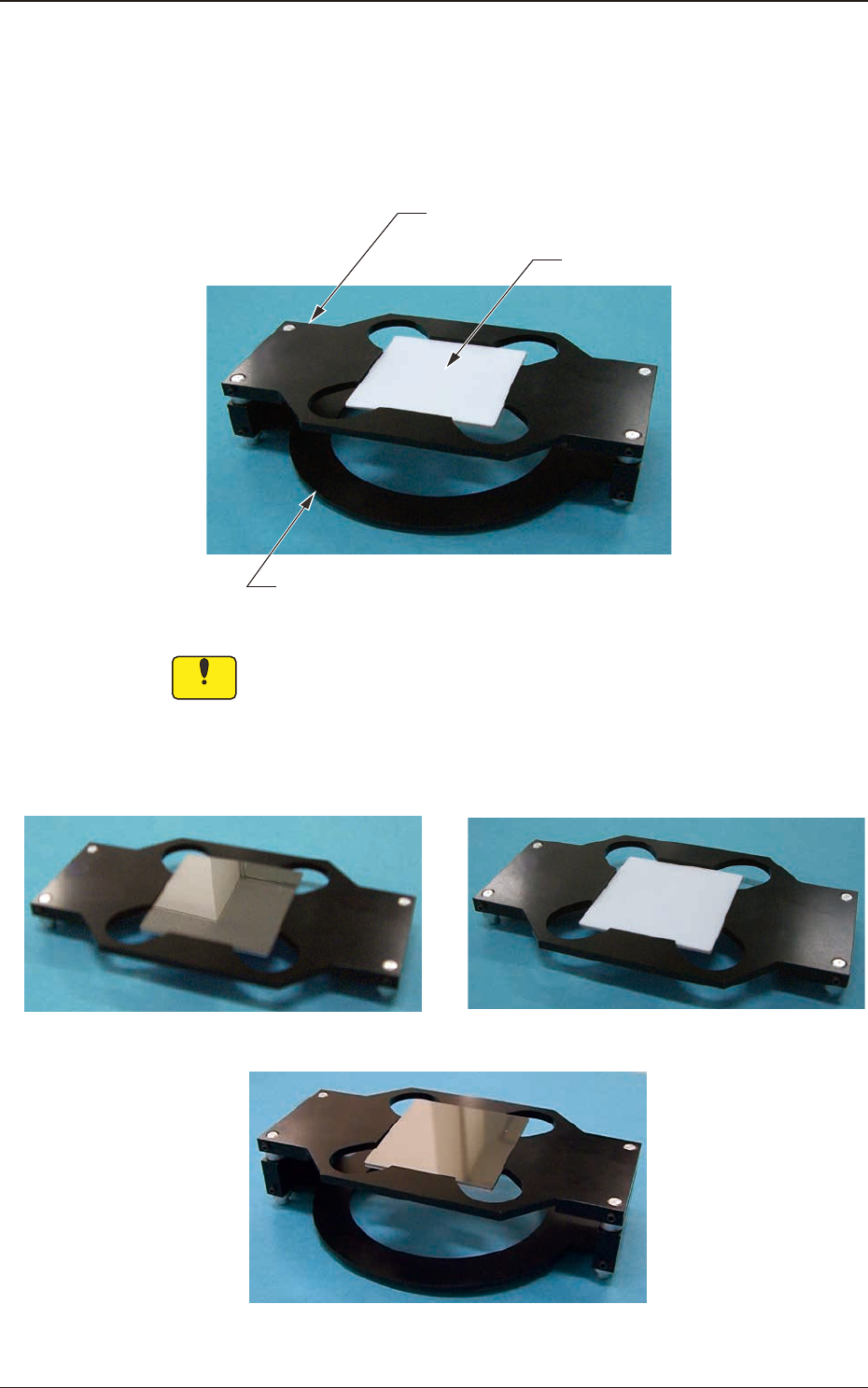

Teaching Jig for Component Recognition Camera Lighting
The following jig components are used for the teaching on the component
recognition camera lighting. Before the teaching, combine the jig with the
teaching glass jig mounting support jig and place it on the PEC recognition
camera. After the teaching operation, remove it.
Teaching Glass Jig Mounting Support Jig 1
Teaching Glass Jig
Teaching Glass Jig Mounting Support Jig 2 (High Base Jig)
(JG-0287,KYF-M8840-00)
(JG-0286,KYF-M8830-00)
F3A28
Notice
Set-up the teaching glass jig mounting support jig securely so that it does
not rise.
If the mounting condition is not satisfactory, the head, etc., might be
damaged.
•
Teaching Jig Set-up Diagram
Mirror Plane turned down and Tall Jig used
White Down Specular Down
F3A29
5.4 "Cmp Recog Light" Window
3OM-1751
1-391303-001
·
Teaching Procedure
Note
Before performing the teaching operation, press the [ZERO] button in the
"Control" menu to zero all axes.
Procedure
(1) Select the component recognition camera for which the teaching is
performed, in the "Select Camera" section, and lighting pattern.
(2) Press the [XY Beam Save Pos] button and within 10 seconds, press the
[START] button on the operation panel.
Note
The lock for the transparent cover is undone automatically.
(3) Open the transparent cover and set-up the teaching jig for the component
recognition camera lighting on the component recognition camera according
to the lighting pattern.
Reference
Refer to "Teaching Jig Set-up Diagram" for the combination of the
component recognition lighting teaching jigs.
(4) Press the [JigSet Conf] button.
(5) Close the transparent cover and press the Cover Lock Switch ([Cover Ready]
button) on the main machine.
(The transparent cover will be locked).
(6) Press the [Teach Start] button and within 10 seconds, press the [START]
button on the operation panel.
(The corresponding window enables you to perform a teaching operation on
the lighting of the component recognition camera.)
(7) Press the Cover Lock Switch ([Cover Ready] button) on the main machine
and open the transparent cover in the corresponding block.
(8) Remove the set-up component recognition lighting teaching jigs.
Notice
Unless the lighting teaching jigs are removed, the head would be
damaged.
(9) Press the [JigDetach Conf] button.
(10) Press the [Save] button to save the teaching results.
(11) Close the transparent cover and press the Cover Lock Switch ([Cover Ready]
button).
5.4 "Cmp Recog Light" Window
