1 6301572383 GUIDE,LINEAR 1 858C--100-001 222L0885 2 6301446912 MOTOR,AC-SERVO 2 858C--100-002 4M150234 3 6301446929 MOTOR,AC-SERVO 4 858C--100-003 4M150235 6 6301536163 ENCODER(LIDA407 T APESET) 2 858C--100-006 23G40029…
MODEL GXH-3JPH
0712-002

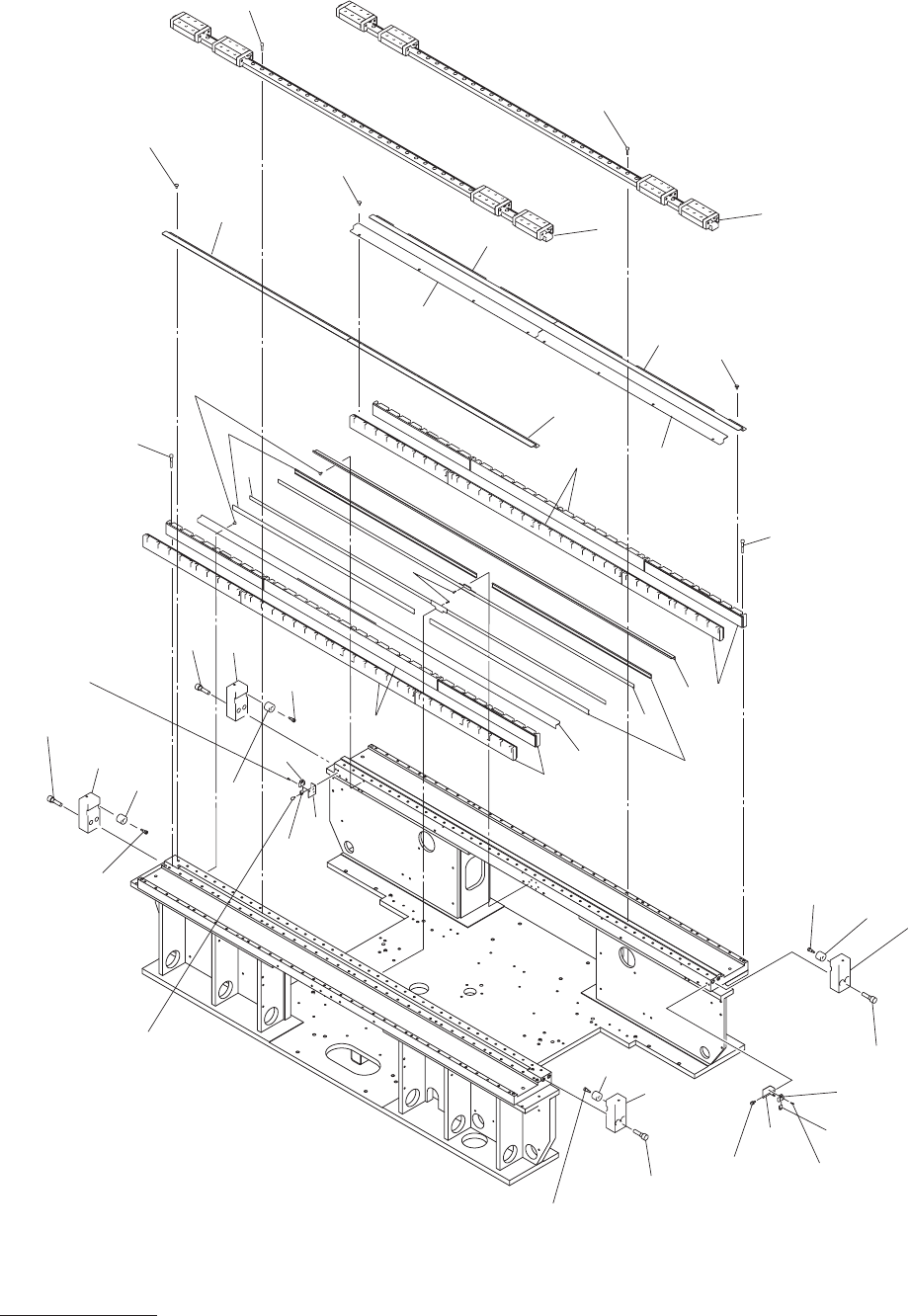

ビーム部
BEAM SECTION
Fig. C-1 Y
ビーム
L Y
Beam L
12
13
12
13
14
11
11
15
10
10
12
13
12
13
7
8
6
6
19
1
18
19
20
21
1
3
2
3
2
16
16
61
52
.
75
.
69
61
59
66
67
67
67
78
78
59
18
63
57
.
70
57
.
70
57
.
70
64
.
74
.
71
61
57
.
70
64
.
74
.
71
52
.
75
.
69
61
C-1 illust-1
1 6301572383 GUIDE,LINEAR 1 858C--100-001 222L0885
2 6301446912 MOTOR,AC-SERVO 2 858C--100-002 4M150234
3 6301446929 MOTOR,AC-SERVO 4 858C--100-003 4M150235
6 6301536163 ENCODER(LIDA407 TAPESET) 2 858C--100-006 23G40029
7 6301239835 MECH PARTS(LIDA407 HOLDE) 2 858C--100-007 226J1870
8 6301536132 MECH PARTS(LIDA407HOLDER) 2 858C--100-008 226J2344
10 6300000245 SENSOR,PHOTO 2 B2201,B2203
858C--100-010 23G10001
11 6300000269 SENSOR,PHOTO(CONNECTOR) 2 858C--100-011 23G10003
12 6301560731 BLOCK 4 858C--100-012 211G5284
13 6301560755 ROD 4 858C--100-013 216C0954
14 6301560786 BRACKET 1 858C--100-014 211FC243
15 6301560793 BRACKET 1 858C--100-015 211FC244
16 6301535036 PLATE 2 858C--100-016 211DC508
18 6301560847 COVER 2 858C--100-018 211AB875
19 6301560854 COVER 2 858C--100-019 211AB876
20 6301572659 COVER 1 858C--100-020 211AC024
21 6301572666 COVER 1 858C--100-021 211AC025
52 6300007619 BOLT,HEX-SCT 4 M4X8 858C--100-502 221A0016
57 6300007770 BOLT,HEX-SCT 4 M5X20 858C--100-507 221A0032
59 6300007930 BOLT,HEX-SCT 152 M6X40 858C--100-509 221A0048
61 6300008241 BOLT,HEX-SCT 8 M12X40 858C--100-511 221A0079
63 4111087103 SCR FLT 3X10 4 858C--100-513 221E0488
64 4110407803 SCR PAN 3X12 4 858C--100-514 221E0489
66 4110512804 SCR TRS 4X8 10 858C--100-516 221E0533
67 4111139109 SCR TRS 5X10 24 858C--100-517 221E0534
69 4111414008 WASHER V 4X9X0.8 4 858C--100-519 221H0315
70 4111414107 WASHER V 5X10X1 4 858C--100-520 221H0318
71 4110889005 WASHER F 3X6X0.5 4 858C--100-521 221H0337
74 4110864408 WASHER SPR 3 4 858C--100-524 221H0280
75 4111412905 WASHER SPR 4 4 858C--100-525 221H0284
78 6300007893 BOLT,HEX-SCT 82 M6X20 858C--100-528 221A0044
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
C-1
C-1 list-1
MODEL GXH-3JPH
0712-002
224
225
224
225
223
255
.
270
.
276
255
.
270
.
276
253
262
253
262
ビーム部
BEAM SECTION
Fig. C-3 Y
ケーブルラック
Y
Cable Rack
C-3 illust-1
