51 6301555379 COVER 1 858F A-100-051 21 1AB828 52 6301592312 BOX 1 858F A-100-052 21 1B1321 53 630161 1433 PLA TE 1 858F A-100-053 21 1DD376 54 6301552477 BRACKET 1 858F A-100-054 21 1FC120 56 6301518428 SUPPORT 1 858F A…
MODEL GXH-3JPH
1004-003
71
84
62
51
56
53
52
75
.
76
.
77
78
.
81
.
82
79
.
81
.
82
83
54
72
.
73
.
74
84
61
注)
Key No.61(○印)は重要保守部品となっております。交換方法については高度な
技術を要しますので、当社サービス員にご相談下さい。
Notice) The Key No. 61 (with a circle) is an important maintenance component.
Because high-grade technique is required for the replacement of this component,
consult our service personnel.
92-01
92
92-02
91
操作
PC
部
OPERATION PC SECTION

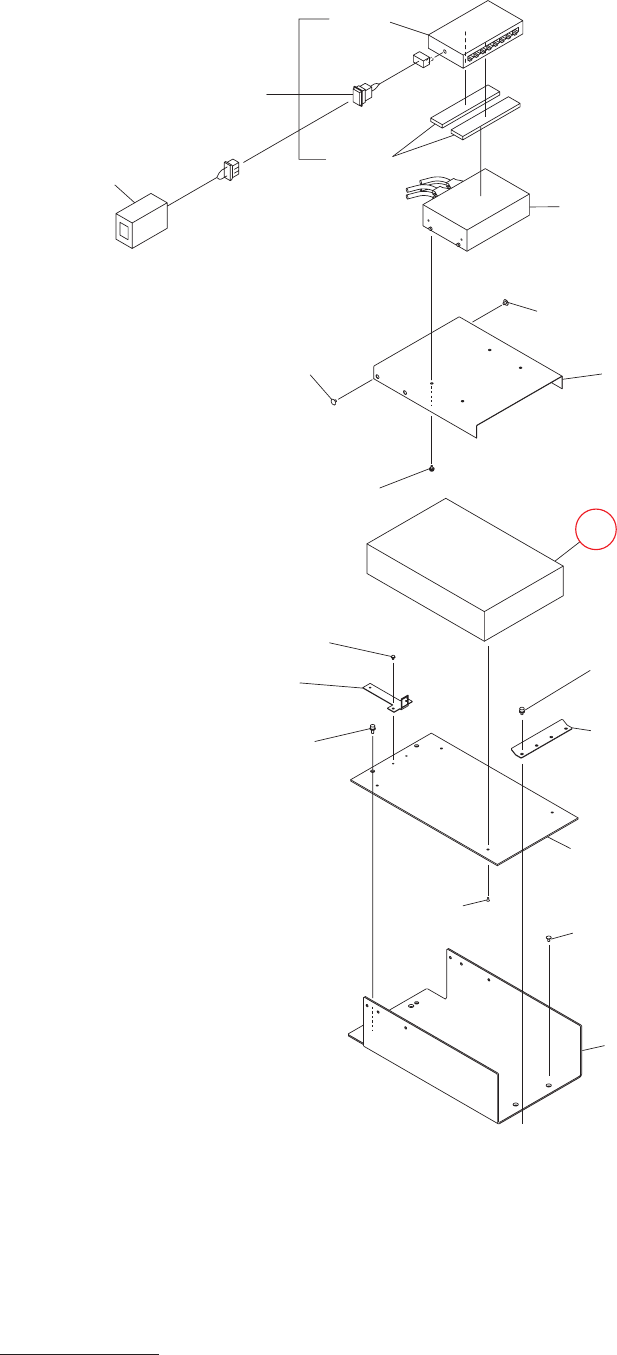

Fig. FA-1
フレーム部
Frame Section
FA-1 illust-1
51 6301555379 COVER 1 858FA-100-051 211AB828
52 6301592312 BOX 1 858FA-100-052 211B1321
53 6301611433 PLATE 1 858FA-100-053 211DD376
54 6301552477 BRACKET 1 858FA-100-054 211FC120
56 6301518428 SUPPORT 1 858FA-100-056 211K3315
61 6301678870 EQUIPMENT(ASSEMBLED PC) 1 U71 858FA-100-151 4U260355
62 6301237152 UNIT,I/O 1 U73 858FA-100-152 4U250154
71 4110022600 SCR FLT 3X6 4 858FA-100-851 221D0216
72 4110420703 SCR PAN 3X8 2 858FA-100-852 221E0499
73 4111191909 WASHER V 3X7X0.5 2 858FA-100-853 221H0311
74 4110864408 WASHER SPR 3 2 858FA-100-854 221H0280
75 4111131400 SCR PAN 4X6 4 858FA-100-855 221E0509
76 4111414008 WASHER V 4X9X0.8 4 858FA-100-856 221H0314
77 4110081706 WASHER SPR 4 4 858FA-100-857 221H0283
78 6300007732 BOLT,HEX-SCT 2 M5X8 858FA-100-858 221A0028
79 6300007756 BOLT,HEX-SCT 2 M5X12 858FA-100-859 221A0030
80 6300010220 WASHER 2 BW5 858FA-100-860 221H0005
81 4110881702 WASHER V 5X10X1 2 858FA-100-861 221H0317
82 4111416705 WASHER SPR 5 4 858FA-100-862 221H0287
83 4110024505 SCR FLT 5X8 4 858FA-100-863 221D0234
84 4111408007 SCR TRS 5X6 4 858FA-100-864 221E0536
91 080300AF ASSY_ADAPTOR 1 080300AF
92 080300AG ASSY_HUB 1 080300AG
92 -01 6301469126 UNIT,I/O 1 U72 858FA-100-251 4U250209
92 -02 080300AP MECH PARTS(RUBBER MAGNET) 1 858FA-100-254 080300AP
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FA-1
FA-1 list-1
MODEL GXH-3JPH
1004-003
-U72
-U73
-U71
-U71
162
See Fig. FA-1
Key No.61
155
154
163
163
151
152
152
153
157
156
See Fig. FA-1
Key No.62
See Fig. FA-1
Key No.66
X7304
X7305
X7306
X7102
X7202 X7201
X7203
X7103
X7501
X7105
X7107
X7308
X7309
X17101
X0514
X7401
X7106
X7108
X9103
X9104
X7403
X7403
X8102
X7101
操作
PC
部
OPERATION PC SECTION
Fig. FA-2
ケーブル
Cable
FA-2 illust-1
