51 6301610740 P ANEL 1 858FC-100-051 21 1C1386 53 6301596792 PLA TE 1 858FC-100-053 21 1DD197 54 630159241 1 COVER 1 858FC-100-054 21 1AC277 55 6301518428 SUPPORT 1 858FC-100-055 21 1K3315 56 6301613147 BRACKET 1 858FC-1…
MODEL GXH-3JPH
0712-002
77
.
81
.
79
62
64
63
51
54
53
55
62-01
62-02
62-04
62-03
77
.
81
.
80
78
.
81
.
79
74
.
76
.
75
78
.
81
.
79
56
認識
PC
部
RECOGNITION PC SECTION

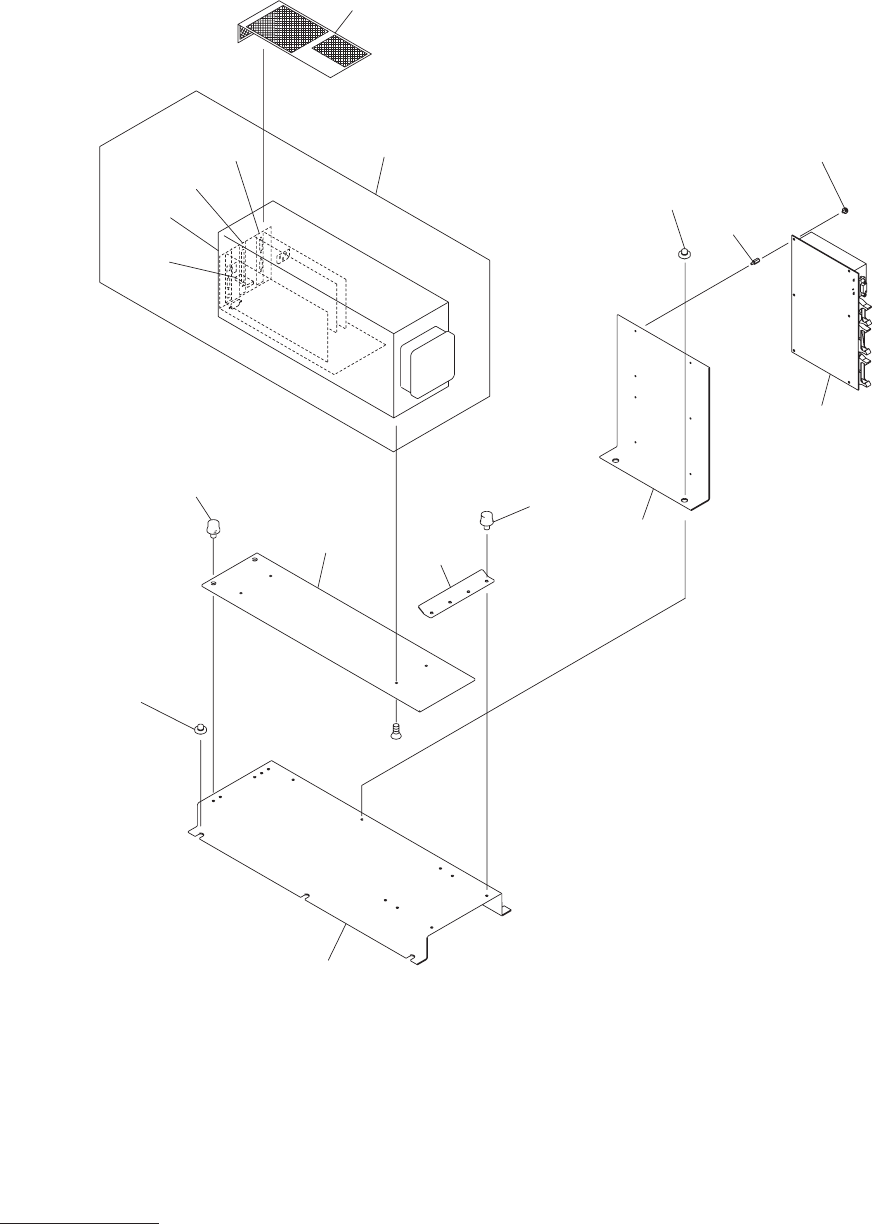

Fig. FC-1
電装部
Electorical Section
FC-1 illust-1
51 6301610740 PANEL 1 858FC-100-051 211C1386
53 6301596792 PLATE 1 858FC-100-053 211DD197
54 6301592411 COVER 1 858FC-100-054 211AC277
55 6301518428 SUPPORT 1 858FC-100-055 211K3315
56 6301613147 BRACKET 1 858FC-100-056 211FD063
62 6301623450 ASSY,EQUIPMENT 1 858FC-100-152 0U260019
62 -01 6301511658 P.C.B,MOUNT 1 U92 4B111572
62 -02 6301270340 P.C.B,MOUNT 1 U94 4B111484
62 -03 6301602363 EQUIPMENT 1 U91 4U260336
62 -04 6301622903 UNIT,I/O 1 4U250239
63 6301455907 P.C.B,MOUNT 1 858FC-100-153 4B111556
64 6300699616 ACCESSORY,P.C.B 6 858FC-100-154 23L10045
74 4111131400 SCR PAN 4X6 10 858FC-100-854 221E0509
75 4111414008 WASHER V 4X9X0.8 10 858FC-100-855 221H0315
76 4110081706 WASHER SPR 4 10 858FC-100-856 221H0283
77 6300007732 BOLT,HEX-SCT 4 M5X8 858FC-100-857 221A0028
78 6300007756 BOLT,HEX-SCT 6 M5X12 858FC-100-858 221A0030
79 6300010220 WASHER 8 BW5 858FC-100-859 221H0005
80 4110881702 WASHER V 5X10X1 2 858FC-100-860 221H0317
81 4111416705 WASHER SPR 5 10 858FC-100-861 221H0287
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FC-1
FC-1 list-1
MODEL GXH-3JPH
0712-002
155
159
162
158
161
160
157
157
See Fig. FC-1
Key No.62
See Fig. FC-1
Key No.63
U91
U94
U92
U95
X9101
X19401
X29401
X39401
X49401
X2405
X2405
X9504
X9505
X9102
X9401
X9202
X6101
X6101
X13601
X13601
X9201
X6702
X6802
X9510
X9511
X9502
AC200V
X9104
X9103
X7309
X7202
認識
PC
部
RECOGNITION PC SECTION
Fig. FC-2
ケーブル
Cable
FC-2 illust-1
