MODEL GXH-3JPH
0909-003
SA-1 illust-1
標準付属品
STANDARD ACCESSORIES
Fig. SA-1
治具及びスペアパーツ
Jig and Spare Parts
6
7
15
52
54
51
5655
5857
5
1 2 4
16
21 22
20
17 18 19
3
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
SA-1 list-1
SA-1
1 6301274454 PLATE 2 858SA-100-001 211D9639
2 6301266015 ROD 10 858SA-100-002 216C0722
3 6301664439 ASSY,TOOL,HAND 2 858SA-100-003 028A0017
4 6301292946 ASSY,NOZZLE(HA09) 2 858SA-100-004 HA09----
5 6301269252 AIR LINE EQPT 144 858SA-100-005 225B0508
6 6301094243 MECH PARTS 5 858SA-100-006 226J1560
7 6301620381 ASSY,BLOCK 2 858SA-100-007 011G0064
15 6301332529 ROD 1 858SA-100-015 216C0787
16 6300622577 TOOL,HAND(HAND GREESEGUN) 1 858SA-100-016 228A0022
17 6301333793 TOOL,HAND(SYRINGE) 4 858SA-100-017 228A0171
18 6300622607 NOZZLE 2 858SA-100-018 216M0451
19 6300622621 NOZZLE 2 858SA-100-019 216M0453
20 6301373669 BRACKET 1 858SA-100-020 211F9768
21 6301376028 SEAL 6 858SA-100-021 226A0256
22 6301381541 ASSY,BLOCK(JIG) 1 858SA-100-022 011G0041
51 4230252109 FUSE 250V 6.3A 1 858SA-100-151 4S300024
52 4230228302 FUSE 250V 5A 1 858SA-100-152 4S300023
54 4230228104 FUSE 250V 2A 1 858SA-100-154 4S300025
55 6301231303 FUSE,SPECIAL 1 858SA-100-155 4S300006
56 6300619737 MECH PARTS (PADLOCK) 2 858SA-100-156 226J0574
57 6301596235 FUSE,SPECIAL 1 858SA-100-157 4S300009
58 6301596242 FUSE,SPECIAL 1 858SA-100-158 4S300010
MODEL GXH-3JPH
0909-003
SA-2 illust-1
標準付属品
STANDARD ACCESSORIES
Fig. SA-2
選択部品
Optional Parts
Fig.ZS-2
4797L
TCM-X300
TCM-X200
4797A

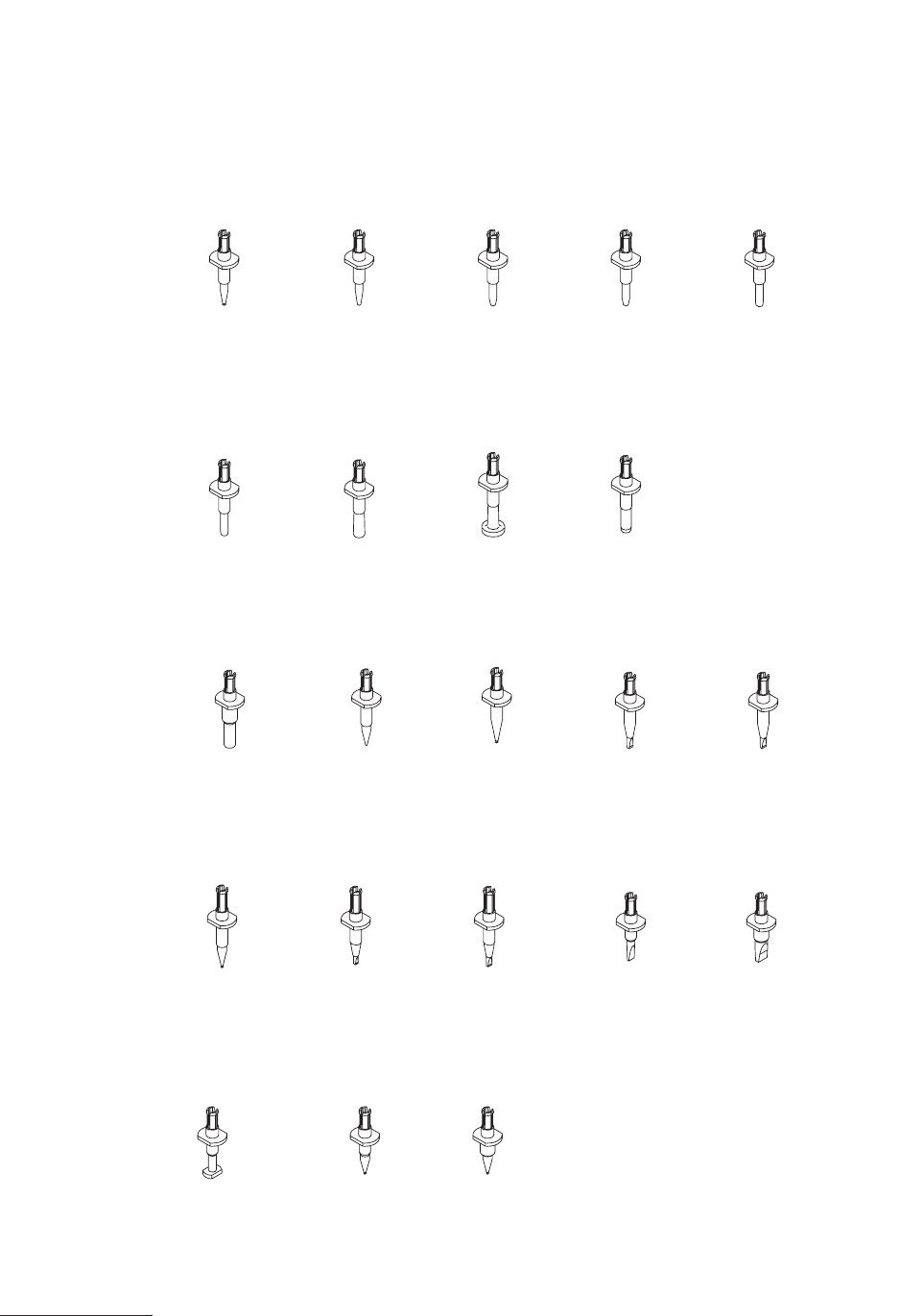

V ACUUM NOZZLE ( W ork Corresponding )
102 103 104 105
109
1
14 1
15
113
110
116 117
106
107 108
119 120 121
122 123
125 126124
