MODEL GXH-3JPH
0712-002
カバー部
COVER SECTION

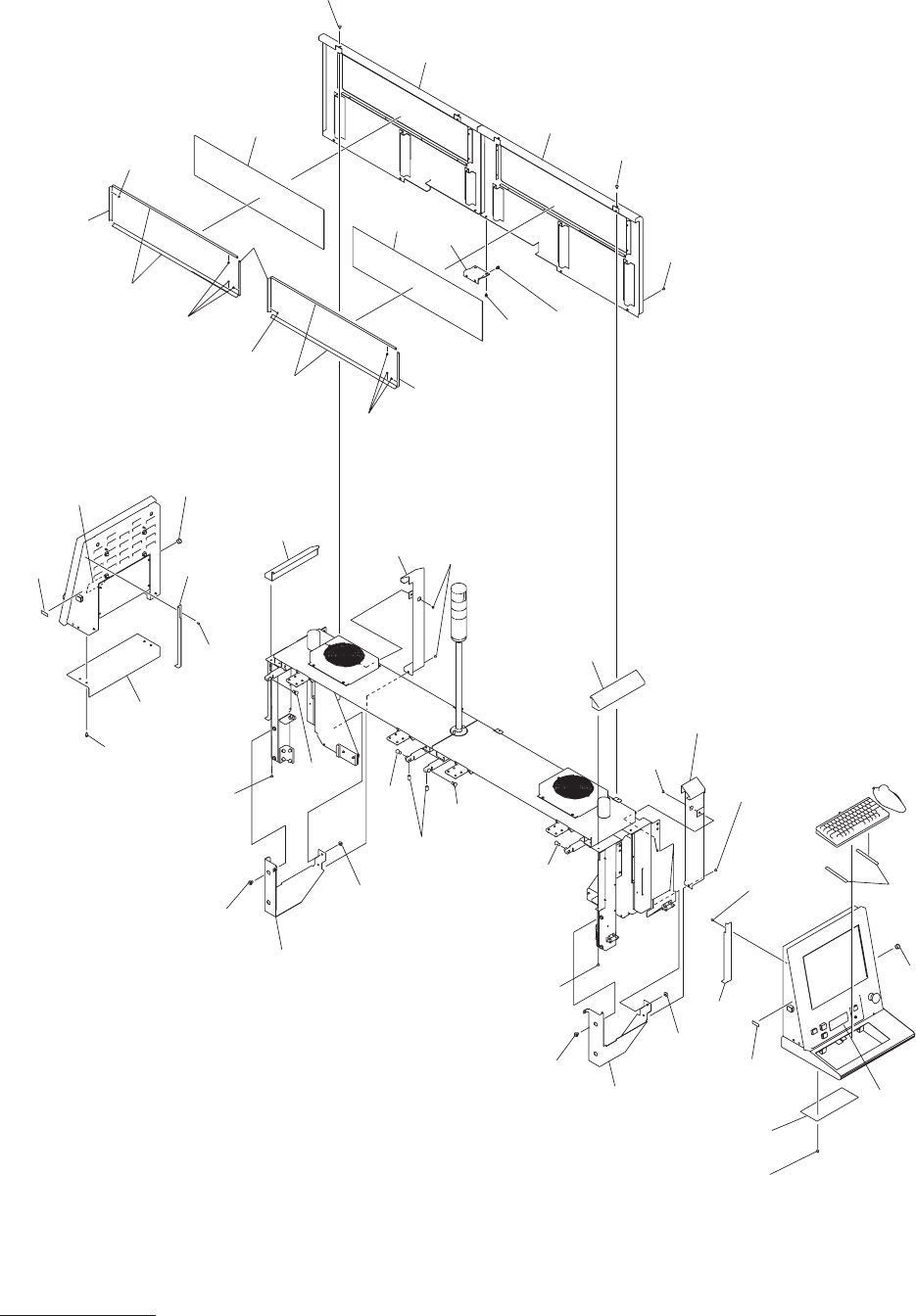

Fig. G-3
中央カバー
Center Cover
G-3 illust-1
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-3
G-3 list-1
207 6301592275 COVER 1 858G--100-007 211AC274
208 6301592282 COVER 1 858G--100-008 211AC275
211 6301623849 NAME PLATE,PARTS 2 858G--100-731 6P441841
212 6301578170 COVER 1 858G--100-742 211AC101
213 6301612362 BRACKET 1 858G--100-743 211FD045
214 6301578736 FRAME 2 858G--100-744 210B4191
215 6301581255 COVER 2 858G--100-745 211AC140
216 6301581262 SUPPORT 4 858G--100-746 211K3425
217 6301550688 SUPPORT 4 858G--100-747 211K3383
218 6301287812 ACCESSORY,WIRING 2 858G--100-748 23N30627
221 6301508740 PIN,HINGE 4 858G--100-021 216D0550
226 6301561578 PLATE 1 858G--100-306 211DC783
231 6301572390 NAME PLATE,PARTS 1 858G--100-411 6P441800
233 6301572406 NAME PLATE,PARTS 1 858G--100-413 6P441801
241 6301414249 MECH PARTS(URETHAN SHEET) 2 858G--100-501 226J2211
242 6301612072 COVER 1 858G--100-702 211AC583
243 6301612089 COVER 1 858G--100-703 211AC584
245 6301578088 COVER 1 858G--100-705 211AC099
246 6301578095 COVER 1 858G--100-706 211AC100
247 6301577593 COVER 1 858G--100-707 211AC091
248 6301577609 COVER 1 858G--100-708 211AC092
254 6300008883 SET SCREW 4 M3X4 SET 858G--100-034 221C0001
256 6300007510 BOLT,HEX-SCT 4 M3X8 858G--100-036 221A0006
257 4111412806 WASHER SPR 3 4 858G--100-037 221H0281
258 4111413902 WASHER V 3X7X0.5 4 858G--100-038 221H0312
265 4110511708 SCR TRS 4X6 4 858G--100-045 221E0532
266 6300007749 BOLT,HEX-SCT 2 M5X12 858G--100-826 221A0029
267 4111416705 WASHER SPR 5 2 858G--100-827 221H0287
268 4111414107 WASHER V 5X10X1 2 858G--100-828 221H0318
269 6300010220 WASHER 4 BW5 858G--100-829 221H0005
272 6300007626 BOLT,HEX-SCT 2 M4X10 858G--100-802 221A0017
273 4111412905 WASHER SPR 4 4 858G--100-803 221H0284
278 4110511708 SCR TRS 4X6 4 858G--100-808 221E0532
279 6300007619 BOLT,HEX-SCT 2 M4X8 858G--100-809 221A0016
286 4111408007 SCR TRS 5X6 8 858G--100-816 221E0536
287 4111147005 SCR PAN+SW+W 3X8 24 858G--100-817 221D0242
291 4111139109 SCR TRS 5X10 4 858G--100-821 221E0534
292 6300139860 BOLT,HEX-SCT 8 M4X8 858G--100-822 221A0158
MODEL GXH-3JPH
0712-002
カバー部
COVER SECTION

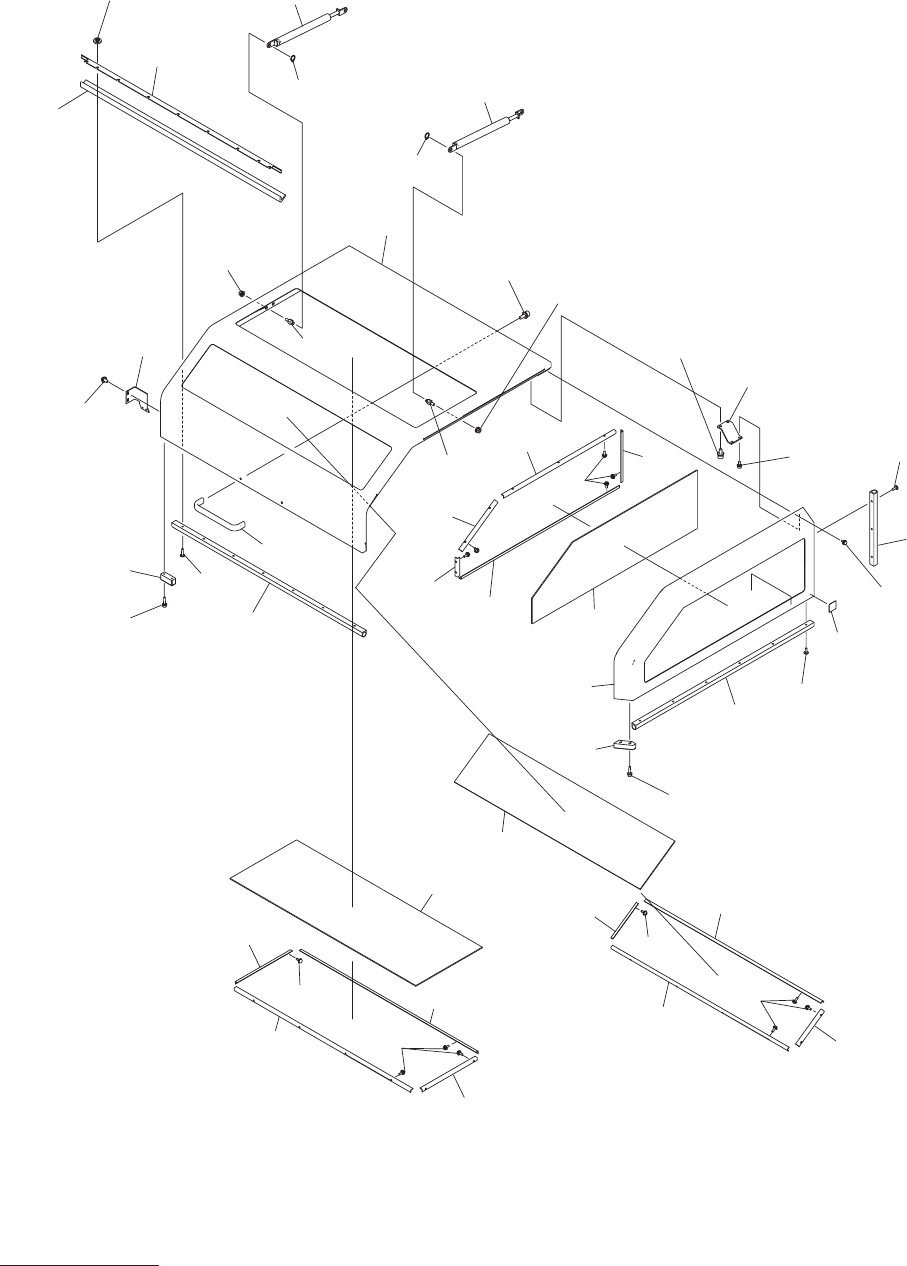

Fig. G-4
開閉扉
B Open-Close Door B
G-4 illust-1
