1 Installation

1-5

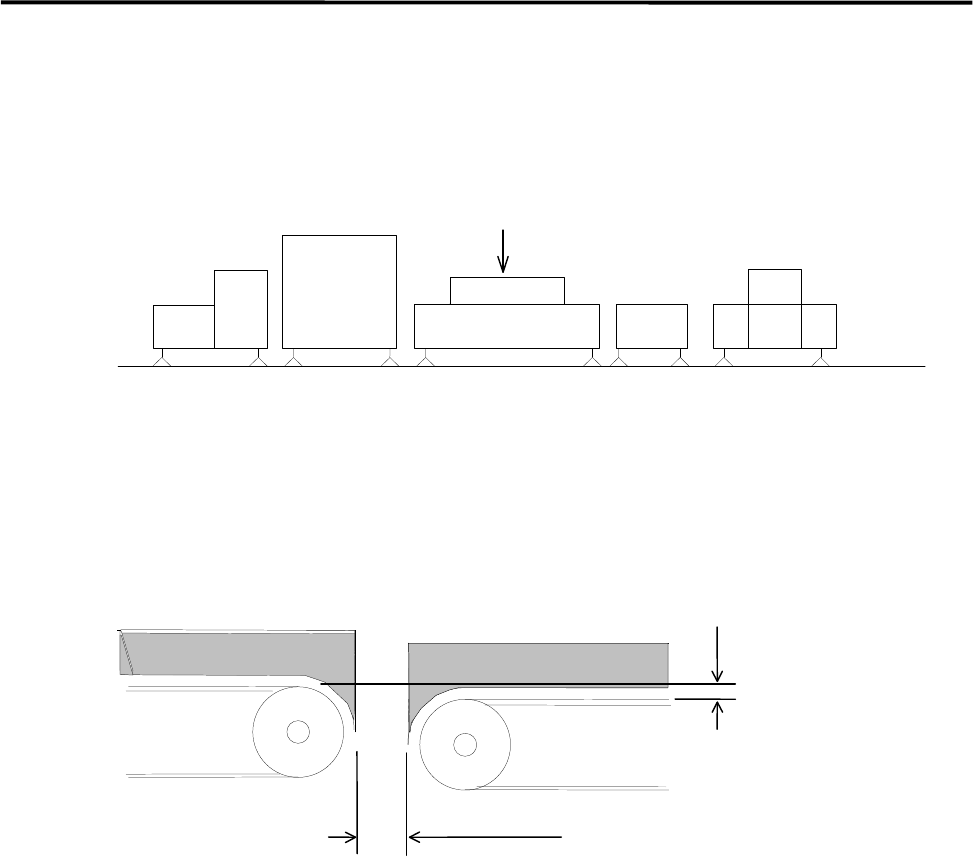

Production Line

To align your assembly line, first install the heaviest unit. Then install peripheral units using the first unit as

a reference.

Reference

Loader　　　　Mounter　　　　　Reflow Oven　　　Conveyor Unloader

To transfer the PCB (printed circuit board) smoothly, clearance between units are quite important. Be sure

that the clearance between units is approximately 5 mm as below figure shows. Adjust the height of the

downstream unit a little lower (0-0.5 mm) so that the PCB is transferred smoothly.

0 - 0.5mm

Approx. 5mm

DownstreamUpstream

側

1 Installation

1-6

Installing the Machine

Do not touch terminals of electric components when the power is on to prevent electric shock and machine

damage.

Make sure to ground the machine to prevent electric shock.

Note on Installation

It is normal that the adjust foot can be slightly inclined (within 2-degree range).

Do not tighten the bolt forcedly trying to fix the foot.

When you move and/or install the mounter, be careful not to apply excessive

force on the adjust foot. This may cause the screw of the adjust foot to break.

When placing the mounter on the floor, be sure that the mounter is kept

horizontal.

Warning

2°

If excessive force is

applied, the screw may

break at this point.

Mounting Screw

1 Installation

1-7

ACTION:

① Locate the machine to the specified place.

② Turn the adjust feet so that the PCB transfer height is the same as the conveyor height (900±20mm

(see Note)) of the reference equipment. In the case of SMEMA interface spec, the height must be 950

±20mm.

900+/-20mm

950+/-20mm(SMEMA)

NOTE: The height must be 890 to 920mm in the case of CFB wagon spec.

NOTE: The adjust feet must be turned using a M30 single-head wrench (nominal: 46mm).

③ Place a level on the conveyor and adjust the height so that the machine is level lengthwise and

crosswise.

Level
