3 Mechanical Section
3-22

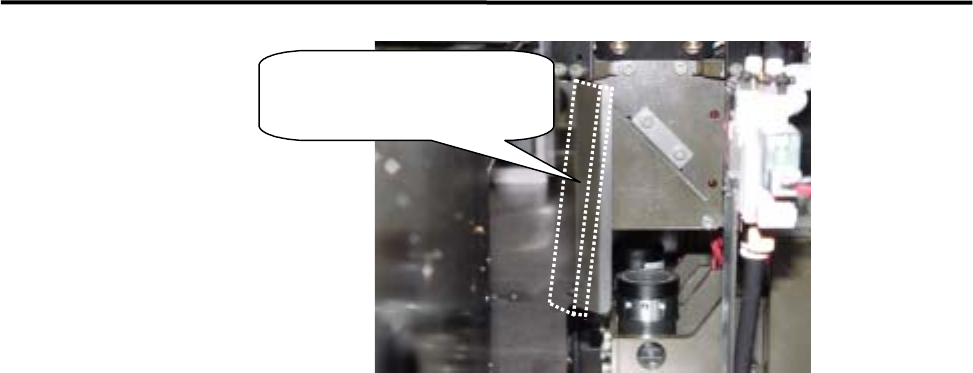

Take care not to set the front
cover in inclined way.
Cleaning of Teach Camera
The lens of teach camera faces downward, and usually it would not get any dirt/dust under the normal
operation. However, if it gets dirty, blow air using blower brush from the bottom of the teach camera in
order to remove the dust.
3 Mechanical Section
3-23
Lubrication
Lubrication Points
Lubricate the specified portions listed below with cotton swab soaked with lubricant.
UNIT PORTION LUBRICANT FREQ.
Ball Screw of X-axis Grease Every two weeks
LM Guide of X-axis (Upper and Lower) Grease Every two weeks
Ball Screw of Y-axis (Right and Left) Grease Every two weeks
LM Guide of Y-axis (Right and Left) Grease Every two weeks
Feeder Bank Plates Grease Every two weeks
Conveyor Width Adjusting Screw Grease Monthly
M4a/M4e/M4s
Conveyor Guide Shaft Grease Monthly
Ball Screw of Z-axis Grease Every two weeks
Spline Shaft Grease Every two weeks
Z-axis linear guide Grease Every two weeks
Ball Screw of S-axis Grease Every two weeks
LM Guide of S-axis Grease Every two weeks
Nozzle Holder Silicone Grease Monthly
Nozzle (Outer part/Sanction pad) Silicone Grease Weekly
MX-20 Ball Screw Grease Monthly
(M4e/M4s OPTION) Slide Pack Grease Monthly
Slide Pack (Shuttle Unit) Grease Monthly
MXR-20 Ball Screw Grease Monthly
(M4e/M4s OPTION) Linear Shaft Grease Monthly
MX-ST2 Shaft Grease Monthly
(M4e/M4s OPTION) Parallel Pin Grease Monthly
Downside of cap Grease Monthly
Contact part of shaft and cap Grease Monthly
Contact part of shaft and bracket Grease Monthly
NOTE: Do not apply excessive oil/grease. This may cause oil/grease scattering when the mounter is in operation.
NOTE: Tray Unit (MX-20, MXR-20, MX-ST2) are optional for M4e/M4s only. They are not optional for M4a.
3 Mechanical Section
3-24

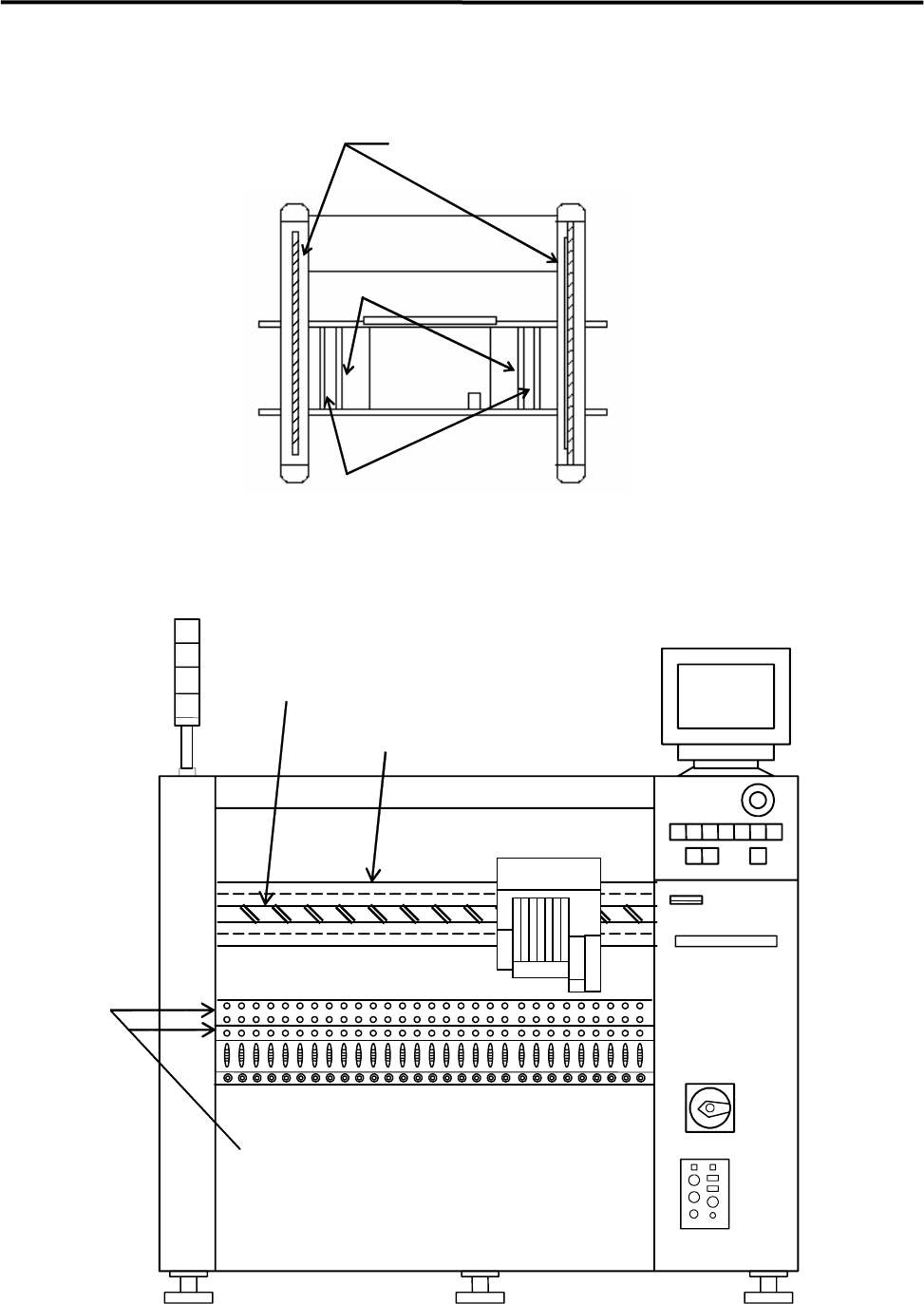

■ Lubrication Points for X/Y-axis, Conveyor, Feeder bank plates
Y axis linear guide
Y axis ball screw
Conveyor adjusting screw
Conveyor guide shaft
X axis ball screw
X axis linear guide
Feeder bank plates
