3 Mechanical Section 3-32 ■ Lubrication Points for MX-20 (M 4e/M4s Option)

3 Mechanical Section

3-31

■ Application of grease on a Nozzle Holder

【Steps】

① Rub the inside of the Nozzle Holder with materials like a dry cotton swab to clean out the grime, such

as old grease.

② Use the head vacuum breaker to blow out the dust, such as fibers from a cotton swab.

NOTE: The head vacuum breaker can be executed by clicking the button at required head on the window of Main

Menu > Manual Menu > Actuator > On/Off > Head Vacuum.

③ Apply silicon grease evenly on the new cotton swab and rub the inside of the Nozzle Holder softly and

evenly with it.

④ After grease is applied, insert a nozzle and confirm that the nozzle escaping works smoothly.

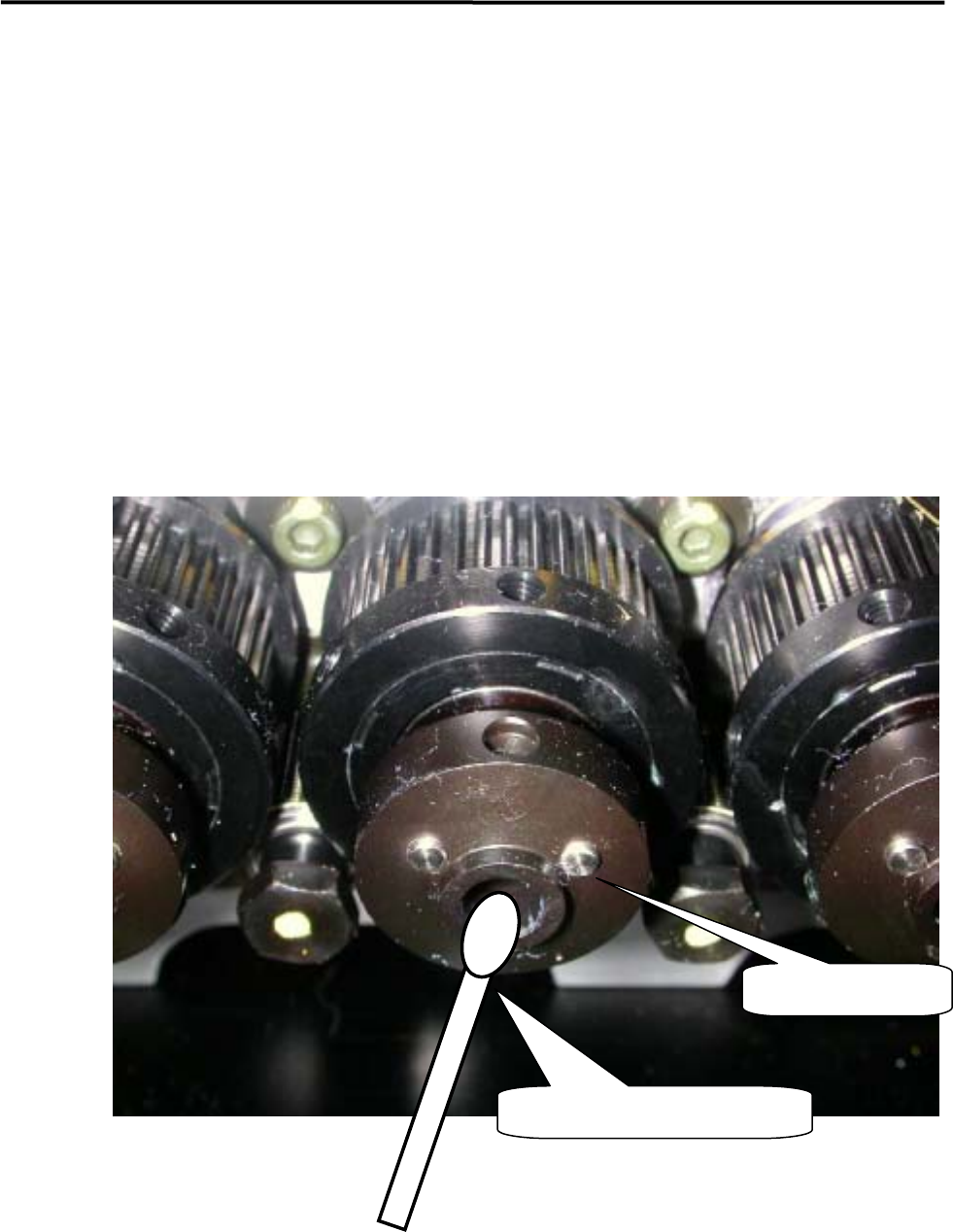

Nozzle Holder

Such as a cotton swab

3 Mechanical Section

3-32

■ Lubrication Points for MX-20 (M4e/M4s Option)

3 Mechanical Section

3-33

■ Lubrication Points for MXR-20 (M4e/M4s Option)

Linear Shaft

Ball Screw
