3 Mechanical Section 3-33 ■ Lubrication Points for MXR -20 (M4e/M4s Option) Linear S haft Ball Screw
3 Mechanical Section
3-32

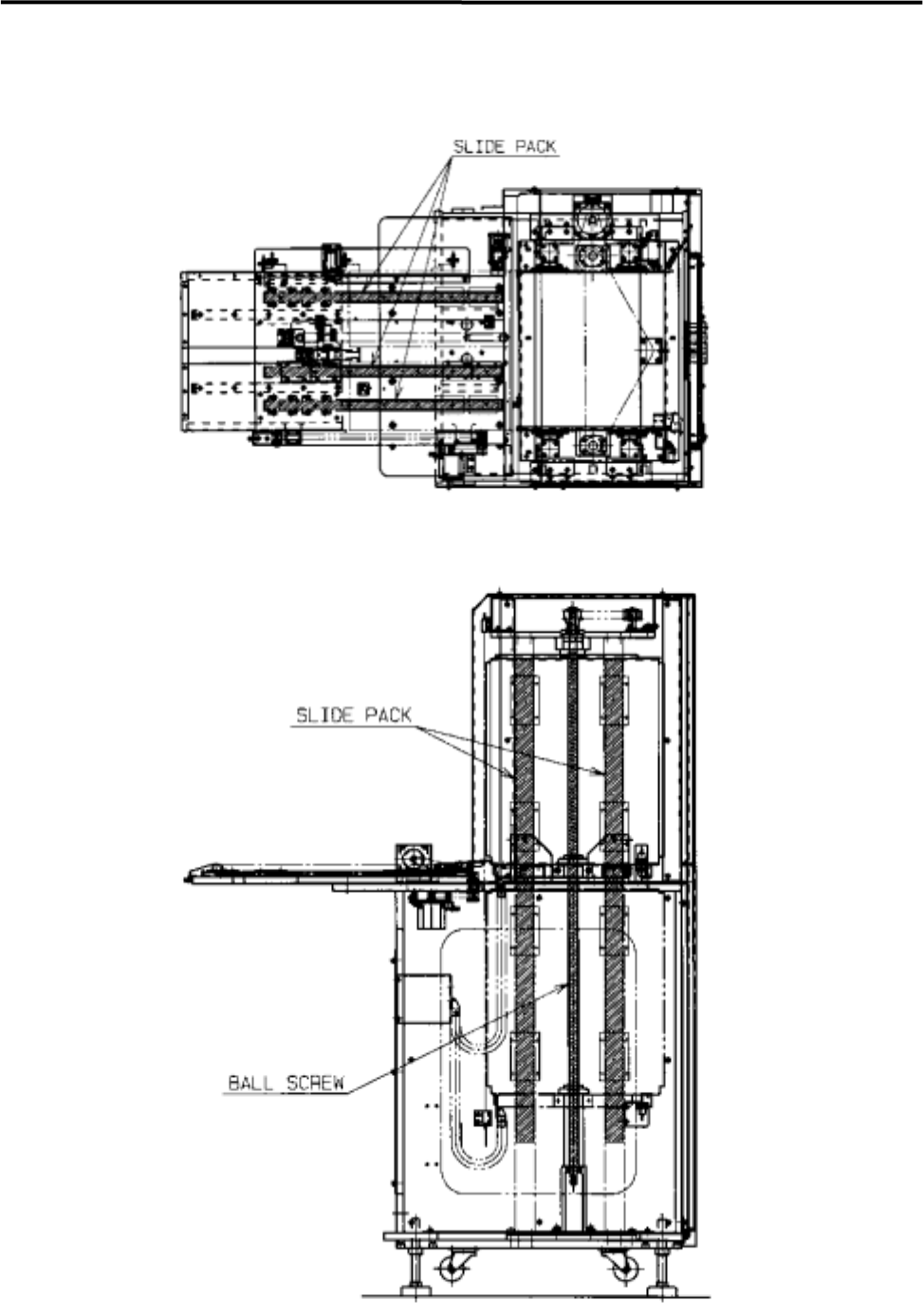

■ Lubrication Points for MX-20 (M4e/M4s Option)
3 Mechanical Section
3-33
■ Lubrication Points for MXR-20 (M4e/M4s Option)
Linear Shaft
Ball Screw
3 Mechanical Section
3-34

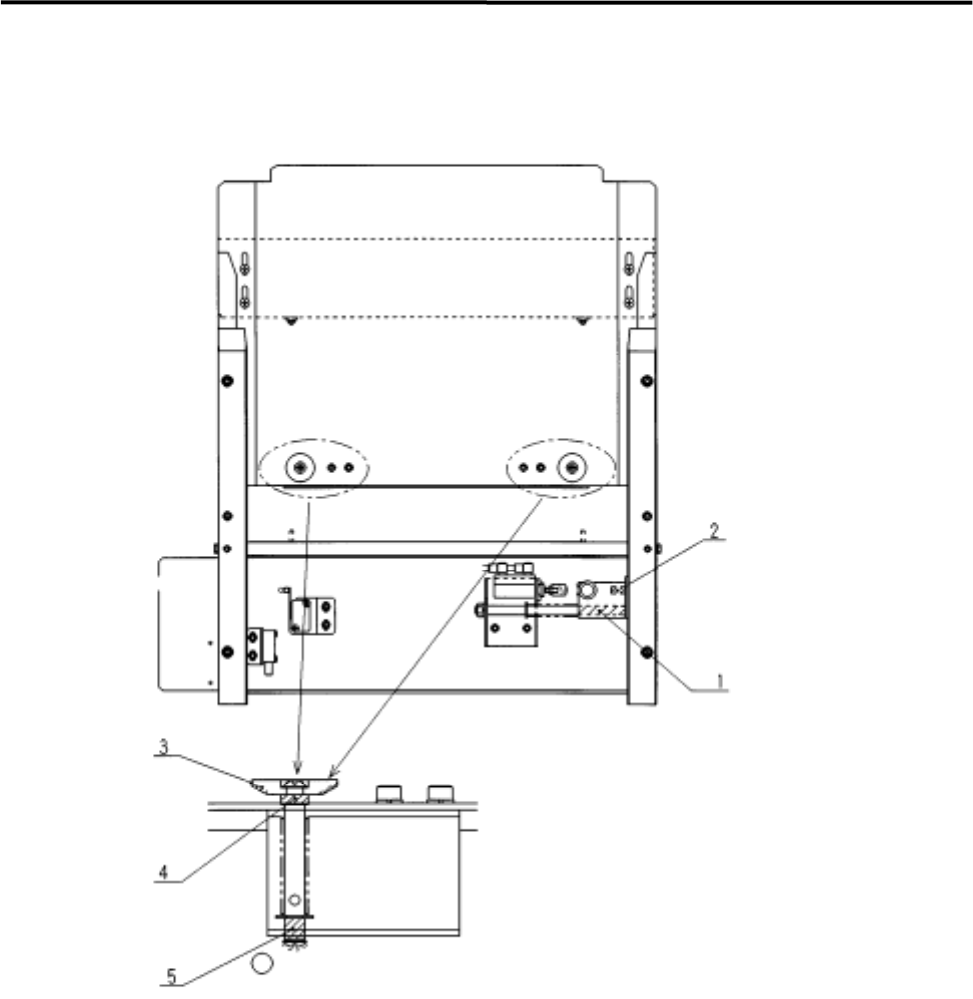

■ Lubrication Points for MX-ST2 (M4e/M4s Option)
1. Shaft A
2. Parallel Pin
3. Downside of cap (2 places)
4. Contact part of shaft and cap (2 places)
5. Contact part of shaft and bracket (2 places)
