Component feeding

Alternative SIPLACE modules

SIPLACE MeasuringFeeder X

Description

The SIPLACE

MeasuringFeeder X is used

to prevent placement of

incorrect components by ver-

ifying the electrical values of

configured components. This

supports identification of

setup errors, such as mixed

up component tapes, incor-

rectly labeled component

reels or reels with counter-

feit, non-functional compo-

nents.

The SIPLACE

MeasuringFeeder X does

not feed in components itself

but instead measures com-

ponents which are already

on the changeover table, in

conventional tape feeder

modules. All components for

which an electrical value has

been stored in SIPLACE Pro

are picked up by the place-

ment head and the relevant

values are determined via

two contacts in SIPLACE

MeasuringFeeder X.

The SIPLACE

MeasuringFeeder X can

measure capacitors, resis-

tors and inductors, plus

diodes.

It can measure two-pin com-

ponents, which have contact

surfaces on the underside of

the component and a size of

at least (L x W)

0.6mmx0.3mm to

6 mm x 3.2 mm. It deter-

mines the capacity of capac-

itors, the electrical resistance

of resistors and the inductiv-

ity of inductors. It also checks

the blocking direction of

diodes and thereby the polar-

ity.

Measurable value range of components:

Component type Measuring range Measuring tolerance

Capacitors 1 pF - 100µF (standard)

100 nF - 500µF (polarized)

± 5%

Resistors 100 mOhm- 1MOhm ± 5%

Diodes Forward voltage 0.2 - 4 V Polarity check

Inductors 1µH - 1mH ± 15%

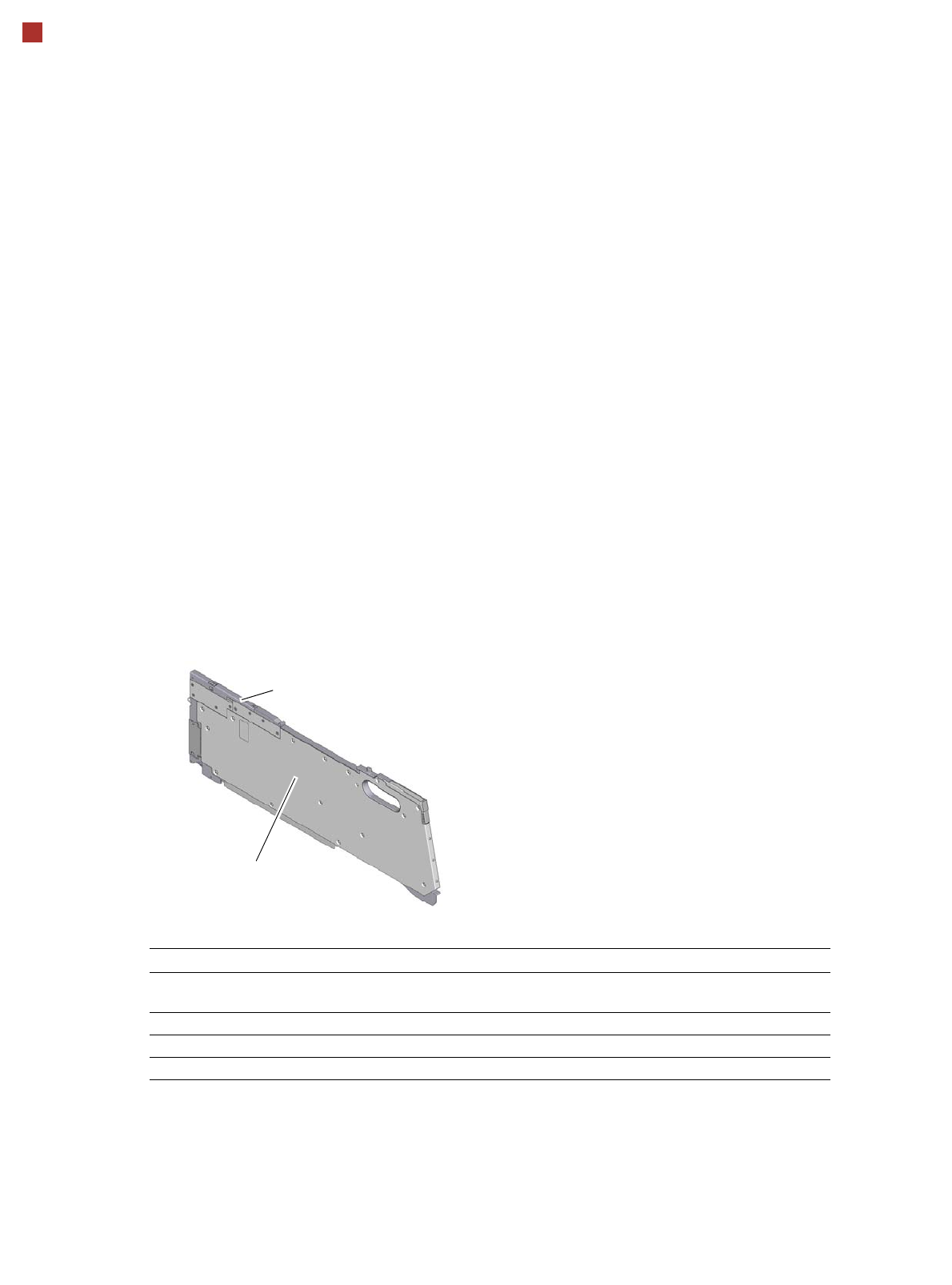

SIPLACE MeasuringFeeder X

Contact module

Component feeding

Tray holders

Technical data for waffle pack tray SIPLACE X

Dimensions LxWxH 429 x 376 x 200 mm³

Locations occupied on the

SIPLACE X component trolley

Positioning options on X-Series S

placement machines

Locations 2 and/or 4

Placement head range TwinStar, MultiStar

Max. waffle pack tray height

including components

MultiStar

TwinStar

16 mm

30 mm

Tray holder SIPLACE X

Component feeding

Matrix Tray Changer (MTC)

If you need to provide com-

ponents in multiple waffle

pack tray for the placement

process, we recommend

using an automatic maga-

zine changeover with the

help of an Matrix Tray

Changer (MTC).

In SIPLACE X2 S / X3 S /

X4 S machines, an MTC can

be docked onto location 2 in

place of the component

trolley. The service flap in

the machine protection of

the SIPLACE X2 S / X3 S /

X4 S placement machine

provides access to the front

section of the feed axis.

The MTC setup is coordi-

nated to the exact placement

sequence to achieve a path-

optimized and time-opti-

mized working process. Two

towers with waffle pack trays

move independently of one

another, in a vertical direc-

tion, until the required maga-

zine reaches the access area

of the feed axis. The horizon-

tal feed axis transports the

waffle pack tray from the

tower to the access area of

the placement head. The first

magazine is made available

as soon as a board is moved

into the PCB conveyor and

valid panel and setup data

has been provided.

All other magazine changes

are executed during the

placement process without

influencing the processing

time. JEDEC magazines can

be refilled without machine

stoppages. Faulty compo-

nents are placed back in the

original magazine.

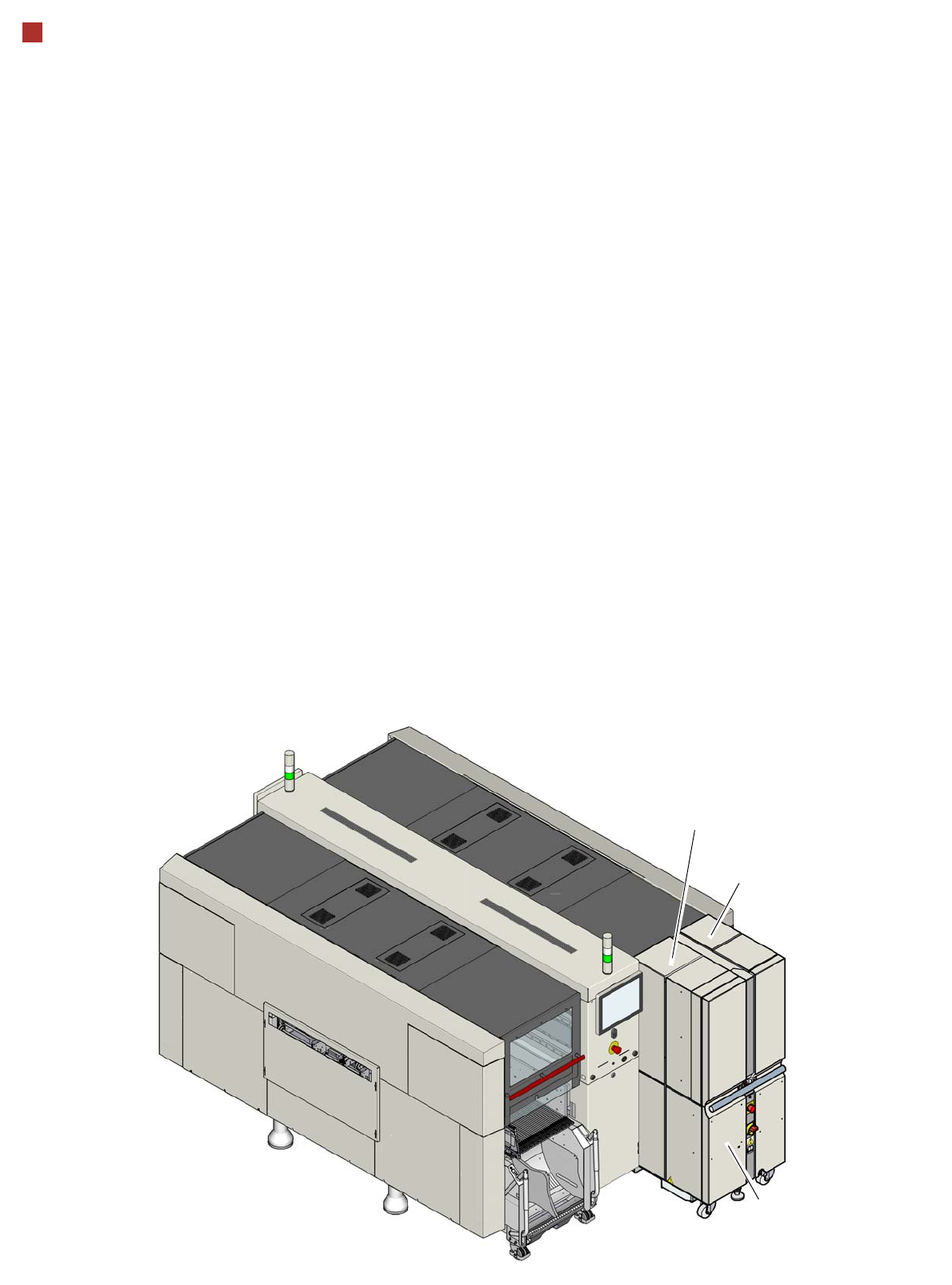

Tower 2

Tower 1

MTC
